3. ECM (ENGINE CONTROL MODULE) - 1.6D (SIRIUS D4)

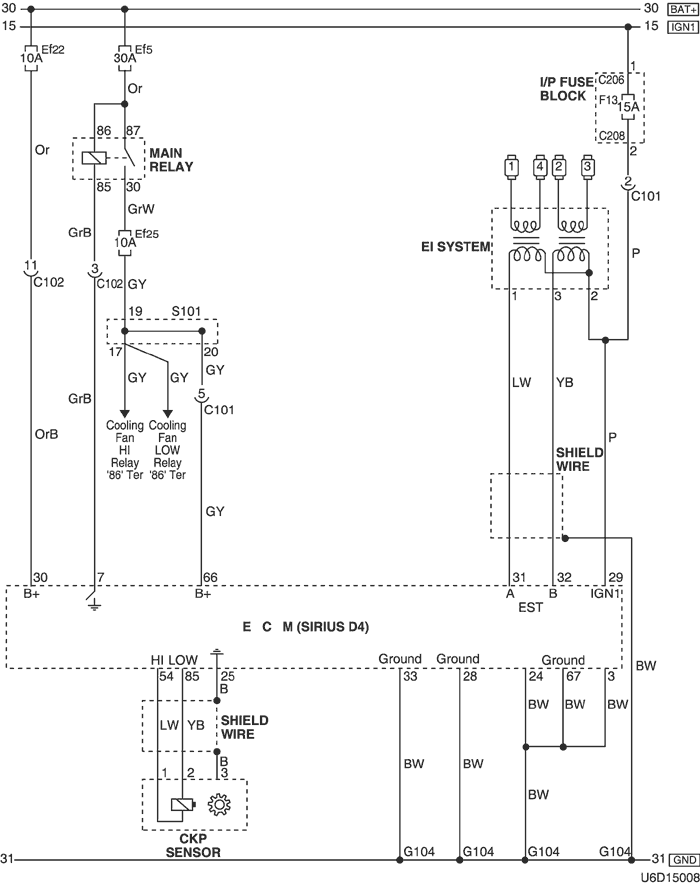

1) battery power supply, ground, ei system & ckp sensor circuit



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C102 (16 pin, Black) Engine – Front Behind the Left Headlamp
C103 (6 Pin, Gray) Front – Engine Under the Engine Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
S101 (White) Front Inside the Engine Fuse Block
G104 Engine Under the Intake Manifold

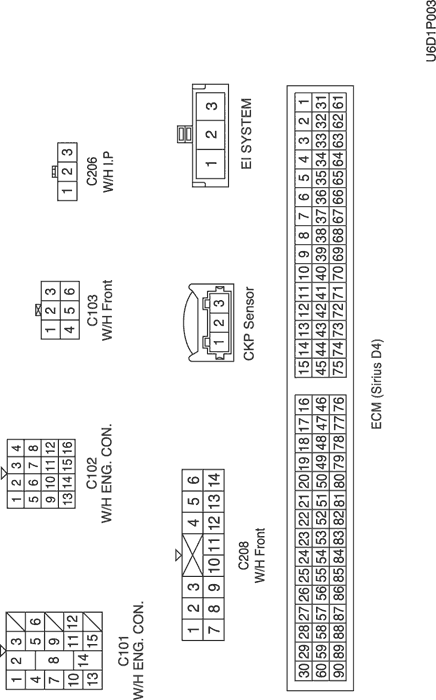

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS



d. SPLICE PACK

s101

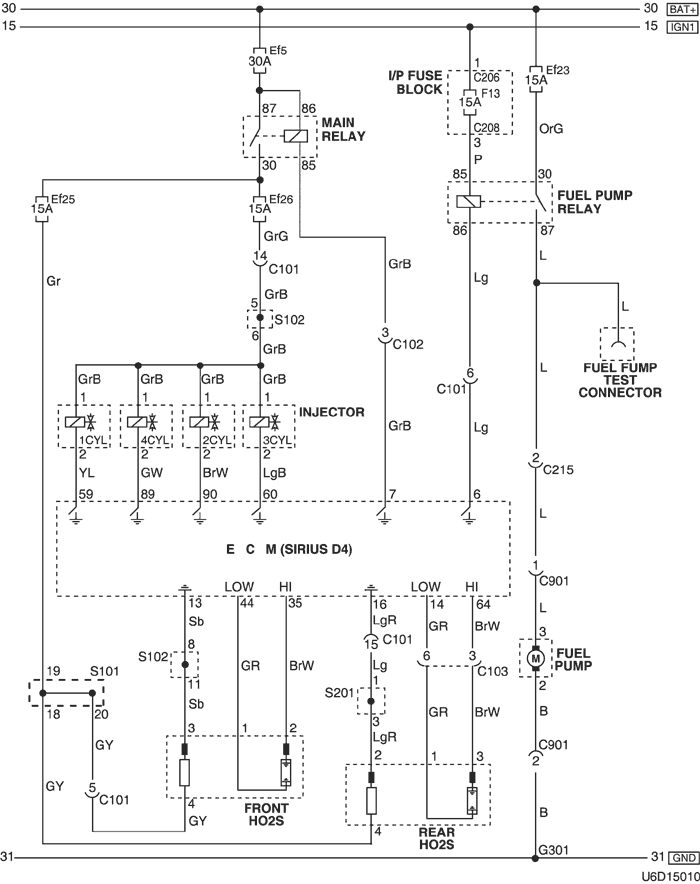

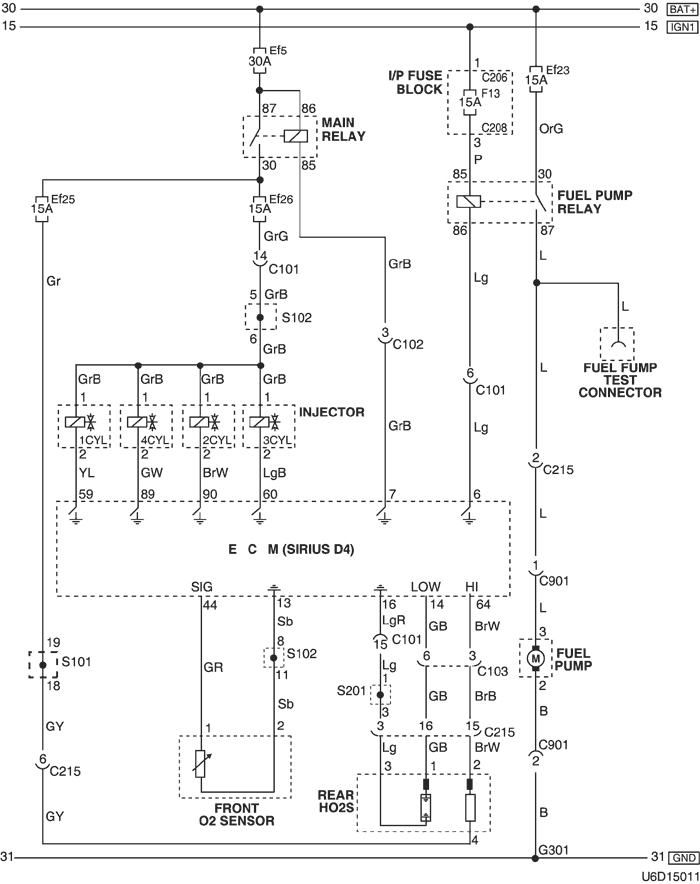

2) fuel pump, heated o2 sensor & injector circuit : euro iv



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C102 (16 pin, Black) Engine – Front Behind the Left Headlamp
C103 (6 Pin, Gray) Front – Engine Under the Engine Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C215 (16 Pin, White) Floor – Front Under the I/P Fuse Block
C901 (6 Pin, Black) Fuel Tank – Floor Behind the Fuel Tank
S101 (White) Front Inside the Engine Fuse Block
S102 (Black) Engine Rear Intake Manifold
S201 (Colorless) Front Left Upper the Driver Leg Room
G301 Floor Under the Driver Room Floor

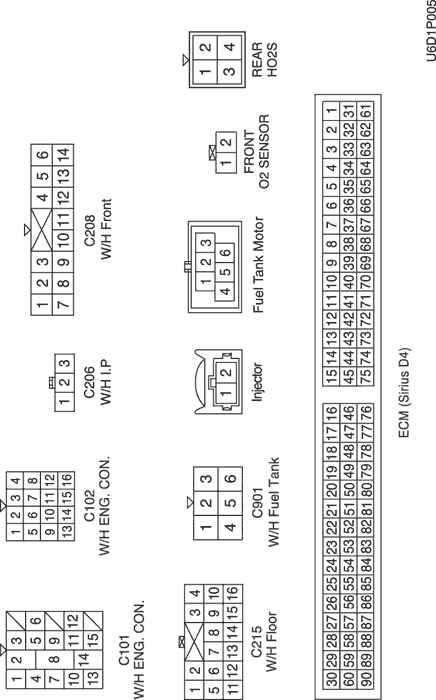

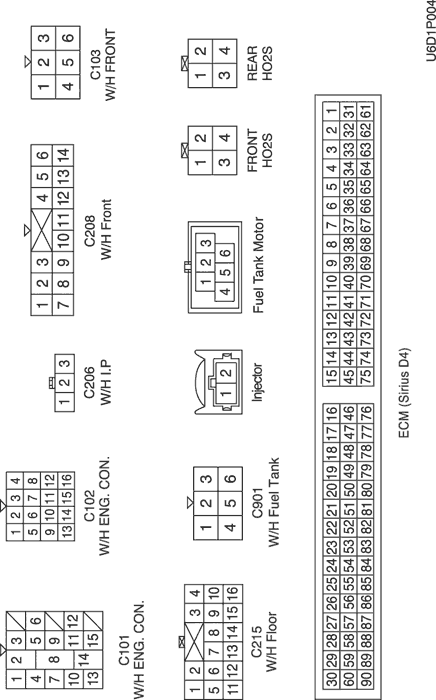

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS



d. SPLICE PACK

s101 (sirius d4)



s102 (sirius d4)



s201 (sirius d4)



3) fuel pump, o2 sensor & injector circuit : euro iii



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C102 (16 pin, Black) Engine – Front Behind the Left Headlamp
C103 (6 Pin, Gray) Front – Engine Under the Engine Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C215 (16 Pin, White) Floor – Front Under the I/P Fuse Block
C901 (6 Pin, Black) Fuel Tank – Floor Behind the Fuel Tank
S101 (White) Front Inside the Engine Fuse Block
S102 (Black) Engine Rear Intake Manifold
S201 (Colorless) Front Left Upper the Driver Leg Room
G301 Floor Under the Driver Room Floor

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS



d. SPLICE PACK

s101 (sirius d4)



s102 (sirius d4)



s201 (sirius d4)

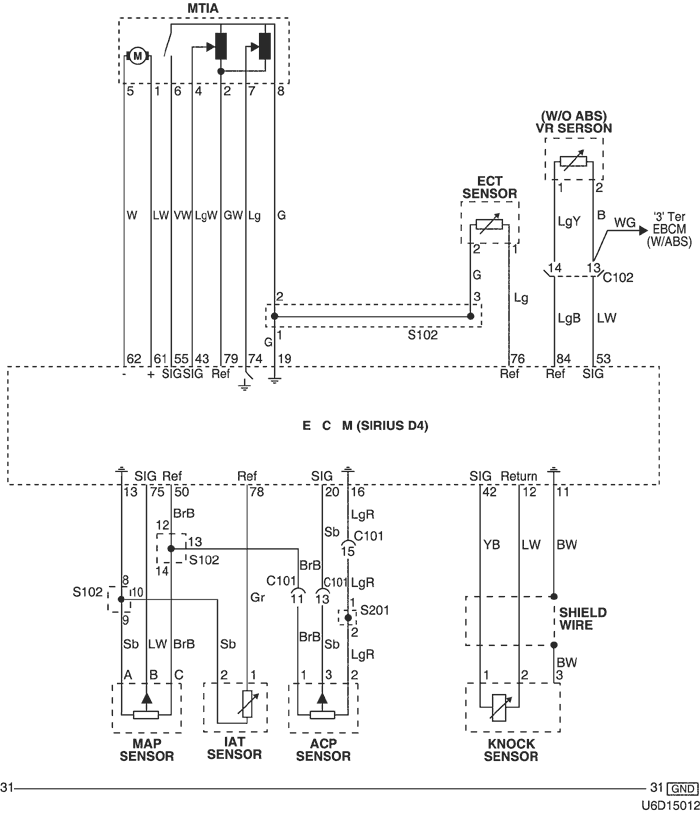

4) mtia & sensor (vr, map, iat, acp, ect & knock) circuit



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C102 (16 pin, Black) Engine – Front Behind the Left Headlamp
S102 (Black) Engine Rear Intake Manifold
S201 (Colorless) Front Left Upper the Driver Leg Room

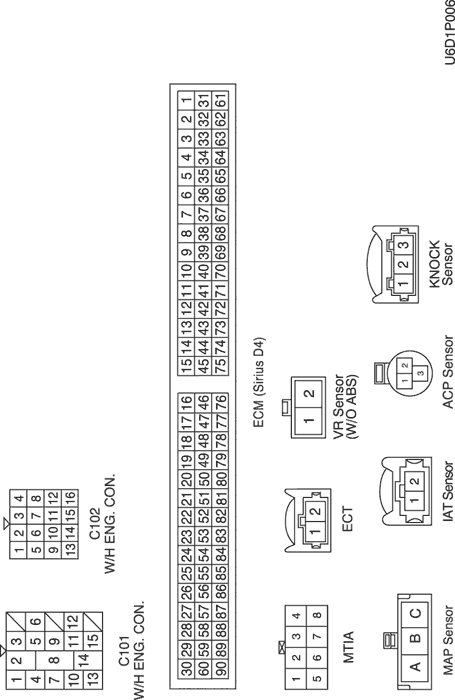

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS



d. SPLICE PACK

s102 (sirius d4)



s201 (sirius d4)

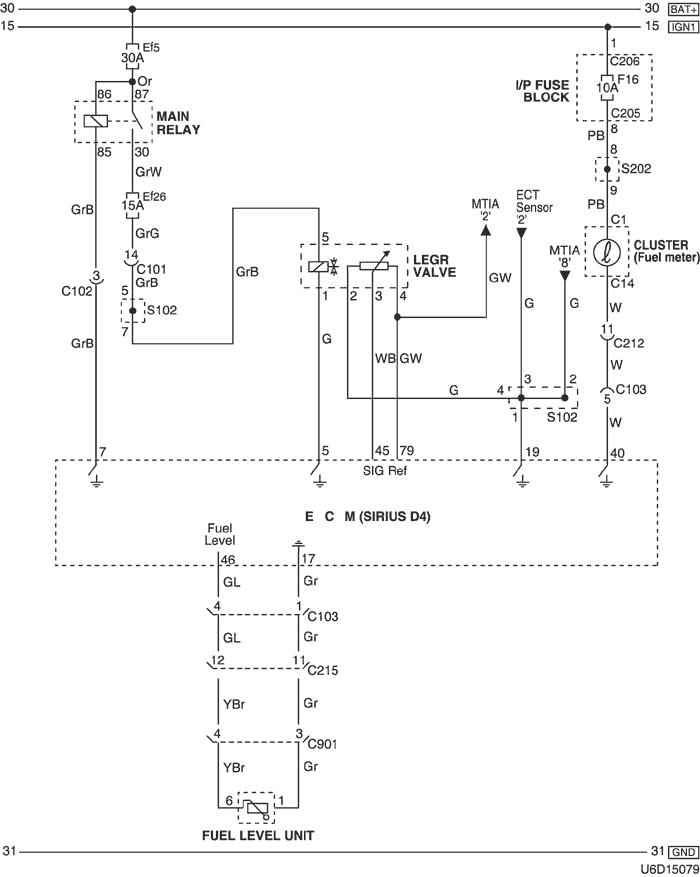

5) legr valve & fuel gauge circuit : euro iv



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C102 (16 pin, Black) Engine – Front Behind the Left Headlamp
C103 (6 Pin, Gray) Front – Engine Under the Engine Fuse Block
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C212 (18 Pin, Blue) Front – IP Left Upper the Driver Leg Room
C215 (16 Pin, White) Floor – Front Under the I/P Fuse Block
C901 (6 Pin, Black) Fuel Tank – Floor Behind the Fuel Tank
S102 (Black) Engine Rear Intake Manifold
S202 (Orange) IP Rear Right Instrument Panel

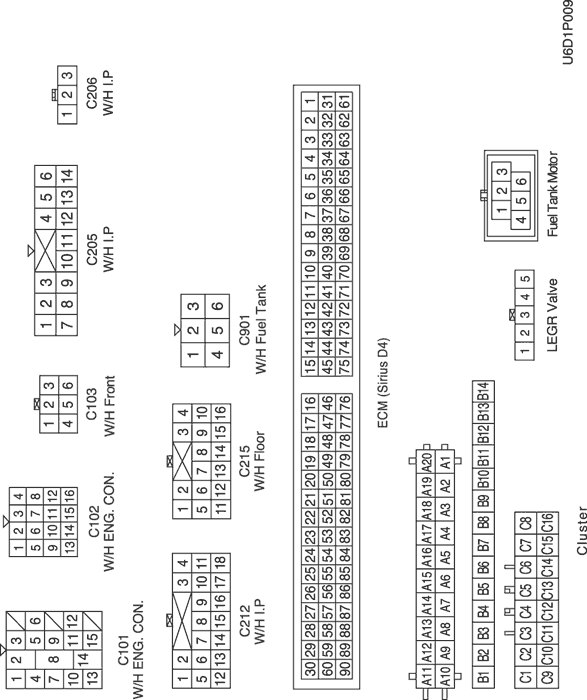

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS



d. SPLICE PACK

s102 (sirius d4)



s202

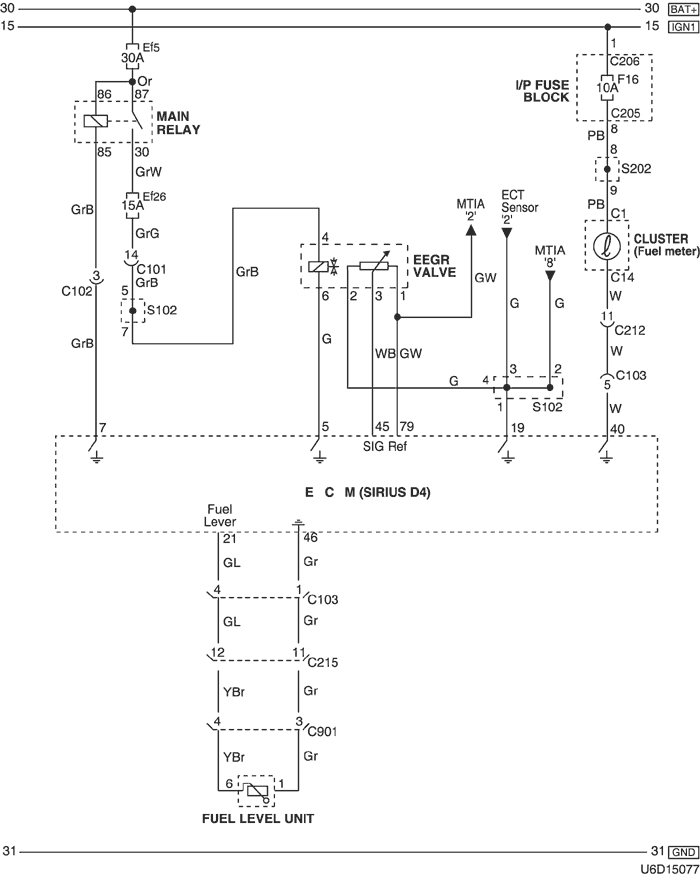

6) eegr valve & fuel gauge circuit : euro iii



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C102 (16 pin, Black) Engine – Front Behind the Left Headlamp
C103 (6 Pin, Gray) Front – Engine Under the Engine Fuse Block
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C212 (18 Pin, Blue) Front – IP Left Upper the Driver Leg Room
C215 (16 Pin, White) Floor – Front Under the I/P Fuse Block
C901 (6 Pin, Black) Fuel Tank – Floor Behind the Fuel Tank
S102 (Black) Engine Rear Intake Manifold
S202 (Orange) IP Rear Right Instrument Panel

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS



d. SPLICE PACK

s102 (sirius d4)



s202

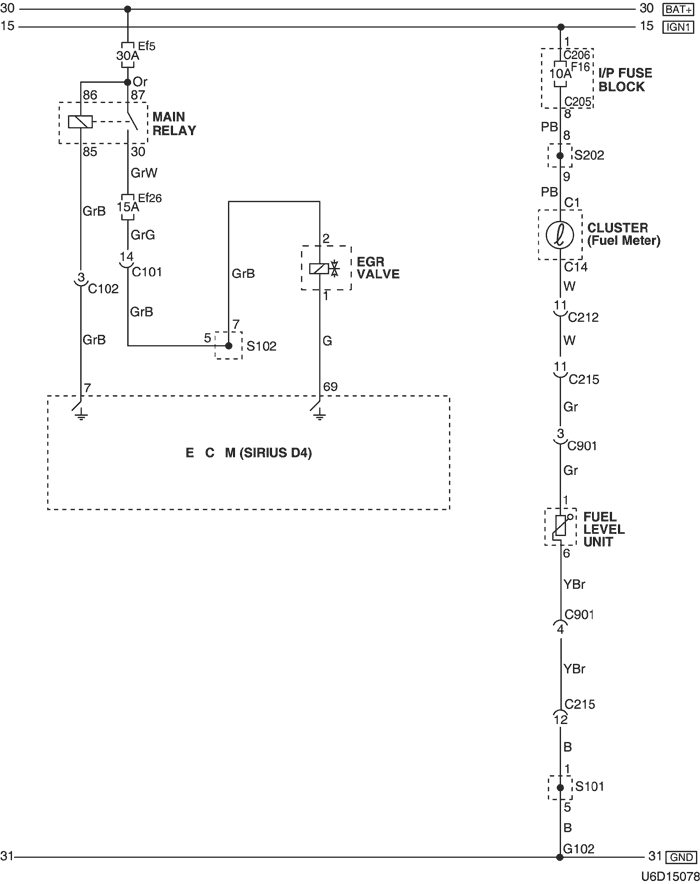

7) egr valve & fuel gauge circuit : non eobd



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C102 (16 pin, Black) Engine – Front Behind the Left Headlamp
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C212 (18 Pin, Blue) Front – IP Left Upper the Driver Leg Room
C215 (16 Pin, White) Floor – Front Under the I/P Fuse Block
C901 (6 Pin, Black) Fuel Tank – Floor Behind the Fuel Tank
S101 (White) Front Inside the Engine Fuse Block
S102 (Black) Engine Rear Intake Manifold
S202 (Orange) IP Rear Right Instrument Panel
G101 Battery Behind the Battery

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS



d. SPLICE PACK

s101



s102 (sirius d4)



s202



8) evap canister purge solenoid, vss & cmp sensor circuit



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C102 (16 pin, Black) Engine – Front Behind the Left Headlamp
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C214 (26 pin, Yellow) Front – IP Left Upper the Driver Leg Room
C219 (15 Pin, White) IP – FATC Upper the Evaporator Housing
S101 (White) Front Inside the Engine Fuse Block
S202 (Orange) IP Rear Right Instrument Panel
S206 (Violet) IP Rear Left Instrument Panel
G201 IP Rear Right Instrument Panel

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS





d. SPLICE PACK

s101



s202



s206



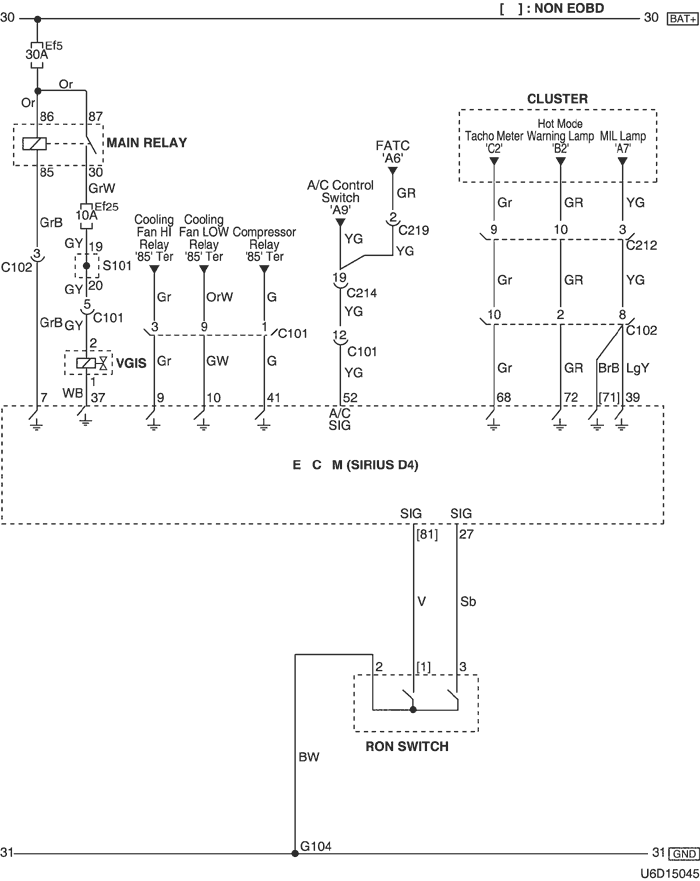

9) cluster, power steering pressure switch & ron switch circuit



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C102 (16 pin, Black) Engine – Front Behind the Left Headlamp
C212 (18 Pin, Blue) Front – IP Left Upper the Driver Leg Room
C214 (26 Pin, Yellow) Front – IP Left Upper the Driver Leg Room
C219 (15 Pin, White) IP – FATC Upper the Evaporator Housing
S101 (White) Front Inside the Engine Fuse Block
G104 Engine Under the Intake Manifold

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS





d. SPLICE PACK

s101

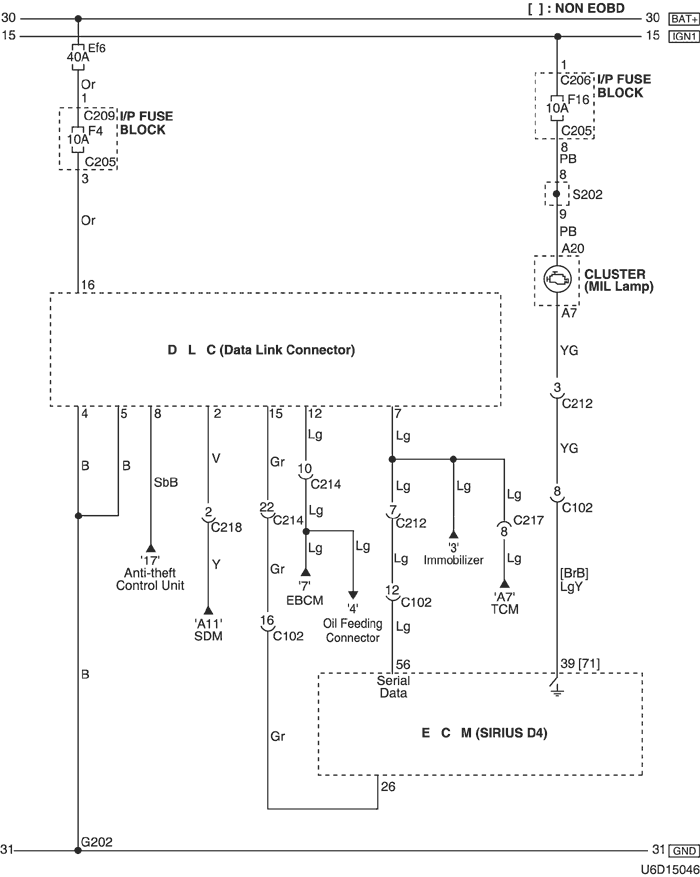

10) dlc (data link connector) circuit



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C102 (16 pin, Black) Engine – Front Behind the Left Headlamp
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C209 (1 Pin, Colorless) I/P Fuse Block – Front Behind the I/P Fuse Block
C212 (18 Pin, Blue) Front – IP Left Upper the Driver Leg Room
C214 (26 pin, Yellow) Front – IP Left Upper the Driver Leg Room
C217 (22 Pin, White) IP – TCM Center Upper the Driver Leg Room
C218 (4 Pin, White) Air Bag – IP Right Upper the Driver Leg Room
S202 (Orange) IP Rear Right Instrument Panel
G202 IP Rear Right Ashtray

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS





d. SPLICE PACK

s202
