2006 29. HEATING MAT CIRCUIT

Tacuma-Rezzo

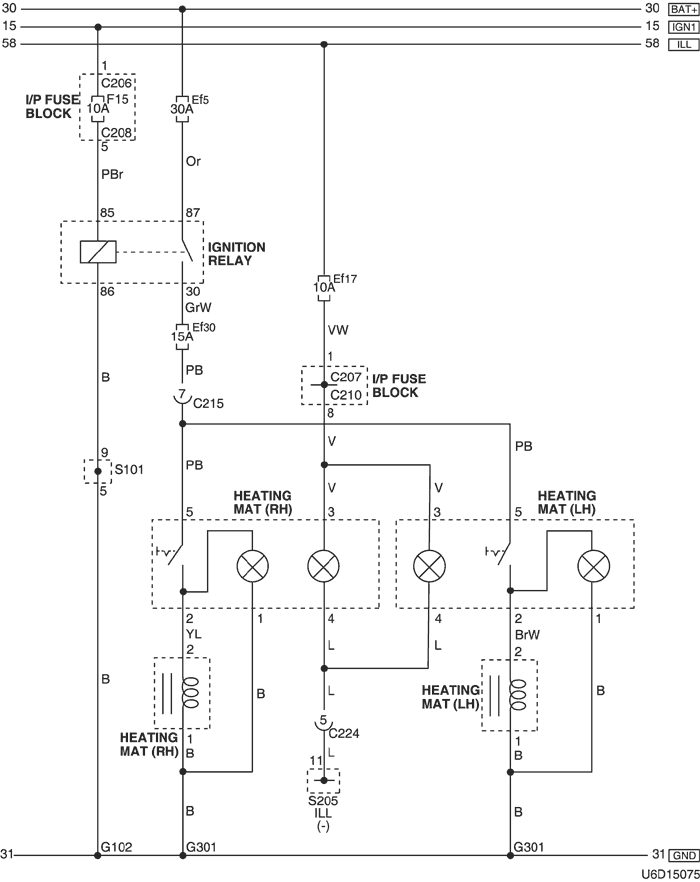

29. HEATING MAT CIRCUIT

1) mr-140 & itms-6f

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C206 (3 Pin, Brown)	I/P Fuse Block – IP	Front the I/P Fuse Block
C207 (22 Pin, White)	I/P Fuse Block – Front	Behind the I/P Fuse Block
C208 (14 Pin, White)	I/P Fuse Block – Front	Behind the I/P Fuse Block
C210 (18 Pin, White)	I/P Fuse Block – Floor	Behind the I/P Fuse Block
C215 (16 Pin, White)	Floor – Front	Under the I/P Fuse Block
C224 (14 Pin, White)	IP – Floor	Under the Door Lock Unit
S101 (White)	Front	Inside the Engine Fuse Block
S205 (Orange)	IP	Rear Center Instrument Panel
G102	Front	Behind the Left Headlamp
G301	Floor	Under the Driver Room Floor

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

d. SPLICE PACK

s101

s205

2) sirius d4

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C102 (16 Pin, Black)	Engine – Front	Behind the Left Headlamp
C207 (22 Pin, White)	I/P Fuse Block – Front	Behind the I/P Fuse Block
C210 (18 Pin, White)	I/P Fuse Block – Floor	Behind the I/P Fuse Block
C215 (16 Pin, White)	Floor – Front	Under the I/P Fuse Block
C224 (14 Pin, White)	IP – Floor	Under the Door Lock Unit
S205 (Orange)	IP	Rear Center Instrument Panel
G301	Floor	Under the Driver Room Floor

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

d. SPLICE PACK

s205
