Tacuma-Rezzo |
||||||||
|
|
|||||||

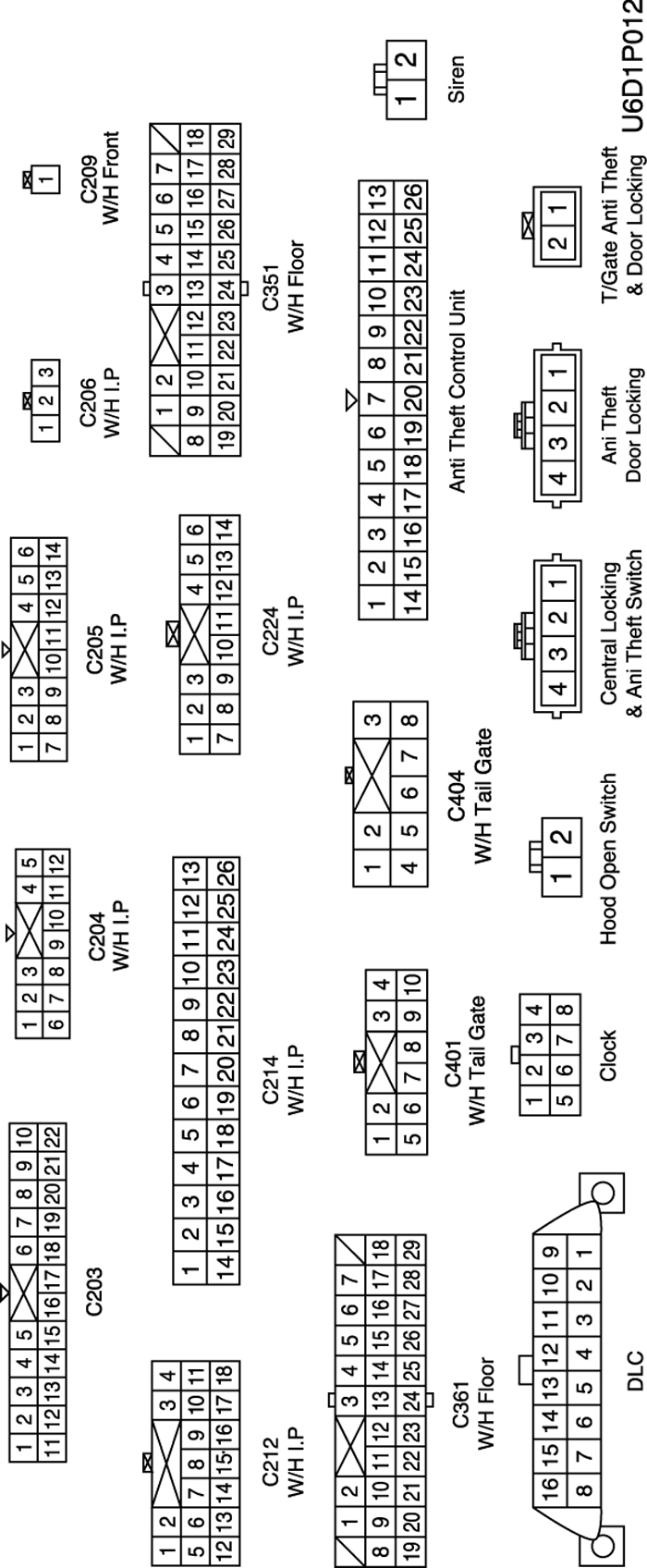

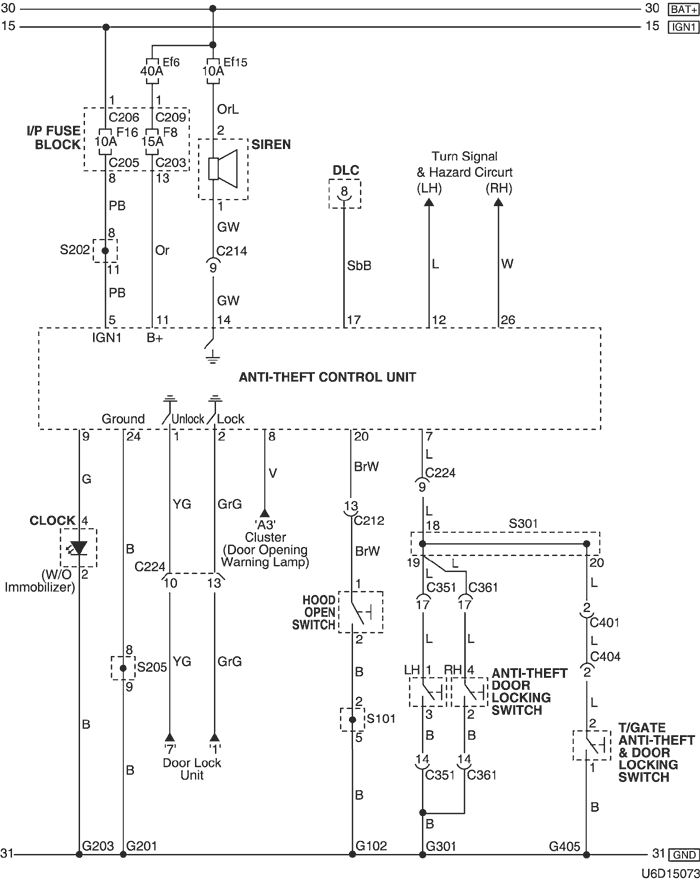

| connector no (pin no, color) |
connecting wiring harness | connector position |
| C203 (22 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C204 (12 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C205 (14 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C206 (3 Pin, Brown) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C209 (1 Pin, Colorless) | I/P Fuse Block – Front | Behind the I/P Fuse Block |
| C212 (18 Pin, Blue) | Front – IP | Left Upper the Driver Leg Room |
| C214 (26 Pin, Yellow) | Front – IP | Left Upper the Driver Leg Room |
| C224 (14 Pin, White) | IP – Floor | Under the Door Lock Unit |
| C351 (29 Pin, White) | Floor – Co-Driver Door | Inside Light 'A' Pillar |
| C361 (29 Pin, White) | Floor – Driver Door | Inside Right 'A' Pillar |
| C401 (10 Pin, White) | Tailgate – Floor | Behind the Rear Quarter Glass |
| C404 (8 Pin, White) | Tailgate – Tailgate, AUX | Left Under Tailgate Behind the Tail Lamp |
| S101 (White) | Front | Inside the Engine Fuse Block |
| S202 (Orange) | IP | Rear Right Instrument Panel |
| S205 (Orange) | IP | Rear Center Instrument Panel |
| S301 (Black) | Floor | Under the Driver Crossmember Panel |
| G102 | Front | Behind the Left Headlamp |
| G201 | IP | Rear Right Instrument Panel |
| G203 | IP | Under Right Ashtray |
| G301 | Floor | Under the Driver Room Floor |
| G405 | Tailgate, Aux | Under the Rear Wiper Motor |

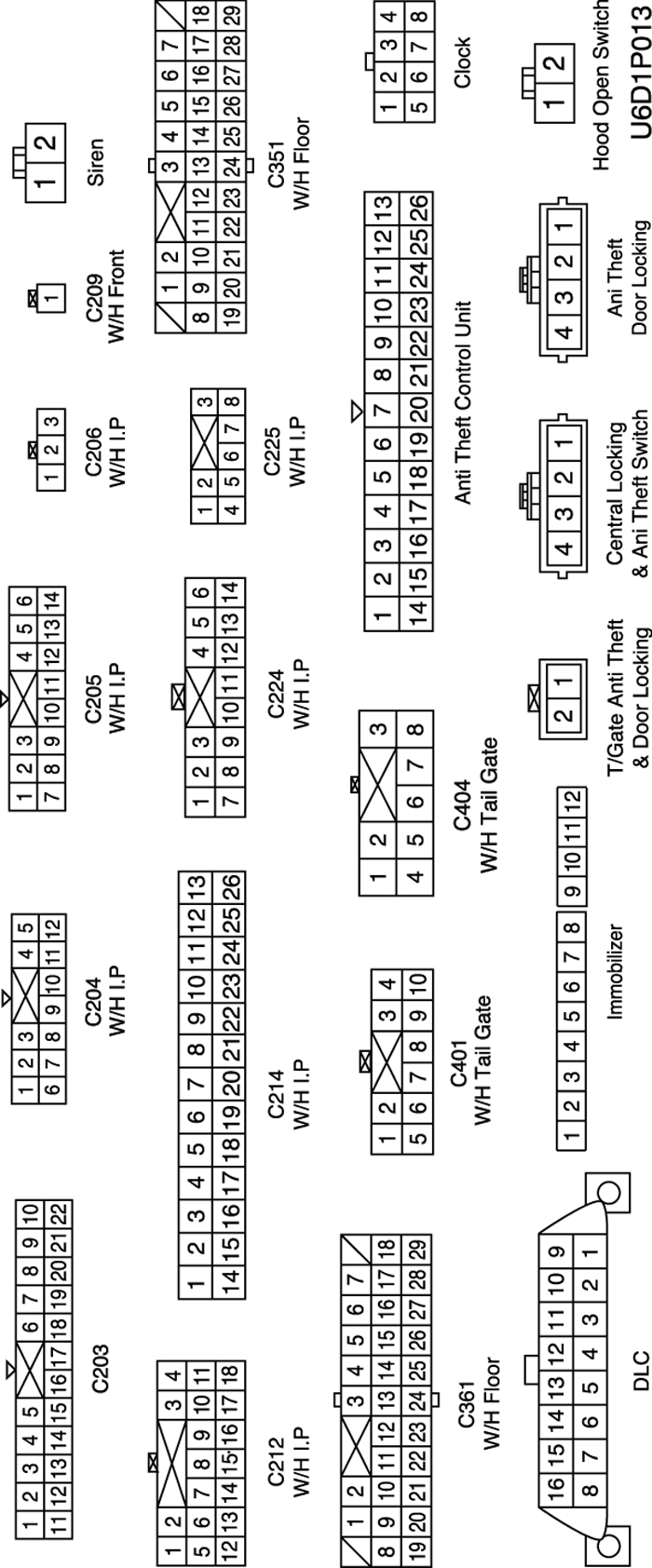

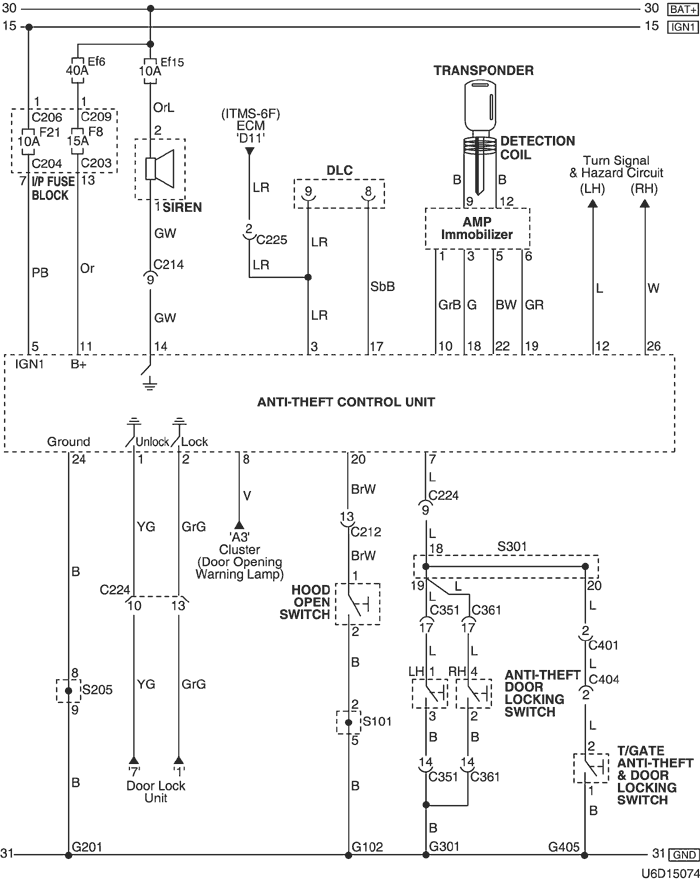

| connector no (pin no, color) |
connecting wiring harness | connector position |
| C203 (22 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C204 (12 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C205 (14 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C206 (3 Pin, Brown) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C209 (1 Pin, Colorless) | I/P Fuse Block – Front | Behind the I/P Fuse Block |
| C212 (18 Pin, Blue) | Front – IP | Left Upper the Driver Leg Room |
| C214 (26 Pin, Yellow) | Front – IP | Left Upper the Driver Leg Room |
| C224 (14 Pin, White) | IP – Floor | Under the Door Lock Unit |
| C225 (8 Pin, White) | IP – ECM | Center Upper The Driver Leg Room |
| C351 (29 Pin, White) | Floor – Co-Driver Door | Inside Light 'A' Pillar |
| C361 (29 Pin, White) | Floor – Driver Door | Inside Right 'A' Pillar |
| C401 (10 Pin, White) | Tailgate – Floor | Behind the Rear Quarter Glass |
| C404 (8 Pin, White) | Tailgate – Tailgate, AUX | Left Under Tailgate Behind the Tail Lamp |
| S101 (White) | Front | Inside the Engine Fuse Block |
| S202 (Orange) | IP | Rear Right Instrument Panel |
| S205 (Orange) | IP | Rear Center Instrument Panel |
| S301 (Black) | Floor | Under the Driver Crossmember Panel |
| G102 | Front | Behind the Left Headlamp |
| G201 | IP | Rear Right Instrument Panel |
| G301 | Floor | Under the Driver Room Floor |
| G405 | Tailgate, Aux | Under the Rear Wiper Motor |
 |
 |
