26. AIG BAG (SDM: SENSING & DIAGNOSTIC MODULE)

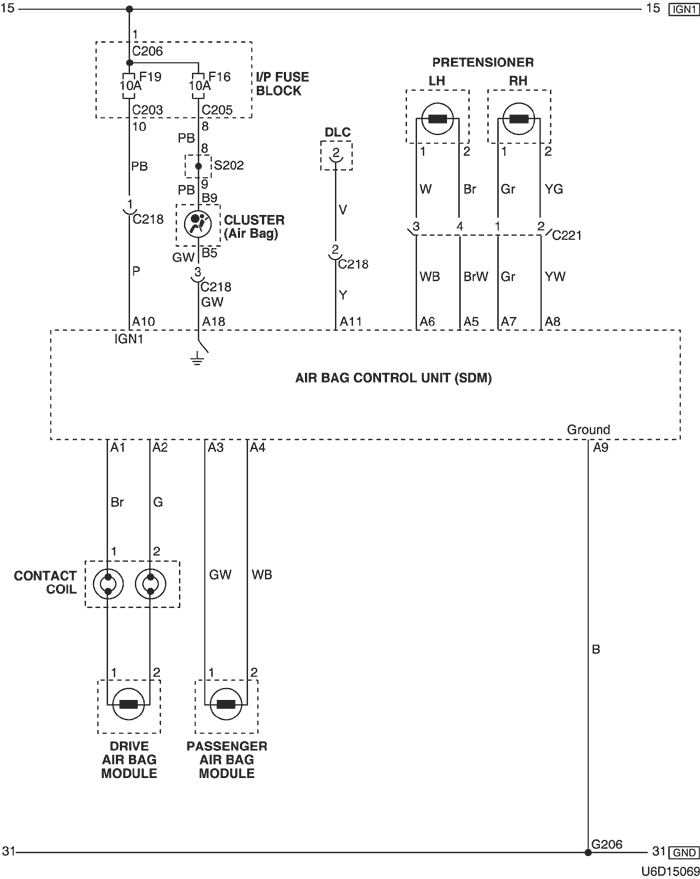

1) air bag control unit (sdm) & air bag warning lamp circuit: w/o side air bag
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C203 (22 Pin, White) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C205 (14 Pin, White) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C206 (3 Pin, Brown) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C218 (4 Pin, White) |
Air Bag – IP |
Right Upper the Driver Leg Room |
| C221 (4 Pin, White) |
Air Bag – Floor |
Under the Console Box |
| S202 (Orange) |
IP |
Rear Right Instrument Panel |
| G206 |
Air Bag |
Front Right SDM |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s202

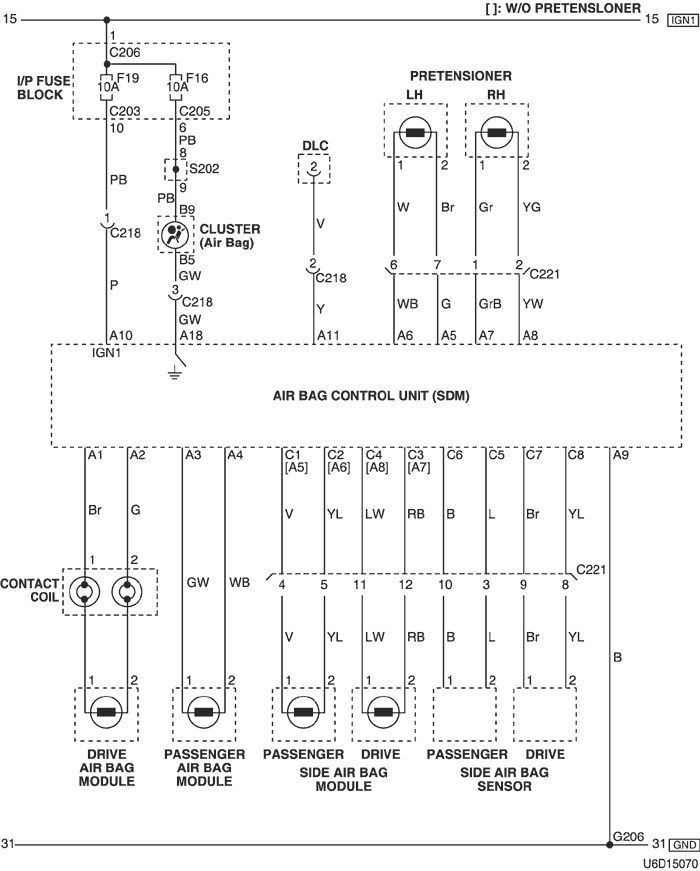

2) air bag control unit(sdm) & air bag warning lamp circuit: w/ side air bag
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C203 (22 Pin, White) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C205 (14 Pin, White) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C206 (3 Pin, Brown) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C218 (4 Pin, White) |
Air Bag – IP |
Right Upper the Driver Leg Room |
| C221 (12 Pin, White) |
Air Bag – Floor |
Under the Console Box |
| S202 (Orange) |
IP |
Rear Right Instrument Panel |
| G206 |
Air Bag |
Front Right SDM |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s202
