18. POWER WINDOW CIRCUIT

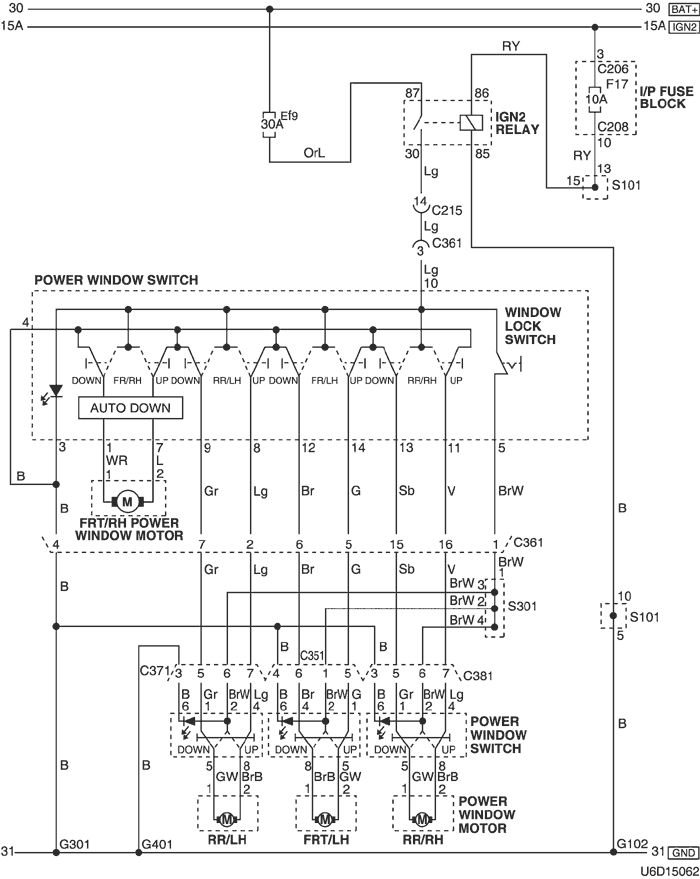

1) front & rear power window circuit



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C215 (16 Pin, White) Floor – Front Under the I/P Fuse Block
C351 (29 Pin, White) Floor – Co-Driver Door Inside Light 'A' Pillar
C361 (29 pin, White) Floor – Driver Door Inside Right 'A' Pillar
C371 (11 Pin, White) Floor – Rear Light Door Inside Light 'B' Pillar
C381 (11 Pin, White) Floor – Rear Right Door Inside Right 'B' Pillar
S101 (White) Front Inside the Engine Fuse Block
S301 (Black) Floor Under the Driver Crossmember Panel
G102 Front Behind the Left Headlamp
G301 Floor Under the Driver Room Floor
G401 Floor Left the Trunk Room Under the Tail Lamp

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS

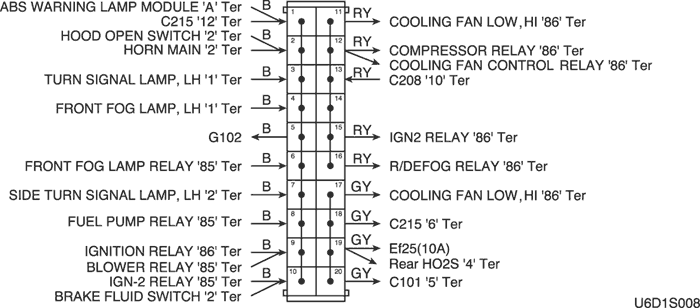

d. SPLICE PACK

s101



s301



2) only front power window circuit



a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harness connector position
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C215 (16 Pin, White) Floor – Front Under the I/P Fuse Block
C351 (29 Pin, White) Floor – Co-Driver Door Inside Light 'A' Pillar
C361 (29 Pin, White) Floor – Driver Door Inside Right 'A' Pillar
S101 (White) Front Inside the Engine Fuse Block
S301 (Black) Floor Under the Driver Crossmember Panel
G205 Floor Behind the I/P Fuse Block
G301 Floor Under the Passenger Room Floor

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION



c. POSITION OF CONNECTORS AND GROUNDS





d. SPLICE PACK

s101



s301
