28. CLUSTER

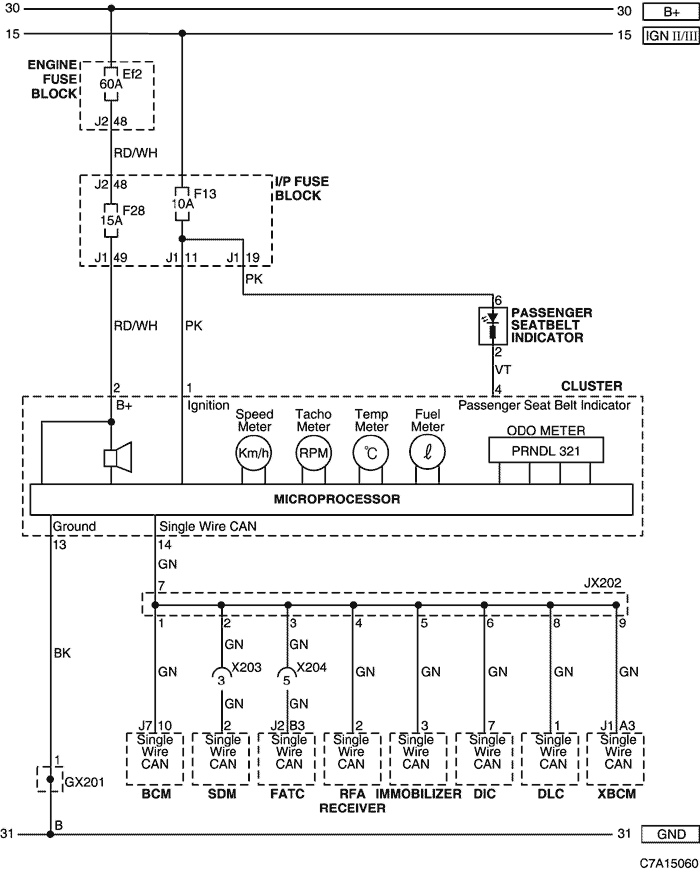

1) temperature gauge, tachometer, fuel gauge, oddometer, speedometer, passenger seatbelt indicator & single wire can circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X203 (6 Pin, Colorless) |
I.P - Air Bag |
Below the floor console |
| X204 (16 Pin, Black) |
I.P - FATC |
Behind the FATC |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK

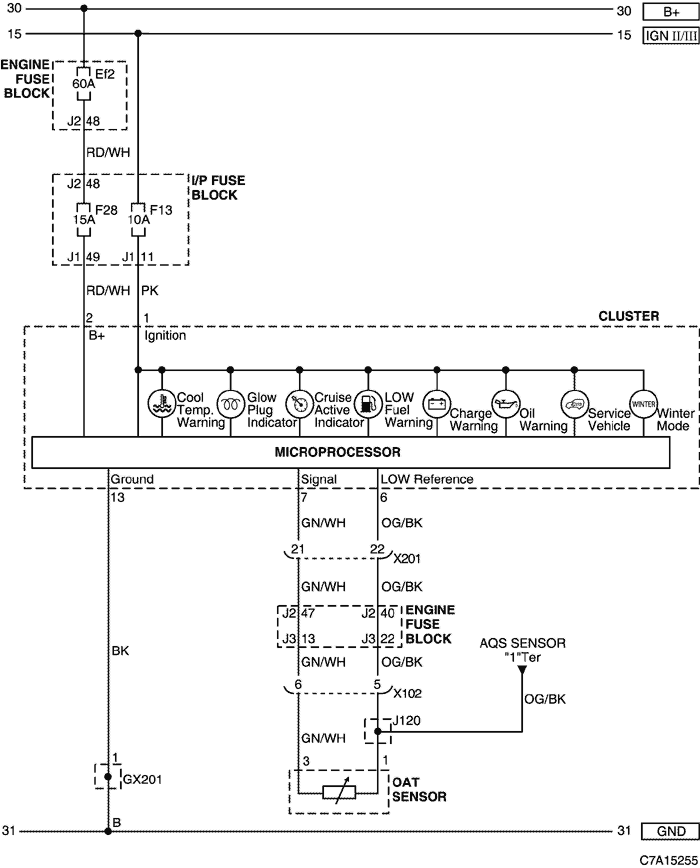

2) warning (cool temp., LOW FUEL, CHARGE, OIL, SERVICE VEHICLE) LAMP, INDICATOR (CRUISE ACTIVE, GLOW PLUG, WINTER MODE) LAMP & OAT SENSOR CIRCUIT
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X102 (12 Pin, Black) |
Front JPR - Front |
Behind the left side Head Lamp |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
3) warning (seat belt, low wash fluid, water in fuel, awd, parking brake) lamp, indicator (esp off, front/rear fog) lamp circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X102 (12 Pin, Black) |
Front JPR - Front |
Behind the left side Head Lamp |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| GX101 (Black/Gray) |
Front |
Behind the left HeadLamp |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
| GX301 (Black/Gray) |
Body |
Under the right seat cushion |
| GX401 (Black/Gray) |
Body |
Right the luggage compartment |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
4) warning (abs, esp active&fault, engine check, air bag change oil, security) lamp, indicator (dcs, esp not ready, chang oil, diseel filter, security) lamp circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK

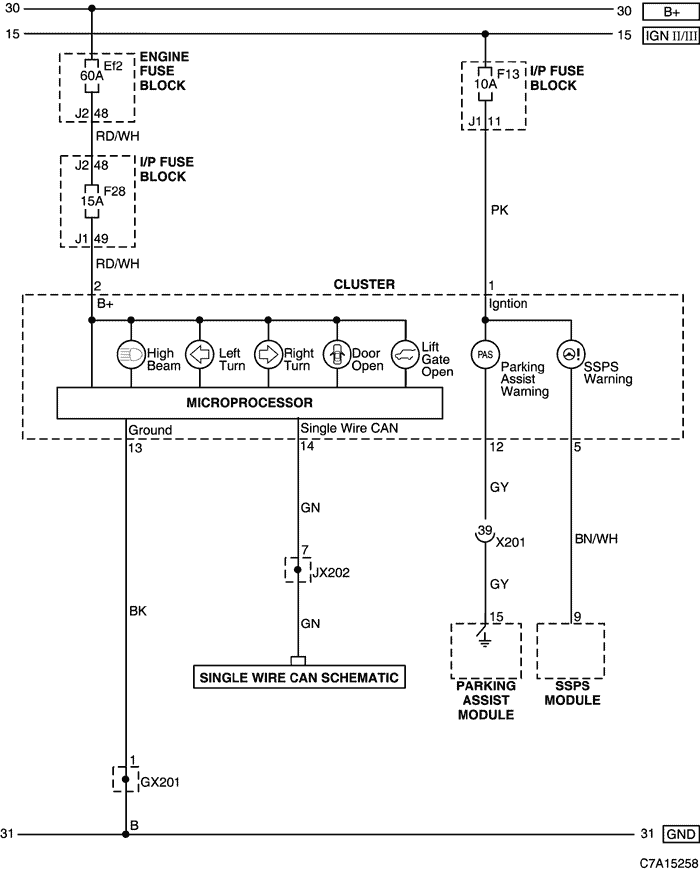

5) warning (ssps, parking assist) lamp, indicator (high beam,,left turn, right turn, door open, lift gate open) lamp & illumination circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
