206-05 Parking Brake and Actuation 2014 Fiesta
Removal and Installation Procedure revision date: 04/11/2013

Parking Brake Control

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
  1. Driver seat only.
    Refer to: Front Seat (501-10 Seating, Removal and Installation).
  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Torque : 40 Nm
  1. Torque : 30 Nm
  1. Torque : 30 Nm

Installation

  1. To install, reverse the removal procedure.

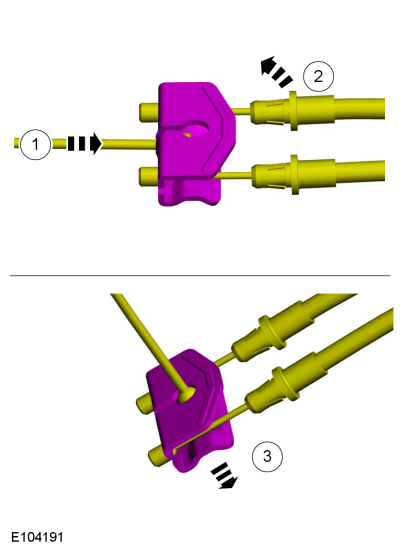

  1. Before installing the parking brake cable adjustment nut retainer and floor console, adjust the parking brake cables.
    Refer to: Parking Brake Cable Adjustment (206-05 Parking Brake and Actuation, General Procedures).
    Refer to: Parking Brake Cable Adjustment - 1.6L EcoBoost (132kW/180PS) - Sigma (206-05 Parking Brake and Actuation, General Procedures).
