206-05 Parking Brake and Actuation 2014 Fiesta
General Procedures Procedure revision date: 04/11/2013

Parking Brake Cable Adjustment - 1.6L EcoBoost (132kW/180PS) - Sigma

  1. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
  1. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

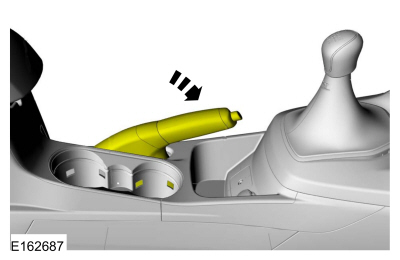

  1. NOTE: Make sure the parking brake control is fully released.

    NOTE: This step requires the aid of another technician.

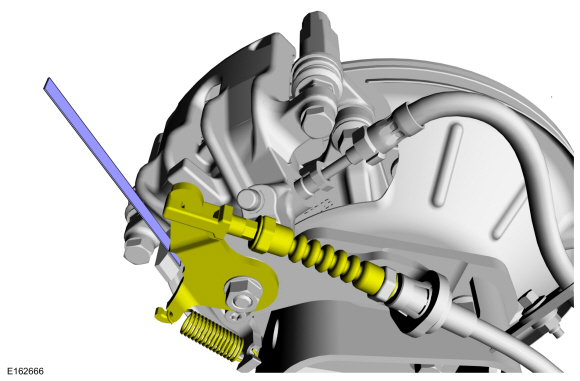

    1. Insert a 1.0 mm feeler gauge between the parking brake lever and the brake caliper bracket abutment, on both sides.
      General Equipment : Feeler Gauge
    1. Tighten the parking brake cable adjustment nut until movement is observed on one of the parking brake levers.
    1. Remove the feeler gauges.
  1. On both sides.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
  1. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
