303-03A Engine Cooling - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma 2014 Fiesta
Removal and Installation Procedure revision date: 05/15/2013

Radiator

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Cooling System Draining and Vacuum Filling (303-03A Engine Cooling - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma, General Procedures).
  1. Refer to: Cooling Fan Motor and Shroud (303-03A Engine Cooling - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma, Removal and Installation).

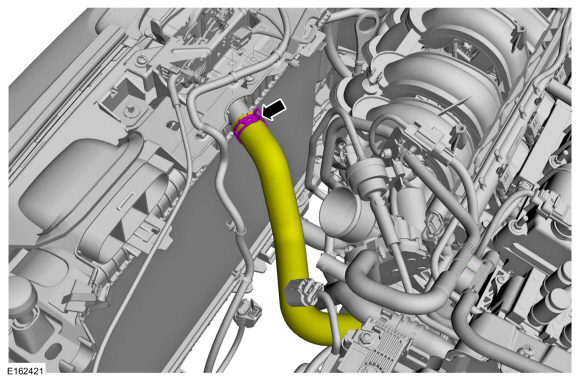

  1. General Equipment : Hose Clamp Remover/Installer

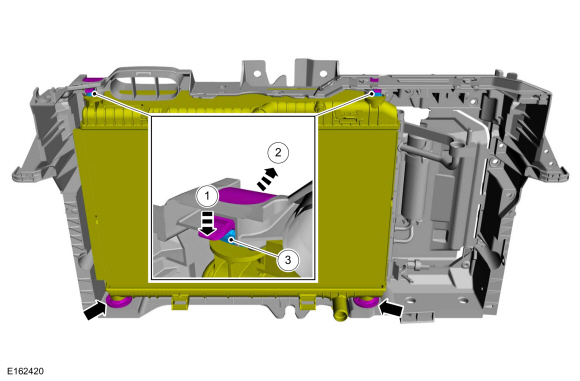

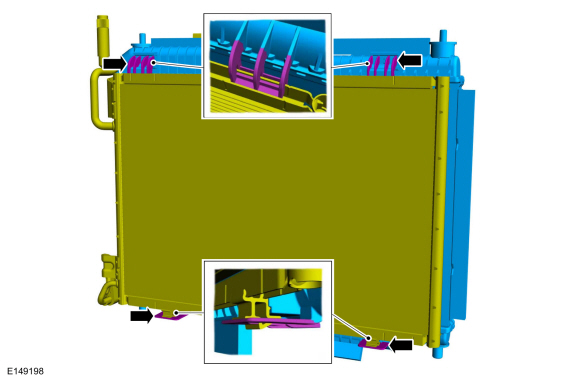

  1. NOTICE: The component must be removed by hand, the use of tools is prohibited.

Installation

  1. To install, reverse the removal procedure.
