303-03A Engine Cooling - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma 2014 Fiesta
Removal and Installation Procedure revision date: 05/15/2013

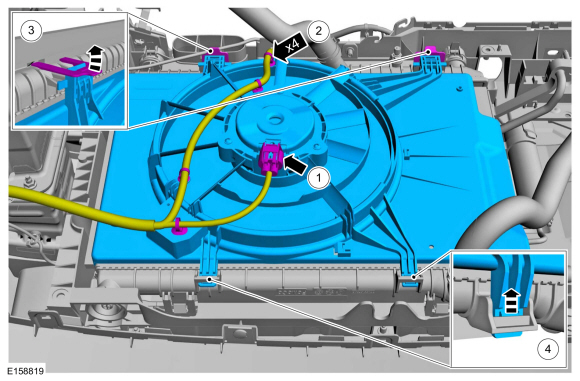

Cooling Fan Motor and Shroud

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma, Removal and Installation).

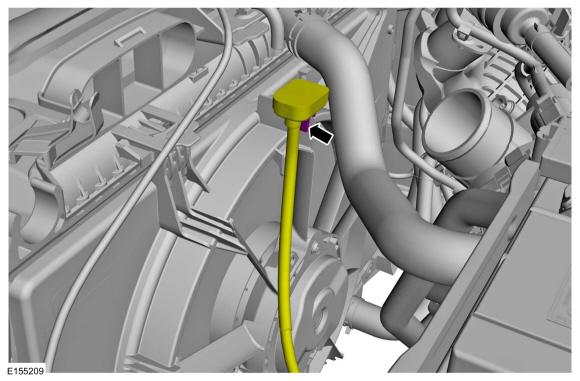

  1. If equipped.
  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

Installation

  1. To install, reverse the removal procedure.
