7. FULL AUTOMATIC TEMPERATURE CONTROL (FATC)
1) motor (intake, mode & blower) & power tr circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C204 (12 Pin, White) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C205 (14 Pin, White) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C206 (3 Pin, Brown) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C212 (18 Pin, Blue) |
Front – IP |
Left Upper the Driver Leg Room |
| C213 (7 Pin, Gray) |
Front – IP |
Left Upper the Driver Leg Room |
| C219 (15 Pin, White) |
IP – FATC |
Upper the Evaporator Housing |
| S101 (White) |
Front |
Inside the Engine Fuse Block |
| S206 (Violet) |
IP |
Rear Left Instrument Panel |
| G102 |
Front |
Behind the Left Headlamp |
| G203 |
IP |
Under Right Ashtray |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s101
s206

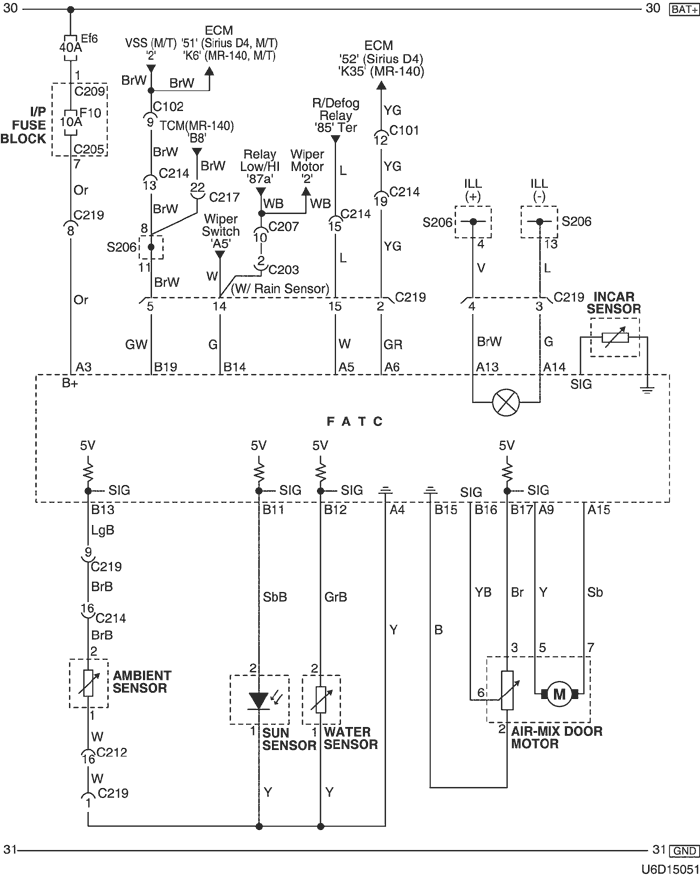

2) air mix door motor, a/c comp. & SENSOR (AMBIENT, SUN, WATER & INCAR) CIRCUIT : MR-140, SIRIUS D4
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C101 (15 Pin, Black) |
Engine – Front |
Behind the Left Headlamp |
| C102 (16 Pin, Black) |
Engine – Front |
Behind the Left Headlamp |
| C203 (22 Pin, White) |
I/P Fuse Block - IP |
Front the I/P Fuse Block |
| C205 (14 Pin, White) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C207 (22 Pin, White) |
I/P Fuse Block - Front |
Behind the I/P Fuse Block |
| C209 (1 Pin, Colorless) |
I/P Fuse Block – Front |
Behind the I/P Fuse Block |
| C212 (18 Pin, Blue) |
Front – IP |
Left Upper the Driver Leg Room |
| C214 (26 Pin, Yellow) |
Front – IP |
Left Upper the Driver Leg Room |
| C217 (22 Pin, White) |
IP – TCM |
Center Upper the Driver Leg Room |
| C219 (15 Pin, White) |
IP – FATC |
Upper the Evaporator Housing |
| S206 (Violet) |
IP |
Rear Left Instrument Panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s206

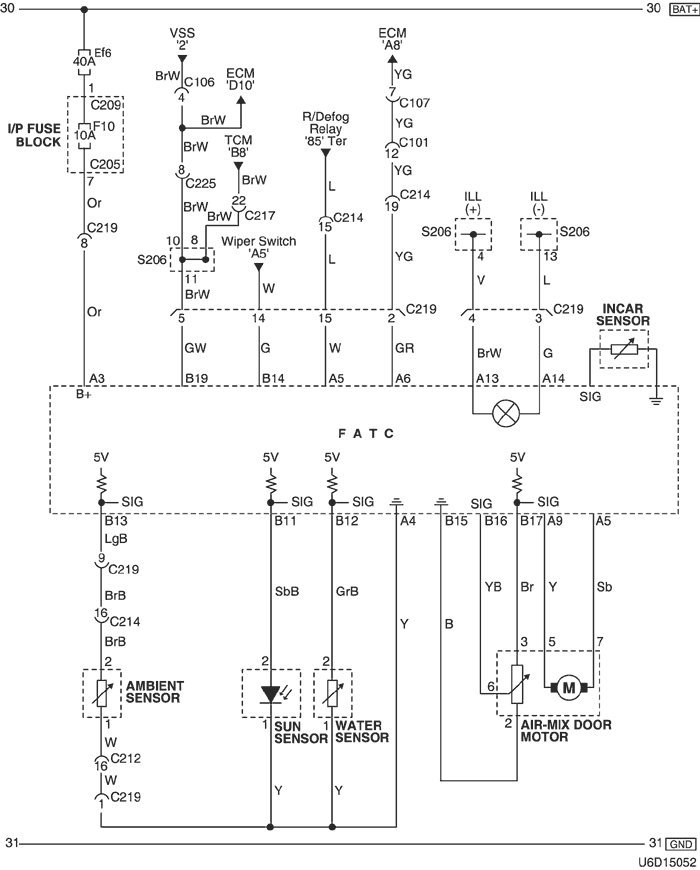

3) air mix door motor, a/c comp. & SENSOR (AMBIENT, SUN, WATER & INCAR) CIRCUIT : ITMS-6F
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C101 (15 Pin, Black) |
Engine – Front |
Behind the Left Headlamp |
| C106 (16 Pin, Black) |
Engine - ECM |
Right Upper The Driver Leg Room |
| C107 (16 Pin, Black) |
Engine - ECM |
Right Upper The Driver Leg Room |
| C205 (14 Pin, White) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C209 (1 Pin, Colorless) |
I/P Fuse Block – Front |
Behind the I/P Fuse Block |
| C212 (18 Pin, Blue) |
Front – IP |
Left Upper the Driver Leg Room |
| C214 (26 Pin, Yellow) |
Front – IP |
Left Upper the Driver Leg Room |
| C217 (22 Pin, White) |
IP – TCM |
Center Upper the Driver Leg Room |
| C219 (15 Pin, White) |
IP – FATC |
Upper the Evaporator Housing |
| C225 (8 Pin, White) |
IP – ECM |
Center Upper The Driver Leg Room |
| S206 (Violet) |
IP |
Rear Left Instrument Panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s206
