2006 20. CHIME BELL, SEAT BELT SWITCH & KEY REMIND SWITCH CIRCUIT
20. CHIME BELL, SEAT BELT SWITCH & KEY REMIND SWITCH CIRCUIT

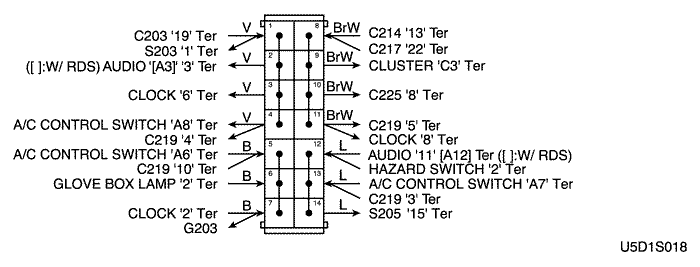

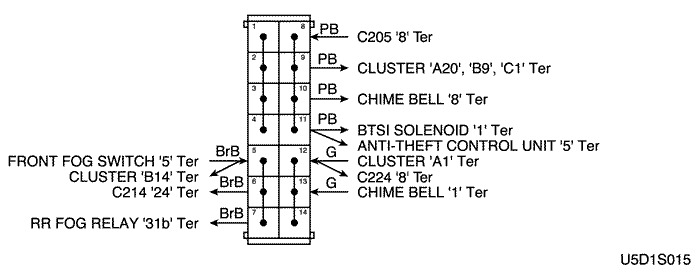

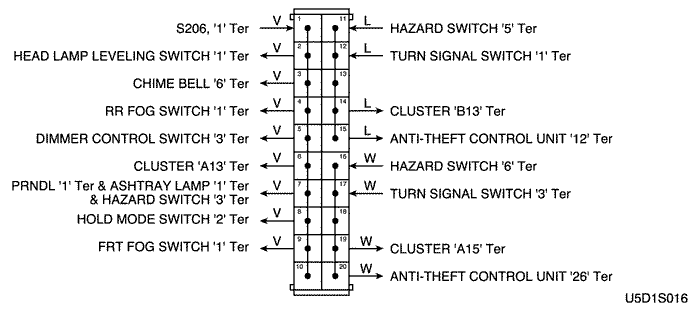

a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C205 (14 Pin, White) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C206 (3 Pin, Brown) |
I/P Fuse Block – IP |
Front the I/P Fuse Block |
| C209 (1 Pin, Colorless) |
I/P Fuse Block – Front |
Behind the I/P Fuse Block |
| C224 (14 Pin, White) |
IP – Floor |
Under the Door Lock Unit |
| S202 (Orange) |
IP |
Rear Right Instrument Panel |
| S203 (Orange) |
IP |
Rear Center Instrument Panel |
| S206 (Violet) |
IP |
Rear Left Instrument Panel |
| G201 |
IP |
Rear Right Instrument Panel |
| G301 |
Floor |
Under the Driver Room Floor |

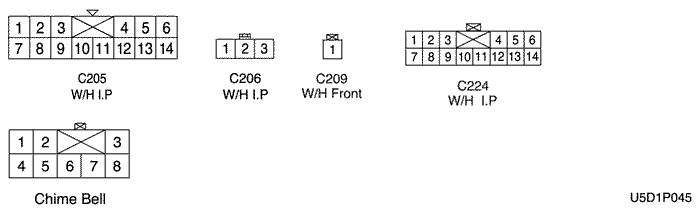

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

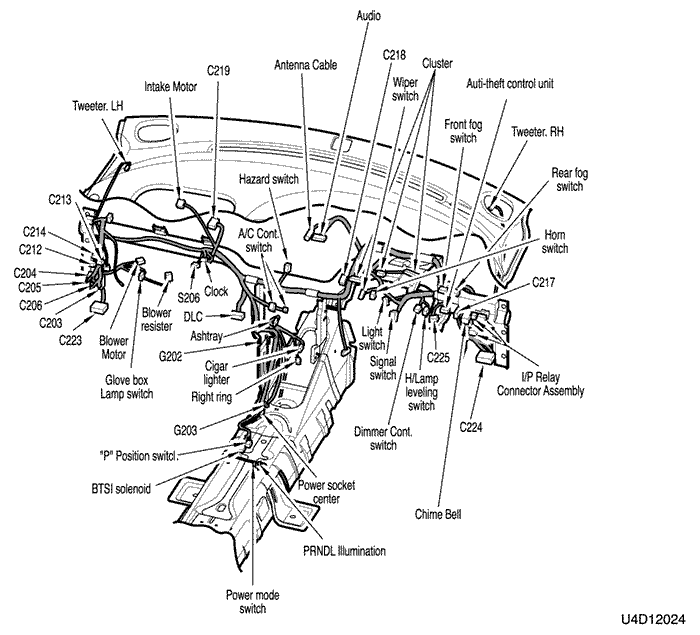

c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s202
s203
s206
