electrical wiring diagram 2007 8. TCM (TRANSMISSION CONTROL MODULE) : DIESEL
8. TCM (TRANSMISSION CONTROL MODULE) : DIESEL
1) power supply, ground, brake switch, sensor (oss, iss) & ecm circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C102 (11 Pin, White) |
Body – Engine Fuse Block |
Engine Fuse Block |
| C105 (4 Pin, White) |
Body – Engine Fuse Block |
Engine Fuse Block |
| C108 (36 Pin, Black) |
Body – Engine (Diesel) |
Left Engine Fuse Block |
| C201 (76 Pin, Black) |
I.P – I.P Fuse Block |
I.P Fuse Block |
| C202 (89 Pin, White) |
I.P – Body |
Left Driver Leg Room |
| C206 (22 Pin, White) |
I.P – TCM |
Upper Driver Leg Room |
| C213 (26 Pin, Black) |
TCM LEAD - TCM |
Under Fuel Filter |
| G201 |
I.P |
Left I.P Fuse Block |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
2) cluster, transaxle & winter mode switch circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C102 (11 Pin, White) |
Body – Engine Fuse Block |
Engine Fuse Block |
| C201 (76 Pin, Black) |
I.P – I.P Fuse Block |
I.P Fuse Block |
| C202 (89 Pin, White) |
I.P – Body |
Left Driver Leg Room |
| C206 (22 Pin, White) |
I.P – TCM |
Upper Driver Leg Room |
| C213 (26 Pin, Black) |
TCM LEAD - TCM |
Under Fuel Filter |
| C302 (6 Pin, White) |
I.P - Console |
Below Console Box |
| G201 |
I.P |
Left I.P Fuse Block |
| G203 |
I.P |
Behind Left Audio Bracket |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

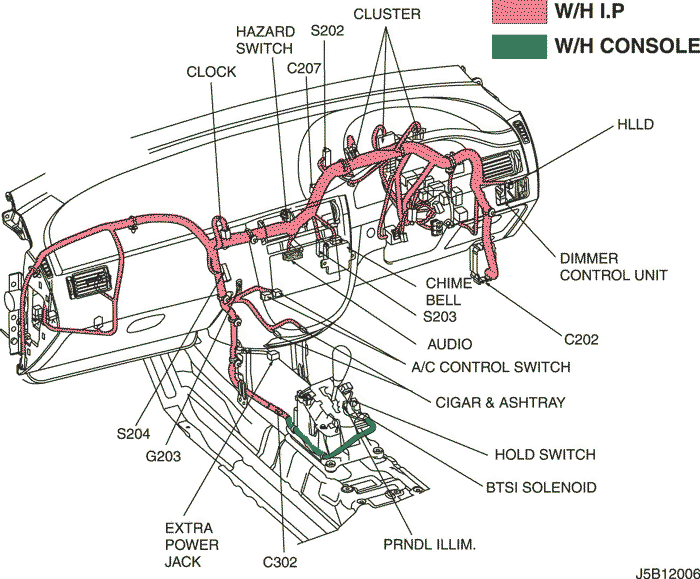

c. POSITION OF CONNECTORS AND GROUNDS

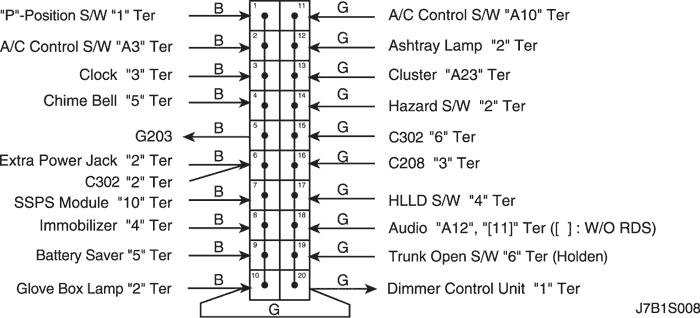

d. SPLICE PACK
s202
3) pnp switch circuit : notch back
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C201 (76 Pin, Black) |
I.P – I.P Fuse Block |
I.P Fuse Block |
| C202 (89 Pin, White) |
I.P – Body |
Left Driver Leg Room |
| C206 (22 Pin, White) |
I.P – TCM |
Upper Driver Leg Room |
| C213 (26 Pin, Black) |
TCM LEAD - TCM |
Under Fuel Filter |
| C401 (N/B) (10 Pin, White) |
Trunk - Body |
Inside Right Trunk Side Cover |
| G201 |
I.P |
Left I.P Fuse Block |
| G401 |
Trunk |
Center Trunk Lower Back Panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
4) pnp switch circuit : hatch back
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C201 (76 Pin, Black) |
I.P – I.P Fuse Block |
I.P Fuse Block |
| C202 (89 Pin, White) |
I.P – Body |
Left Driver Leg Room |
| C206 (22 Pin, White) |
I.P – TCM |
Upper Driver Leg Room |
| C213 (26 Pin, Black) |
TCM LEAD - TCM |
Under Fuel Filter |
| C403 (H/B) (6 Pin, White) |
T/Gate. EXT. - Body |
Inside Left C Pillar |
| C405 (H/B) (10 Pin, White) |
T/Gate. EXT. - T/Gate (W/ Rear INT.) |
Beside Left Rear Wiper Motor |
| G201 |
I.P |
Left I.P Fuse Block |
| G402 |
T/Gate. EXT. |
Inside Driver C Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
5) pnp switch circuit : station wagon
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| C201 (76 Pin, Black) |
I.P – I.P Fuse Block |
I.P Fuse Block |
| C202 (89 Pin, White) |
I.P – Body |
Left Driver Leg Room |
| C206 (22 Pin, White) |
I.P – TCM |
Upper Driver Leg Room |
| C213 (26 Pin, Black) |
TCM LEAD - TCM |
Under Fuel Filter |
| G201 |
I.P |
Left I.P Fuse Block |
| G303 |
Body |
Below Right Rear Combination Lamp |
| G304 |
Body |
Below Left Rear Combination Lamp |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
