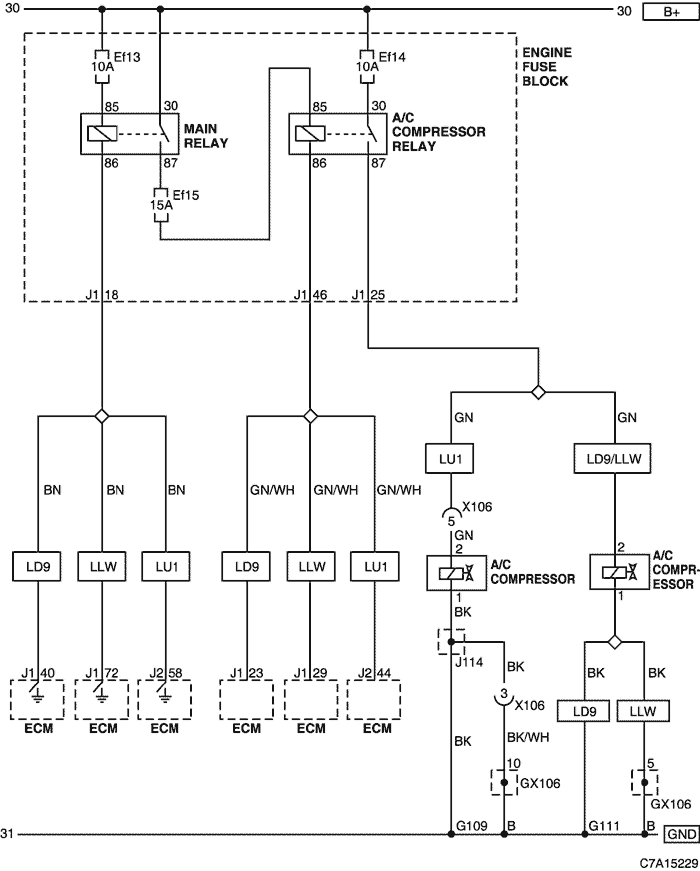

9. AIR CONDITIONER COMPRESSOR CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		 connecting wiring harness connector position
X106 (7 Pin, Black) Engine - Fuel Injector (HVF6) Upper the cylinder Head
GX106 (Black/Gray) Engine (DSL/HFV6) Upper the Cylinder Head
G109 Fuel Injector (HFV6) On the Cylinder Block
G111 Engine (FAM II) On the Cylinder Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
