7. AIR CONDITIONER

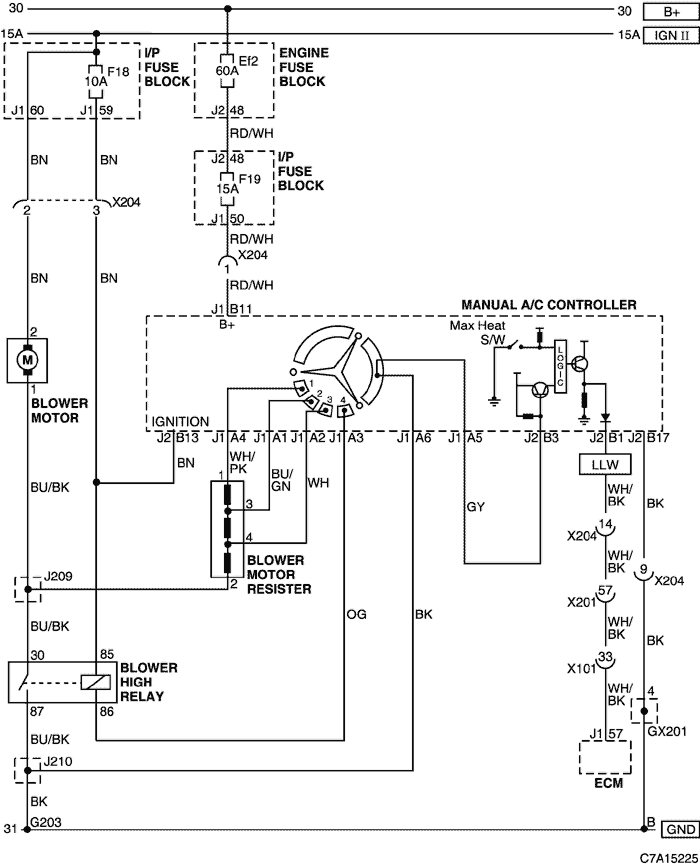

1) air conditioner control switch & blower motor circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X101 (36 Pin, Black)
|
Engine - Body |
Behind the Engine Fuse Block |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X204 (16 Pin, Black) |
I.P - FATC |
Behind the FATC |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
| G203 |
FATC |
Inside the left instrument panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
2) intake motor, mode motor & evap core temp. SENSOR CIRCUIT
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X204 (16 Pin, Black) |
I.P - FATC |
Behind the FATC |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
