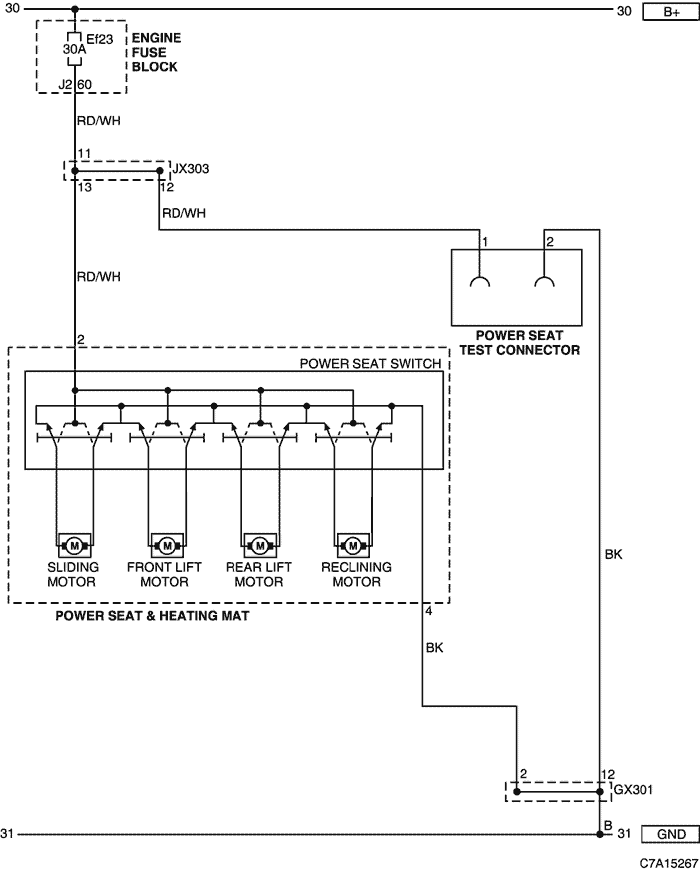

38. POWER SEAT SYSTEM CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		 connecting wiring harness connector position
GX301 (Black/Gray) Body Under the right seat cushion

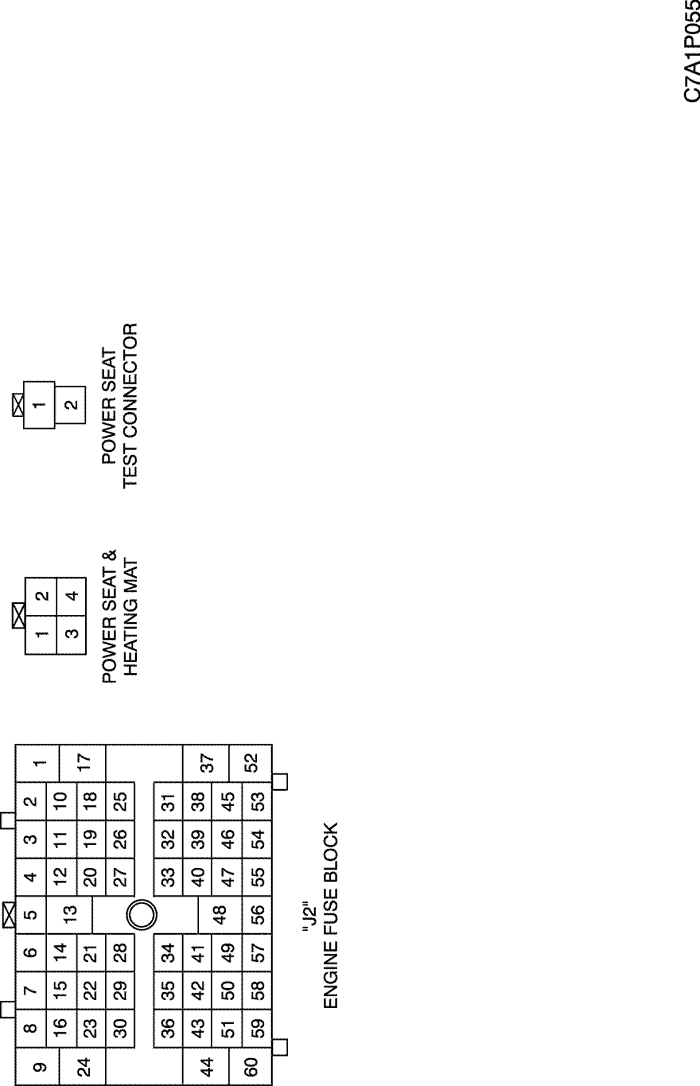

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics
