31. AIR BAG (SDM: SENSING & DIAGNOSTIC MODULE) CIRCUIT
1) power supply, driver/passenger air bag module, seatbelt switch, seatbelt reminder sensor & cluster circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X203 (6 Pin, Colorless) |
I.P - Air Bag |
Below the floor console |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
2) side air bag module, seatbelt pretensioner, curtain air bag module & side impact sensor circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X302 (2 Pin, Yellow) |
Body - Air Bag |
Inside left "B" Pillar |
| X303 (2 Pin, Yellow) |
Body - Air Bag |
Inside right "B" Pillar |

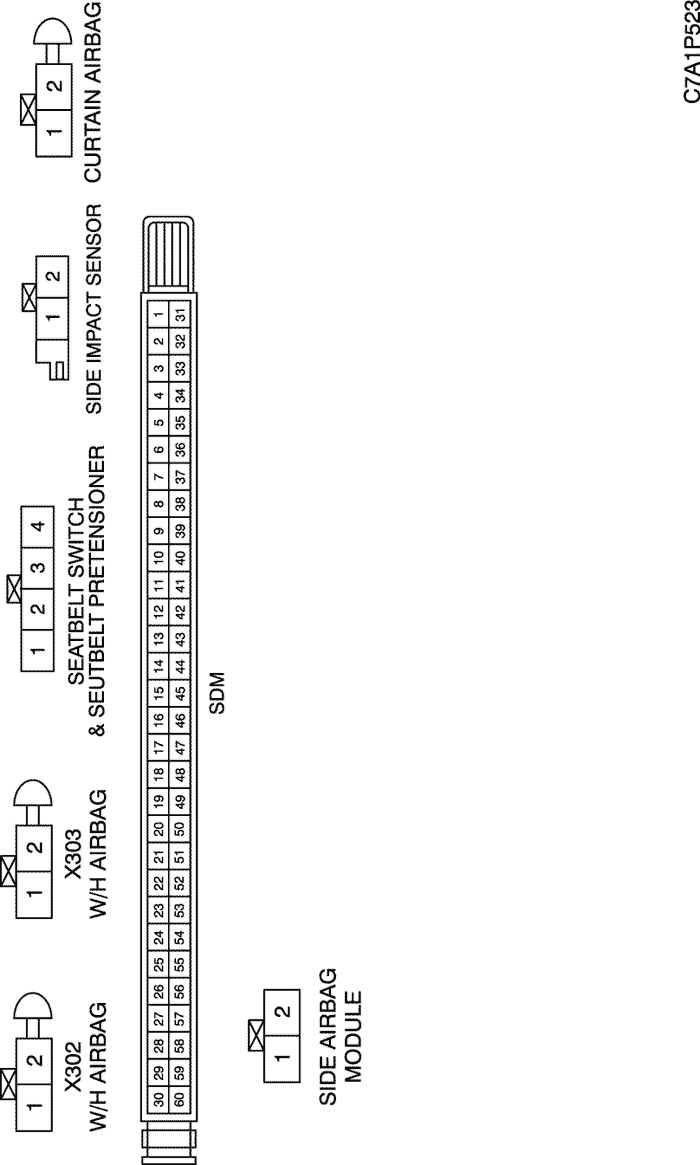

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
