3. ECM (ENGINE CONTROL MODULE) : EDC16C39 (2.0 DIESEL)
1) battery power supply, ground, glow plug control unit, fuel heater, generator & ckp sensor circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X103 (8 Pin, Black) |
Engine - Fuel Heater (DSL) |
Next to the ECM |
| X104 (4 Pin, Black) |
Engine - Glow Plug (DSL) |
Left side upper Cylinder |
| GX106 (Black/Gray) |
Engine (DSL/HFV6) |
Upper the Cylinder Head |
| G112 (Black/Gray) |
Engine (DSL) |
On the Cylinder Block |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
2) injector, fuel pump & sensor (exhaust gas temperature, fuel temperature) circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X103 (8 Pin, Black) |
Engine - Fuel Heater (DSL) |
Next to the ECM |
| X105 (4 Pin, Black) |
Engine - Exhaust Gas Temp. Sensor (DSL) |
Behind the Cylinder Head |
| X304 (12 Pin, Black) |
Fuel Sender - Body |
Below the right "C" pillar |
| GX106 (Black/Gray) |
Engine (DSL/HFV6) |
Upper the Cylinder Head |
| GX402 (Black/Gray) |
Body |
Right the luggage compartment |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
3) sensor (wif, maf/iat, dpf pressure, rail pressure, ect,acp), switch (oil pressure), rail pressure control valve & fuel metering unit circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X103 (8 Pin, Black) |
Engine - Fuel Heater (DSL) |
Next to the ECM |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X204 (16 Pin, Black) |
I.P - FATC |
Behind the FATC |
| GX106 (Black/Gray) |
Engine (DSL/HFV6) |
Upper the Cylinder Head |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
4) sensor (accelerator pedal, boost pressure, fuel level,cmp), actuator (throttle plate, boost pressure), clutch switch & egr valve circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X101 (36 Pin, Black)
|
Engine - Body |
Behind the Engine Fuse Block |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X304 (12 Pin, Black) |
Fuel Sender - Body |
Below the right "C" pillar |
| GX106 (Black/Gray) |
Engine (DSL/HFV6) |
Upper the Cylinder Head |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
5) brake switch, back up switch & nsbu switch circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X101 (36 Pin, Black)
|
Engine - Body |
Behind the Engine Fuse Block |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| GX106 (Black/Gray) |
Engine (DSL/HFV6) |
Upper the Cylinder Head |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK

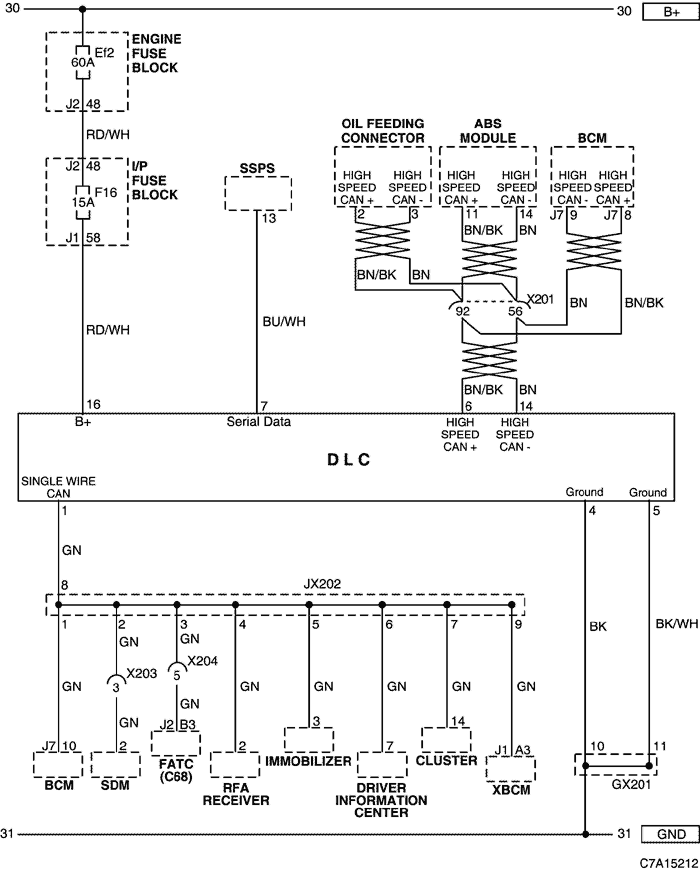

6) dlc (data link connector) circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X203 (6 Pin, Colorless) |
I.P - Air Bag |
Below the floor console |
| X204 (16 Pin, Black) |
I.P - FATC |
Behind the FATC |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
