26. DOOR LOCKING SYSTEM CIRCUIT
1) actuator circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X402 (18 Pin, Colorless) |
Lift Gate - Body |
Behind the left "C" pillar |
| X501 (18 Pin, Gray) |
Body - Front LH Door |
Under the left "A" Pillar |
| X601 (18 Pin, Gray) |
Body - Front RH Door |
Under the right "A" Pillar |
| X701 (15 Pin, Colorless) |
Body - Rear LH Door |
Under the left "B" Pillar |
| X801 (15 Pin, Colorless) |
Body - Rear RH Door |
Under the right "B" Pillar |
| X901 (18 Pin, Colorless) |
Lift Gate - Lift Gate JPR |
Behind the "2nd" Seat |
| GX301 (Black/Gray) |
Body |
Under the right seat cushion |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK

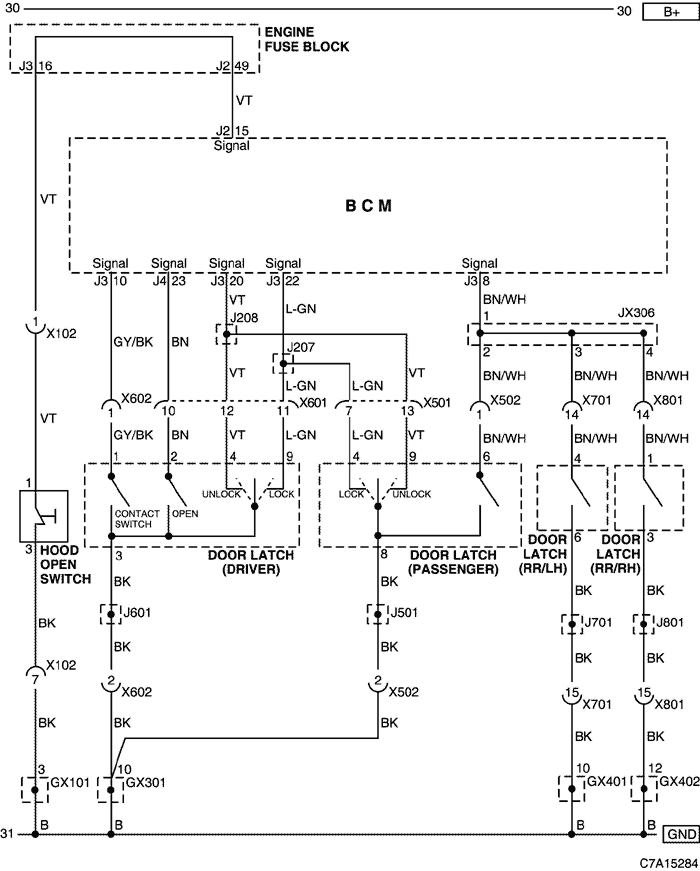

2) latch circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X102 (12 Pin, Black) |
Front JPR - Front |
Behind the left side Head Lamp |
| X501 (18 Pin, Gray) |
Body - Front LH Door |
Under the left "A" Pillar |
| X502 (18 Pin, Colorless) |
Body - Front LH Door |
Under the left "A" Pillar |
| X601 (18 Pin, Gray) |
Body - Front RH Door |
Under the right "A" Pillar |
| X602 (18 Pin, Colorless) |
Body - Front RH Door |
Under the right "A" Pillar |
| X701 (15 Pin, Colorless) |
Body - Rear LH Door |
Under the left "B" Pillar |
| X801 (15 Pin, Colorless) |
Body - Rear RH Door |
Under the right "B" Pillar |
| GX101 (Black/Gray) |
Front |
Behind the left HeadLamp |
| GX301 (Black/Gray) |
Body |
Under the right seat cushion |
| GX401 (Black/Gray) |
Body |
Right the luggage compartment |
| GX402 (Black/Gray) |
Body |
Right the luggage compartment |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
3) dead lock circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X402 (18 Pin, Colorless) |
Lift Gate - Body |
Behind the left "C" pillar |
| X501 (18 Pin, Gray) |
Body - Front LH Door |
Under the left "A" Pillar |
| X601 (18 Pin, Gray) |
Body - Front RH Door |
Under the right "A" Pillar |
| X602 (18 Pin, Colorless) |
Body - Front RH Door |
Under the right "A" Pillar |
| X701 (15 Pin, Colorless) |
Body - Rear LH Door |
Under the left "B" Pillar |
| X801 (15 Pin, Colorless) |
Body - Rear RH Door |
Under the right "B" Pillar |
| X901 (18 Pin, Colorless) |
Lift Gate - Lift Gate JPR |
Behind the "2nd" Seat |
| GX301 (Black/Gray) |
Body |
Under the right seat cushion |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
4) dead lock circuit : holden
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X402 (18 Pin, Colorless) |
Lift Gate - Body |
Behind the left "C" pillar |
| X501 (18 Pin, Gray) |
Body - Front LH Door |
Under the left "A" Pillar |
| X601 (18 Pin, Gray) |
Body - Front RH Door |
Under the right "A" Pillar |
| X602 (18 Pin, Colorless) |
Body - Front RH Door |
Under the right "A" Pillar |
| X701 (15 Pin, Colorless) |
Body - Rear LH Door |
Under the left "B" Pillar |
| X801 (15 Pin, Colorless) |
Body - Rear RH Door |
Under the right "B" Pillar |
| X901 (18 Pin, Colorless) |
Lift Gate - Lift Gate JPR |
Behind the "2nd" Seat |
| GX301 (Black/Gray) |
Body |
Under the right seat cushion |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
