electrical wiring diagram 2007 18. INTERIOR LAMP CIRCUIT

Captiva

18. INTERIOR LAMP CIRCUIT

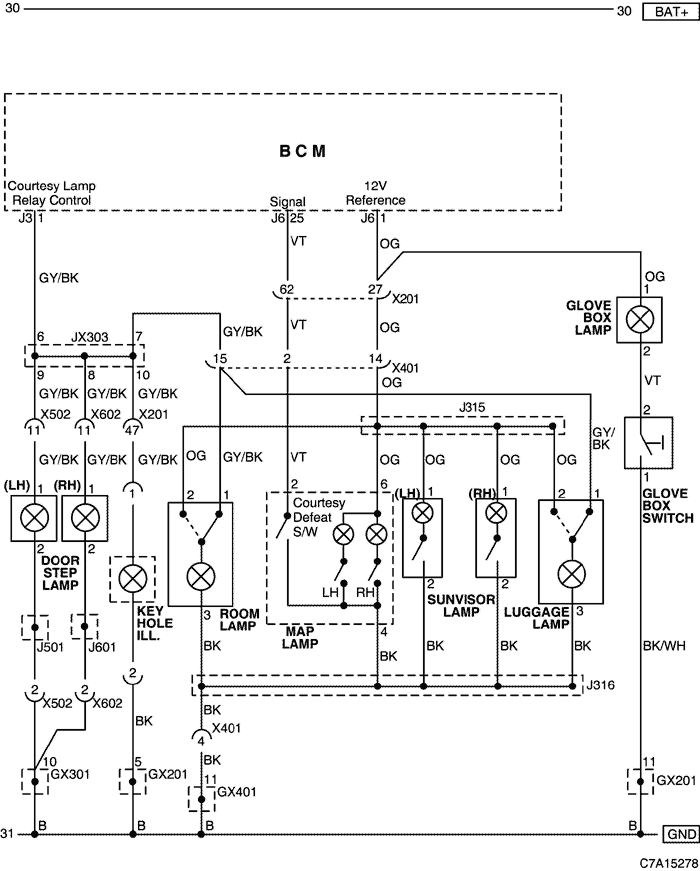

1) lamps (map, room, door step, sunvisor, luggage, glove box, key hole) circuit

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
X201 (92 Pin, Black)	Body - I.P	Below to the "A" pillar
X401 (18 Pin, Colorless)	Roof - Body	Inside the left "C" pillar
X502 (18 Pin, Colorless)	Body - Front LH Door	Under the left "A" Pillar
X602 (18 Pin, Colorless)	Body - Front RH Door	Under the right "A" Pillar
GX201 (Black/Gray)	I/P	Behind Steering Column - Lower
GX301 (Black/Gray)	Body	Under the right seat cushion
GX401 (Black/Gray)	Body	Right the luggage compartment

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

d. SPLICE PACK
