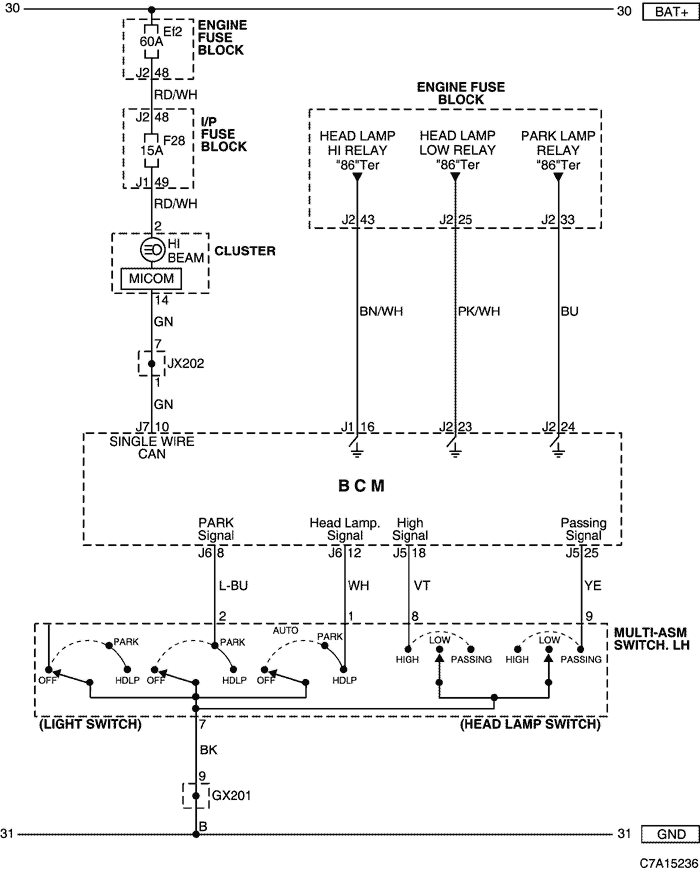

13. HEAD LAMP SWITCH CIRCUIT
1) w/o auto light
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
2) w/ auto light
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X204 (16 Pin, Black) |
I.P - FATC |
Behind the FATC |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
