Captiva |
||||||||
|
|
|||||||

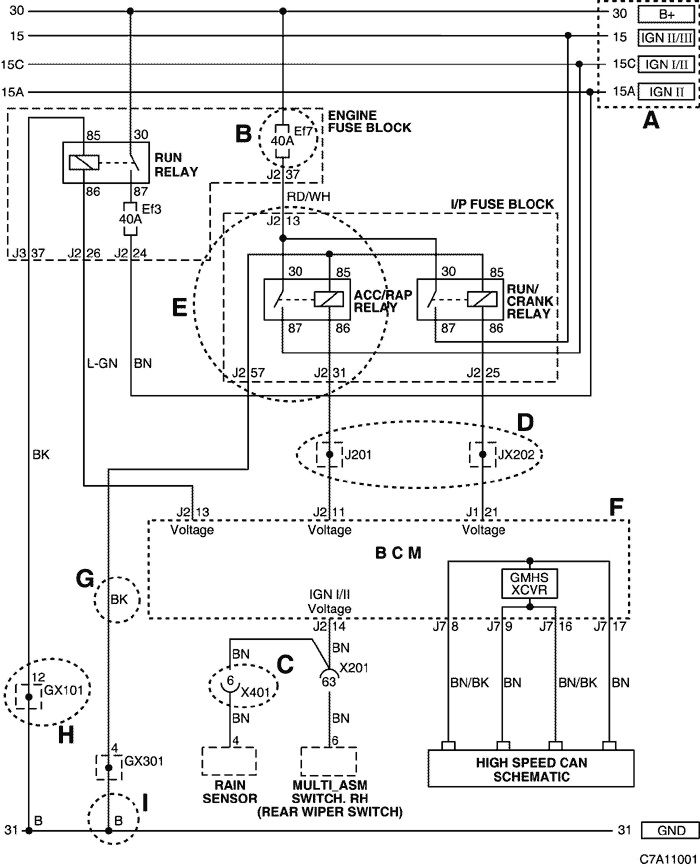

position
|
explanation
|
|
a
|
- Upper horizonal lines : Power supply - Power supply lines : 30, 15, 15A, 15C |
|
b
|
- Ef7 or Af3 or F2
|
|
c
|

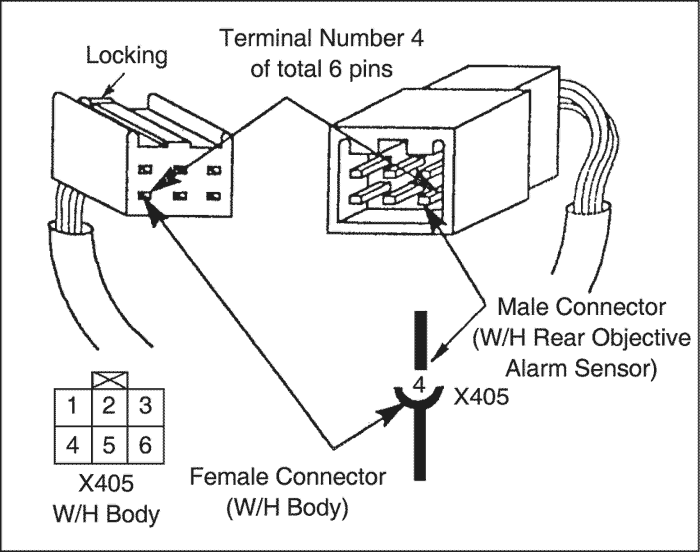

- Connector(X101~X902)
|
|
d
|
- Wiring Harness Splice
|
|
e
|
- Internal circuit of component (Relay) (Component name, terminal number) |
|
f
|
- Internal circuit of component (Module) (Component name, terminal number and connecting wiring circuit) |
|
g
|
- Wiring Harness Color
|
|
h
|
- Ground Harness Pack
|
|
i
|
- Lower horizonal line : Ground Line
|
identification
symbol
|
meaning
|
|
x
|
connector
|
|
e
|
fuse in engine fuse block.
|
|
a
|
fuse in engine fuse block. Aux
|
|
f
|
fuse in i/p fuse block
|
|
g
|
ground
|
|
j
|
splice pack
|
power supply no.
|
power supply condition
|
|
15
|
battery voltage(b+) supply in Ignition "ON" and "ST" (IGN II/III) Position
|
|
15a
|
battery voltage(b+) supply in Ignition "ON" (IGN II) Position
|
|
30
|
battery voltage(b+) supply directly regardless of Ignition Position
|
|
31
|
ground connected to battery(–)
|
abbreviation
|
color
|
abbreviation
|
color
|
|
bn
|
brown
|
l-bu
|
light blue
|
|
gn
|
green
|
rd
|
red
|
|
vt
|
violet
|
bu
|
blue
|
|
pk
|
pink
|
ye
|
yellow
|
|
wh
|
white
|
gy
|
gray
|
|
or
|
orange
|
bk
|
black
|
|
l-gn
|
light green
|
. | . |
 |
 |
