Matiz/Spark | ||||||||
|
| |||||||

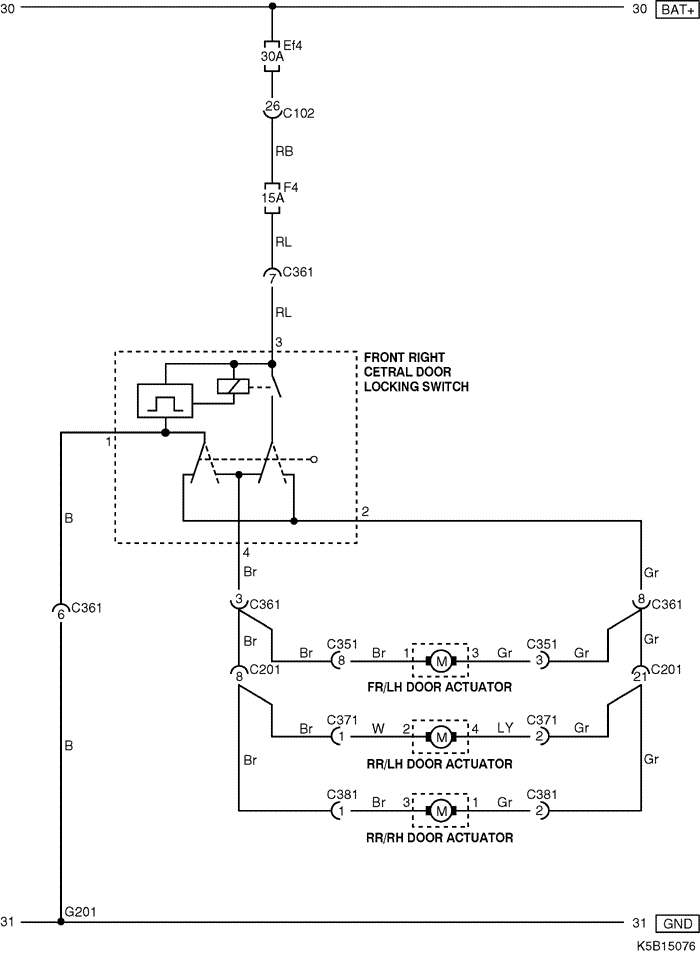

| № РАЗЪЁМА (№ И ЦВЕТ КОНТАКТА) | СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ | ПОЛОЖЕНИЕ РАЗЪЁМА |
| C102 (32 Pin, Gray) | I.P - Engine Fuse Block | Engine Fuse Block |
| C351 (8 Pin, White) | I.P - FR/LH Door | Under Left "A" Pillar |
| C361 (8 Pin, White) | I.P - FR/RH Door | Under Right "A" Pillar |
| C371 (6 Pin, White) | Floor - RR/LH Door | Under Left "B" Pillar |
| C371 ((2) Pin, White) | (2Pin : W/O Power Window) | |
| C381 (6 Pin, White) | Floor - RR/RH Door | Under Right "B" Pillar |
| C381 ((2) Pin, White) | (2Pin : W/O Power Window) | |
| G201 | I.P | Under Right "A" Pillar |

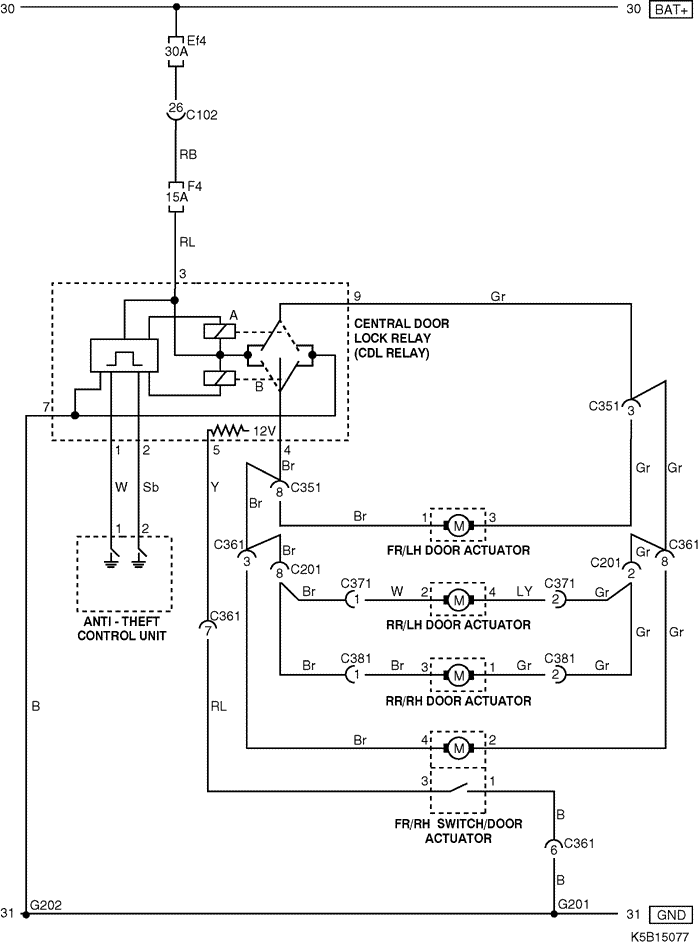

| № РАЗЪЁМА (№ И ЦВЕТ КОНТАКТА) | СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ | ПОЛОЖЕНИЕ РАЗЪЁМА |
| C102 (32 Pin, Gray) | I.P - Engine Fuse Block | Engine Fuse Block |
| C201 (26 Pin, White) | I.P - Floor | Left Driver Leg Room |
| C351 (8 Pin, White) | I.P - FR/LH Door | Under Left "A" Pillar |
| C361 (8 Pin, White) | I.P - FR/RH Door | Under Right "A" Pillar |
| C371 (6 Pin, White) | Floor - RR/LH Door | Under Left "B" Pillar |
| C371 ((2) Pin, White) | (2Pin : W/O Power Window) | |
| C381 (6 Pin, White) | Floor - RR/RH Door | Under Right "B" Pillar |
| C381 ((2) Pin, White) | (2Pin : W/O Power Window) | |
| G201 | I.P | Under Right "A" Pillar |
| G202 | I.P | Under Floor Console |
 |  |
