308-03A Manual Transmission - Vehicles With: 5-Speed Manual Transmission - B5/IB5 2014 Fiesta
Disassembly Procedure revision date: 08/20/2013

Transmission

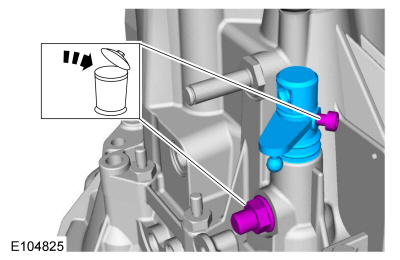

WARNING: Be prepared to collect escaping fluid.

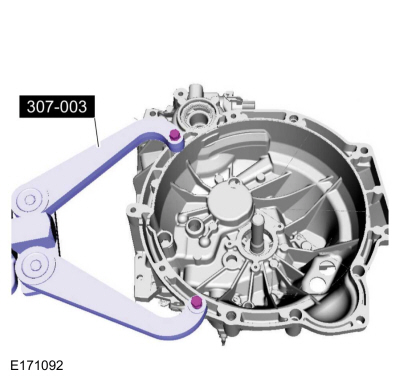

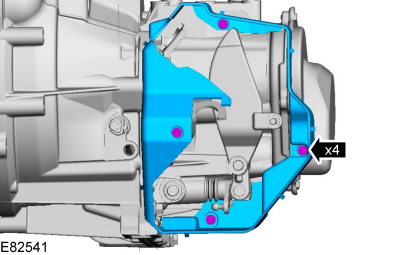

  1. Install Special Service Tool : 307-003 (T57L-500-B) Holding Fixture, Transmission

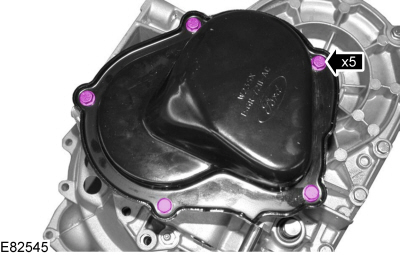

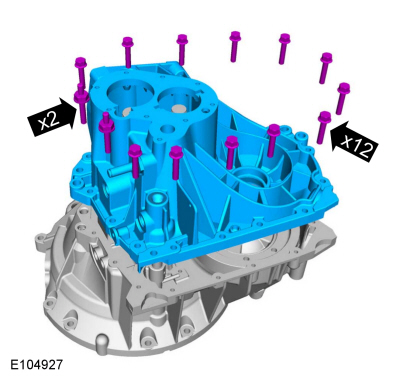

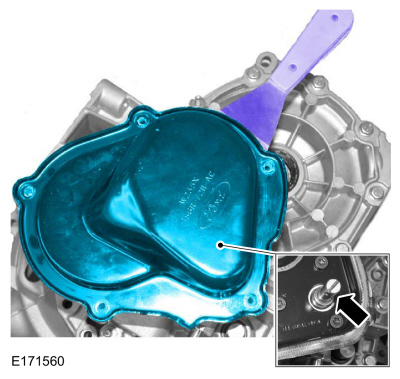

  1. NOTICE: Take extra care not to damage the mating faces.

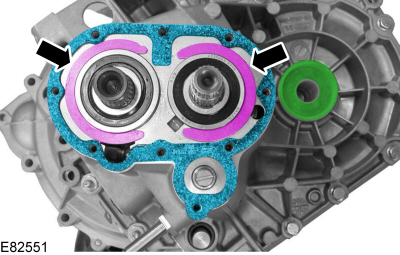

    General Equipment : Scraper for Straight Edges

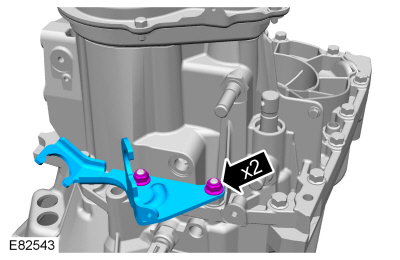

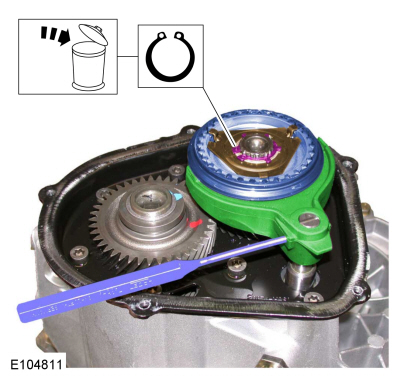

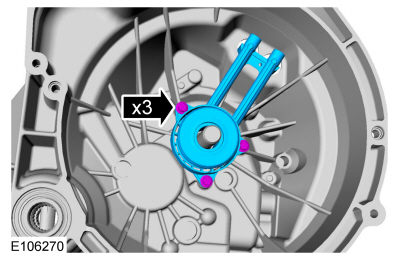

  1. NOTE: Note the position of each component before removal.

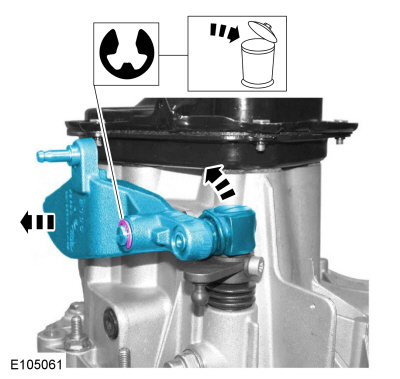

    General Equipment : Punch

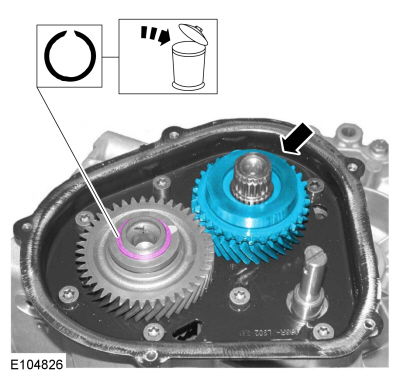

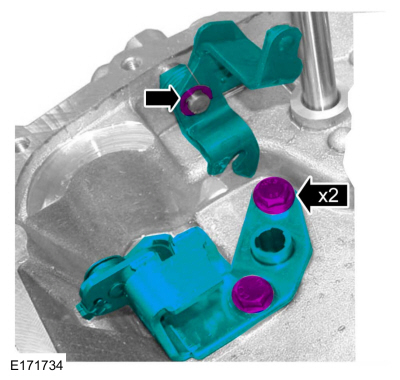

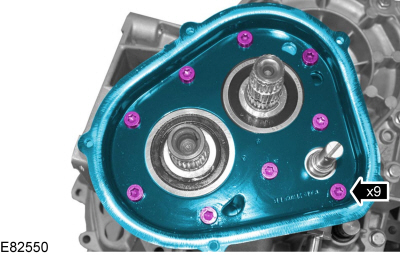

  1. NOTE: Note the position of each component before removal.

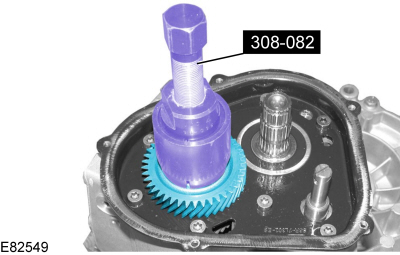

  1. Special Tool(s) : 308-082 Remover, Input Shaft Fifth Gear , 205-D012 (D80L-630-1) Step Plate

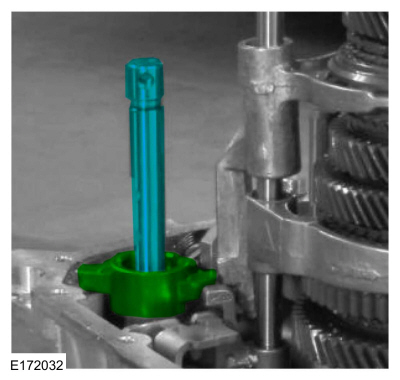

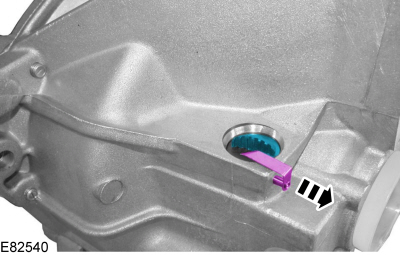

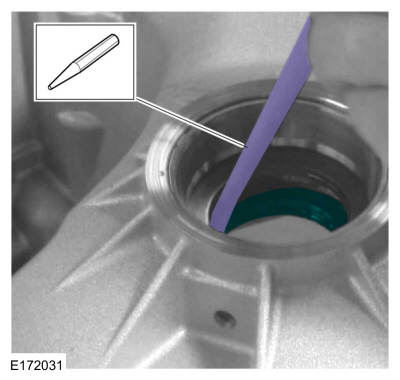

  1. General Equipment : Punch

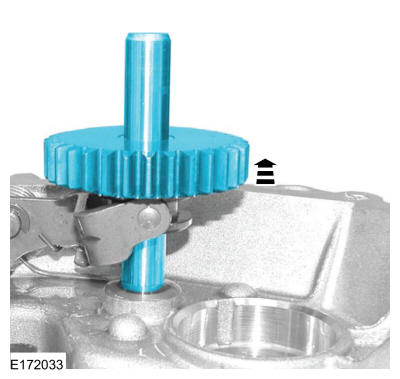

  1. General Equipment : Punch

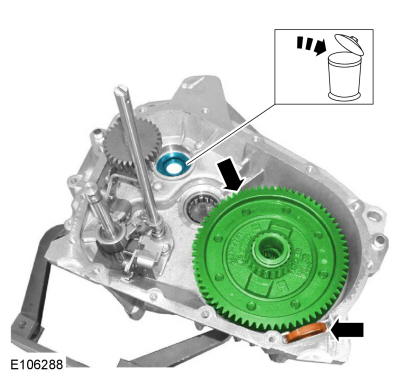

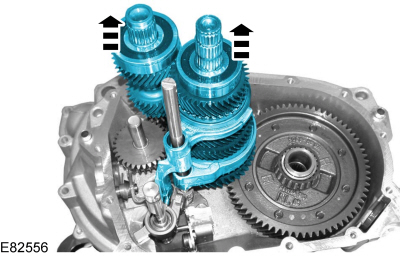

  1. Remove the bearing race.

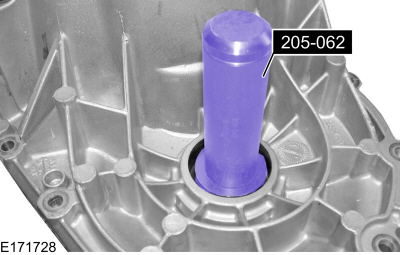

    Special Tool(s) : 205-062 Installer, Differential Bearing

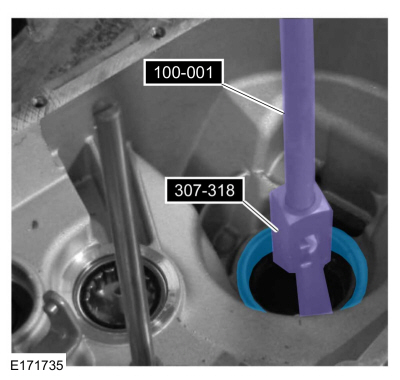

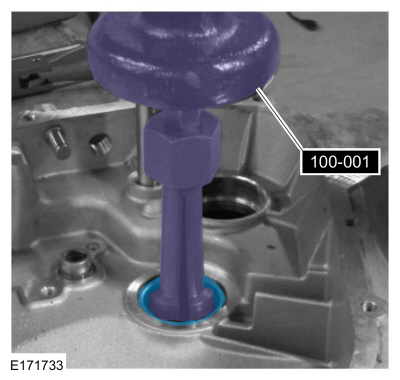

  1. Special Tool(s) : 100-001 (T50T-100-A) Slide Hammer , 307-318 Remover, Stator Bearing

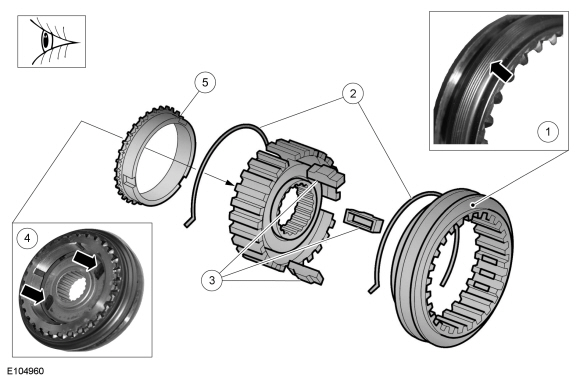

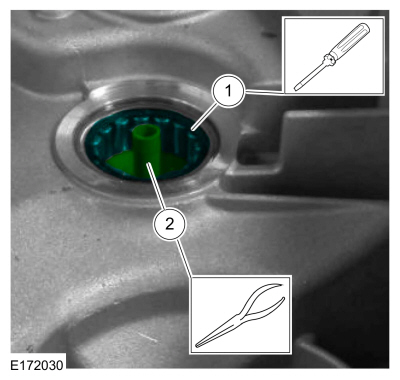

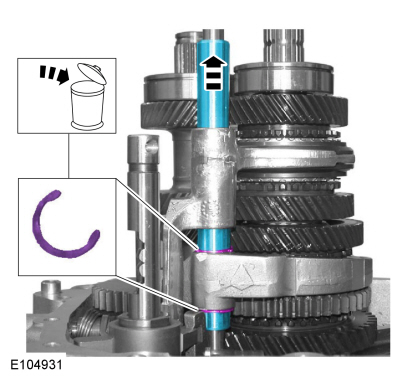

  1. General Equipment : Flat Headed Screw Driver

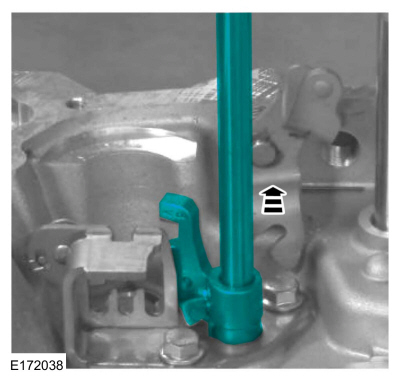

    General Equipment : Long Nose Pliers
  1. Use a commerically available 1-1/2" - 1-3/4" collet.
    Special Tool(s) : 100-001 (T50T-100-A) Slide Hammer
