Parking Brake Cable - 1.6L EcoBoost (132kW/180PS) - Sigma

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

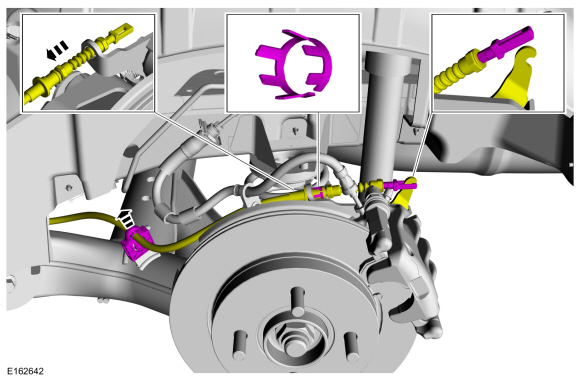

1. Loosen :
     5 turn(s)

1. On both sides.
   Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).


Installation

1. Torque : 25 Nm

1. On both sides.


1. Torque : 40 Nm

1. NOTE: This step requires the aid of another technician.

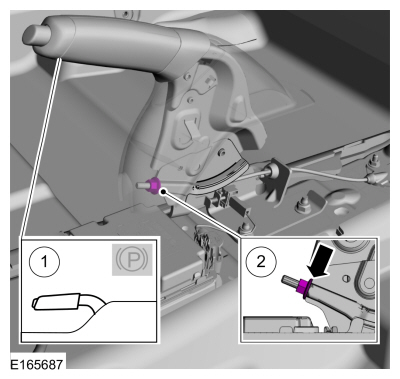

   Tighten the parking brake cable adjustment nut until movement is observed on one of the parking brake levers.


1. NOTE: This step requires the aid of another technician.

   1. Insert a 1 mm feeler gauge between the parking brake lever and the brake caliper abutment, on both sides.

   2. Tighten the parking brake cable adjustment nut until movement is observed on one of the parking brake levers.

   3. Remove the feeler gauges.


1. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
