Wheel Cylinder

Removal

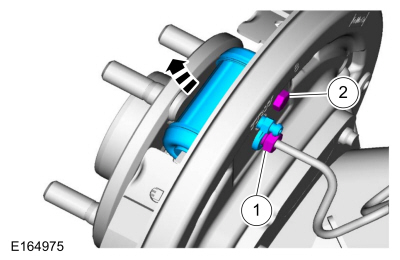

NOTE: Removal steps in this procedure may include installation details.

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Brake Drum (206-02 Drum Brake, Removal and Installation).


1. NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

   • Torque : 18 Nm
   • Torque : 12 Nm

Installation

1. To install, reverse the removal procedure.


1. Refer to: Component Bleeding (206-00 Brake System - General Information, General Procedures).
