303-05B Accessory Drive - 1.6L EcoBoost (132kW/180PS) - Sigma 2014 Fiesta
Removal and Installation Procedure revision date: 05/8/2013

Accessory Drive Belt

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. General Equipment : Trolley Jack
    General Equipment : Wooden Block

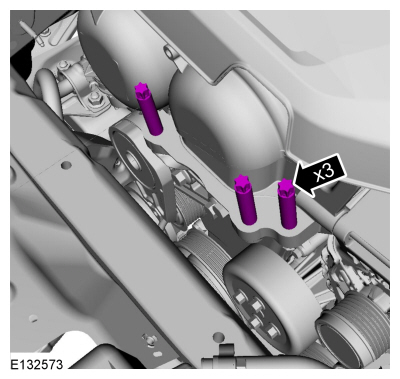

    1. Torque : 80 Nm
    1. Torque : 48 Nm
  1. Torque : 48 Nm

Installation

  1. To install, reverse the removal procedure.
  1. Torque : 10 Nm
