303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) - Sigma 2014 Fiesta
Removal and Installation Procedure revision date: 05/15/2013

Coolant Bypass Solenoid Valve

Removal

NOTE: Removal steps in this procedure may contain installation details.

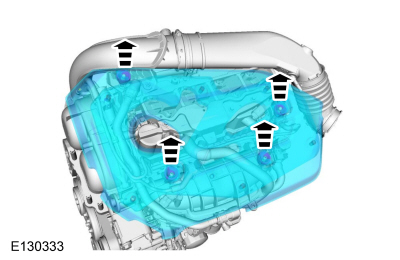

  1. Refer to: Cooling System Draining and Vacuum Filling (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) - Sigma, General Procedures).

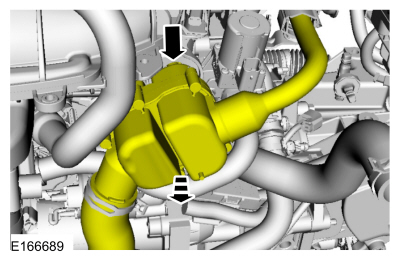

    1. General Equipment : Hose Clamp Remover/Installer

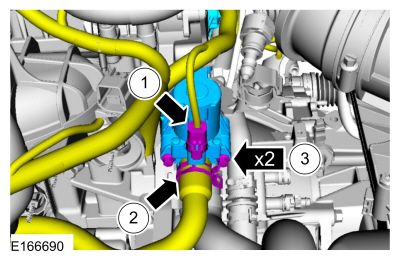

    1. Torque : 10 Nm

Installation

  1. To install, reverse the removal procedure.
