303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) - Sigma 2014 Fiesta
Removal and Installation Procedure revision date: 05/15/2013

Cooling Fan Motor and Shroud

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma, Removal and Installation).
  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

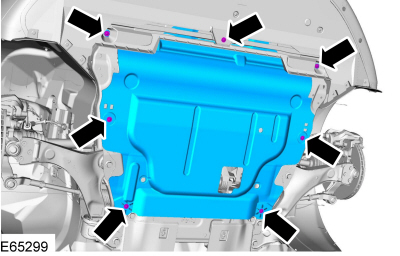

  1. Torque : 15 Nm

Installation

  1. To install, reverse the removal procedure.
