303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) - Sigma 2014 Fiesta
Removal and Installation Procedure revision date: 05/15/2013

Thermostat

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Cooling System Draining and Vacuum Filling (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) - Sigma, General Procedures).
  1. Refer to: Generator - 1.6L EcoBoost (132kW/180PS) - Sigma (414-02 Generator and Regulator, Removal and Installation).

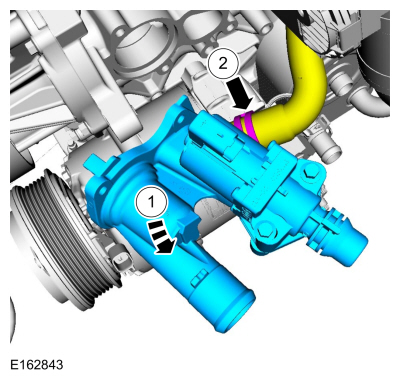

  1. General Equipment : Hose Clamp Remover/Installer
    Torque : 10 Nm

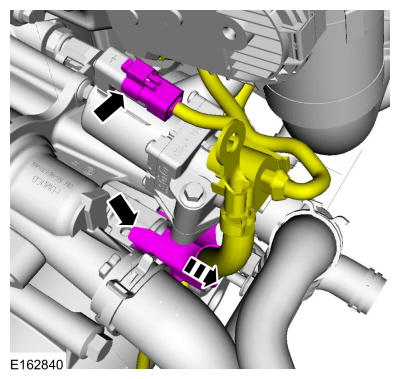

  1. General Equipment : Hose Clamp Remover/Installer

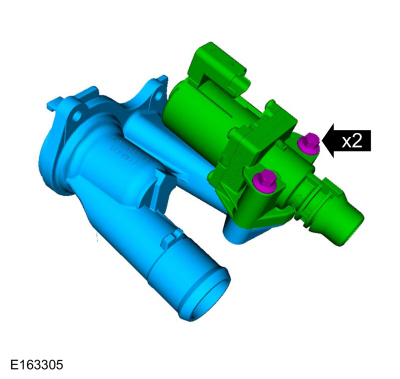

  1. NOTE: This step is only necessary when installing a new component.

    Torque : 10 Nm

Installation

  1. To install, reverse the removal procedure.
