501-16 Wipers and Washers 2014 Fiesta
Removal and Installation Procedure revision date: 05/9/2013

Rear Window Wiper Motor

Removal

NOTE: Removal steps in this procedure may contain installation details.

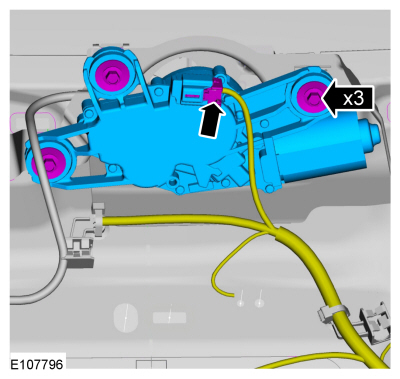

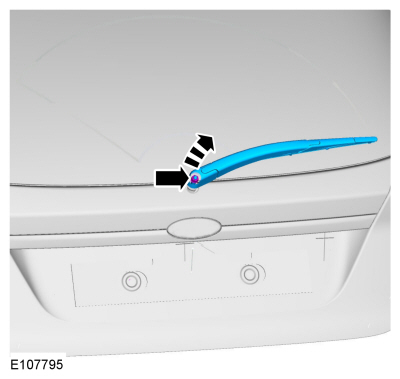

  1. Torque : 15 Nm
  1. Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Torque : 9 Nm

Installation

  1. To install, reverse the removal procedure.
