501-16 Wipers and Washers 2014 Fiesta
Removal and Installation Procedure revision date: 05/9/2013

Windshield Wiper Motor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Cowl Panel (501-02 Front End Body Panels, Removal and Installation).

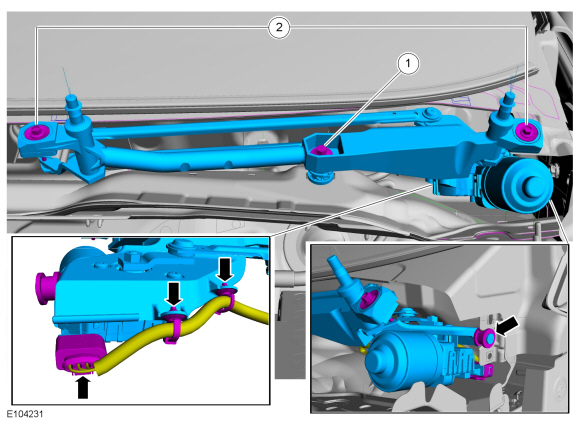

    1. Torque : 24 Nm
    1. Torque : 5 Nm

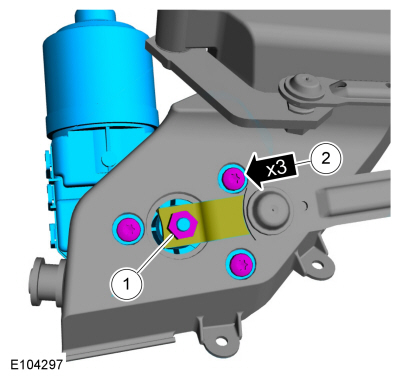

  1. NOTE: Note the position of the component before removal.

    1. Torque : 15 Nm
    1. Torque : 9 Nm

Installation

  1. To install, reverse the removal procedure.
