412-00 Climate Control System - General Information 2014 Fiesta
Removal and Installation Procedure revision date: 05/21/2013

Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Air Conditioning (A/C) Compressor - 1.6L EcoBoost (132kW/180PS) - Sigma (412-00 Climate Control System - General Information, Removal and Installation).
    Refer to: Air Conditioning (A/C) Compressor - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma (412-00 Climate Control System - General Information, Removal and Installation).
  1. Special Tool(s) : 412-134 Holding Tool, Compressor Clutch

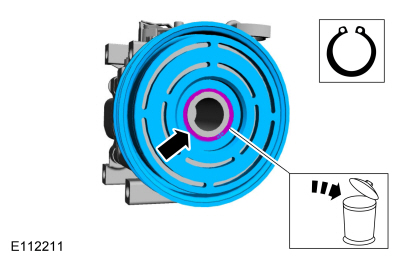

  1. Remove the A/C clutch field coil.

Installation

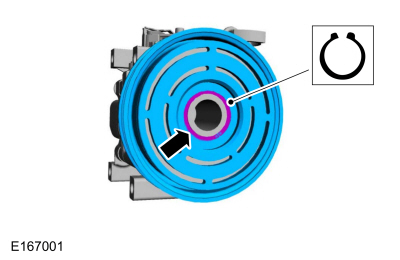

    1. Install the A/C clutch field coil.

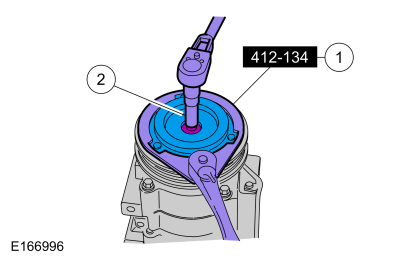

    1. Special Tool(s) : 412-134 Holding Tool, Compressor Clutch
    1. Torque : 13 Nm
  1. Refer to: Air Conditioning (A/C) Clutch Air Gap Adjustment (412-00 Climate Control System - General Information, General Procedures).
  1. Refer to: Air Conditioning (A/C) Compressor - 1.6L EcoBoost (132kW/180PS) - Sigma (412-00 Climate Control System - General Information, Removal and Installation).
    Refer to: Air Conditioning (A/C) Compressor - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma (412-00 Climate Control System - General Information, Removal and Installation).
