501-20B Supplemental Restraint System 2014 Fiesta
Removal and Installation Procedure revision date: 04/30/2013

Front Door Side Impact Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Depower the SRS .
    Refer to: Supplemental Restraint System (SRS) Depowering and Repowering (501-20B Supplemental Restraint System, General Procedures).
  1. Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation) .

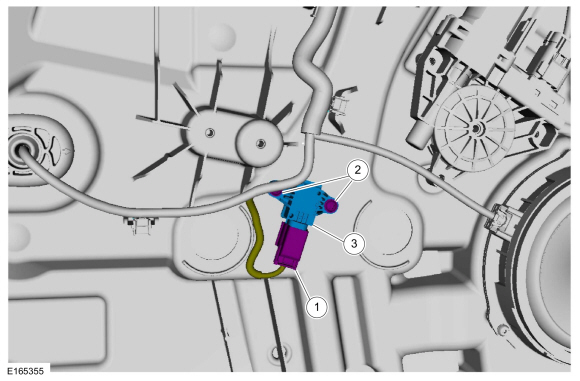

  1. Torque : 2 Nm

Installation

  1. NOTE: Make sure the door and side impact sensor mating surfaces are clean and free of foreign material.

    To install, reverse the removal procedure.
  1. Repower the SRS .
    Refer to: Supplemental Restraint System (SRS) Depowering and Repowering (501-20B Supplemental Restraint System, General Procedures).
