Hydraulic Control Unit (HCU)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. If installing a new HCU / ABS module, connect the scan tool and upload the module configuration information from the ABS module.
   Refer to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation).

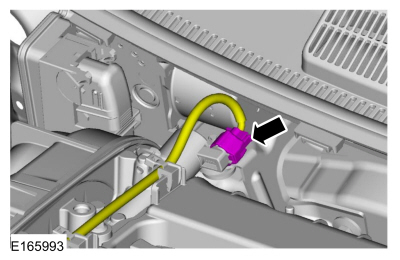

1. Torque : 8 Nm

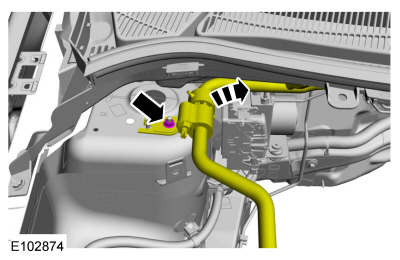

1. 1. Torque : 18 Nm

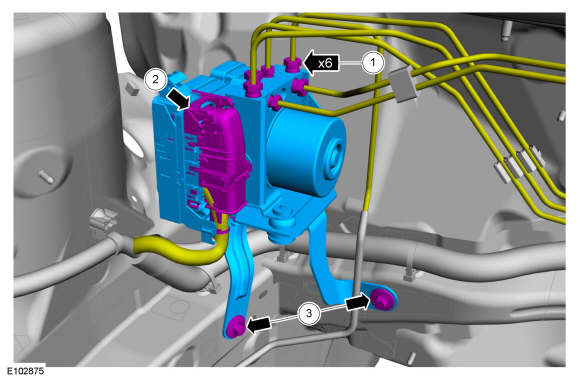

   3. Torque : 23 Nm

Installation

1. To install, reverse the removal procedure.


1. If a new HCU / ABS module was installed, download the module configuration information from the scan tool.
   Refer to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation).


1. Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures).
