Roof Opening Panel Motor

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).


1. Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

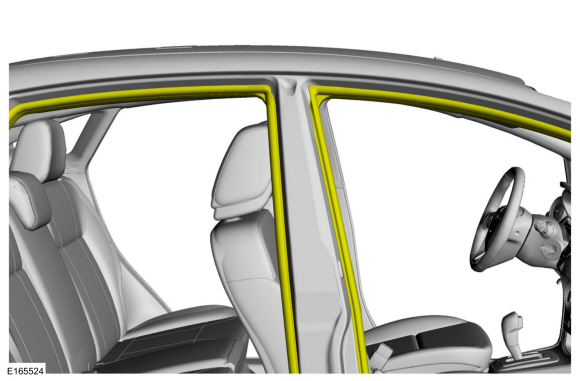

1. Both sides.

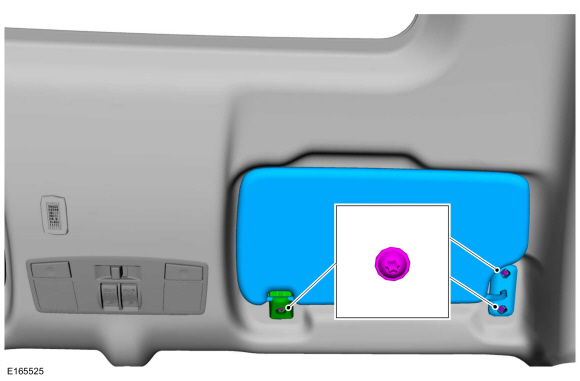

1. Both sides.

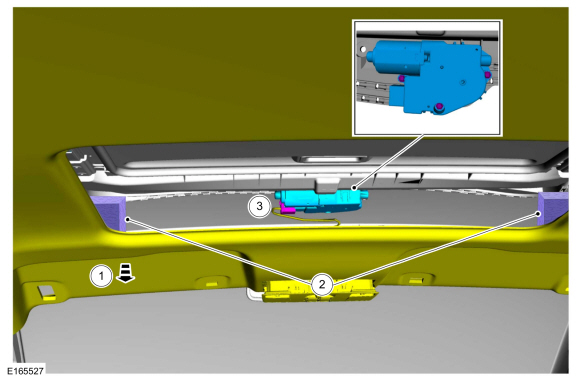

1. General Equipment : Interior Trim Remover

1. Torque : 3 Nm

Installation

1. NOTE: When installing the roof opening panel motor, it may be necessary to turn the roof opening panel motor slightly to engage the drive splines.

   To install, reverse the removal procedure


1. Refer to: Power Roof Opening Panel Initialization (501-17 Roof Opening Panel, General Procedures).
