Roof Opening Panel Frame

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Headliner - Vehicles With: 4-Door (501-05 Interior Trim and Ornamentation, Removal and Installation).
   Refer to: Headliner - Vehicles With: 5-Door (501-05 Interior Trim and Ornamentation, Removal and Installation).


Installation

1. To install, reverse the removal procedure.

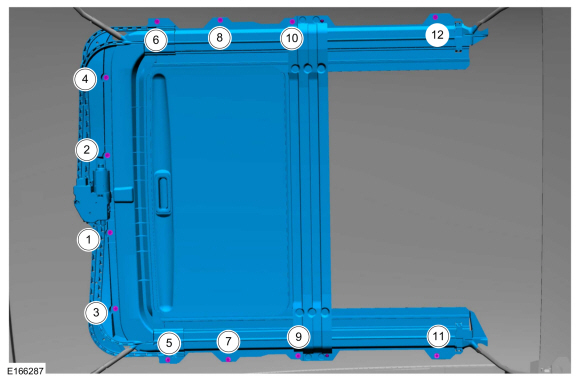

1. Tighten the retaining bolts in the sequence shown.
   Torque : 9 Nm

1. Refer to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures).


1. Refer to: Power Roof Opening Panel Initialization (501-17 Roof Opening Panel, General Procedures).
