| 303-00 Engine System - General Information
|
2014 Fiesta
|
| General Procedures
|
Procedure revision date:
03/27/2013
|
Piston Diameter
NOTE:
Refer to the appropriate Section 303-01 for the specification.
-

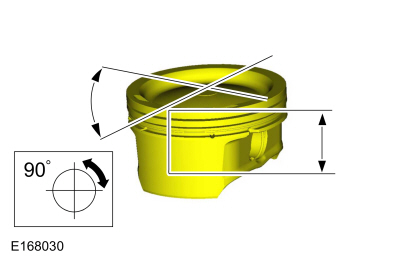

Measure the piston diameter (at the measuring window) 90 degrees from the piston pin and 35.35 mm (1.39 in) down from the
top of the piston at the point indicated.
