204-02 Rear Suspension 2014 Fiesta
Removal and Installation Procedure revision date: 05/25/2012

Rear Shock Absorber

Removal

  1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

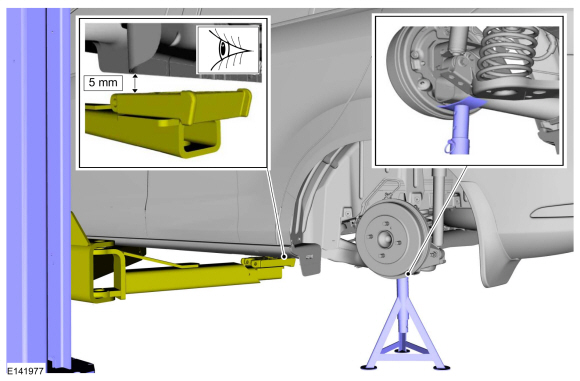

  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

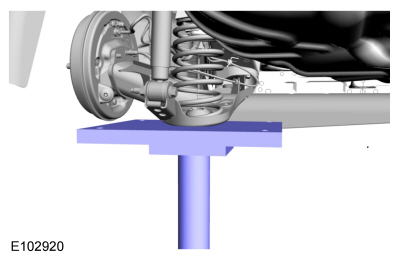

  1. General Equipment : Transmission Jack

Installation

  1. NOTE: Only tighten the nuts finger tight at this stage.

  1. Torque : 25 Nm
  1. On both sides.
    General Equipment : Vehicle/Axle Stands
  1. Torque : 115 Nm
  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
