Front Strut and Spring Assembly

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

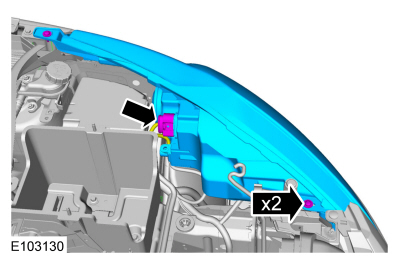

NOTE: This step is only necessary when installing a new component to the left-hand side.

NOTE: This step is only necessary when installing a new component to the left-hand side.

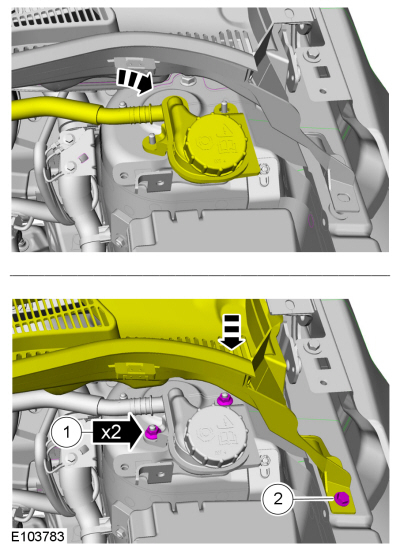

1. 1. Torque : 25 Nm
   2. Torque : 15 Nm

1. Torque : 30 Nm

1. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

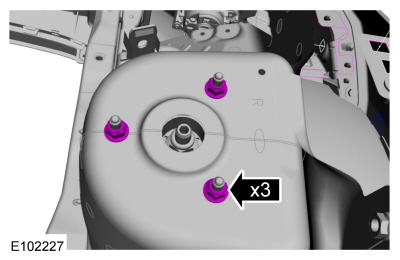

1. Torque : 48 Nm

1. Torque : 26 Nm

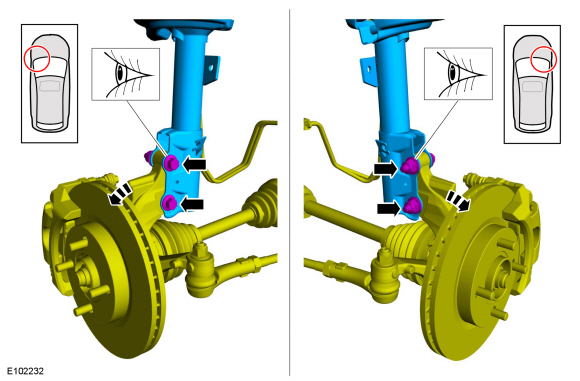

1. Torque :
     Stage 1:  82 Nm
     Stage 2:  90°

Installation

1. To install, reverse the removal procedure.


1. Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
