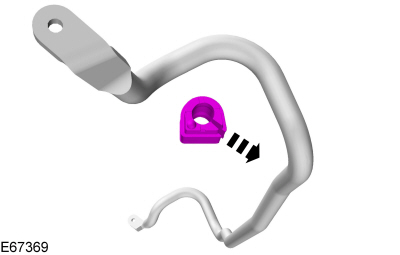

Front Stabilizer Bar Bushing

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

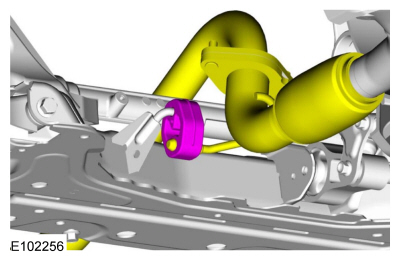

1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

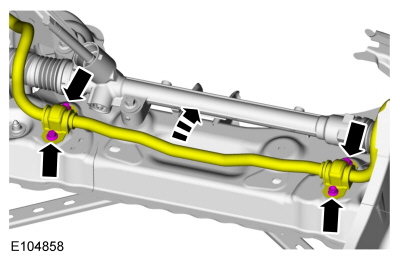

1. Torque : 48 Nm

1. NOTE: Note the position of each component before removal.

Installation

1. NOTE: Make sure that the mating faces are clean and free of foreign material.

   NOTE: Make sure that these components are installed to the noted removal position.

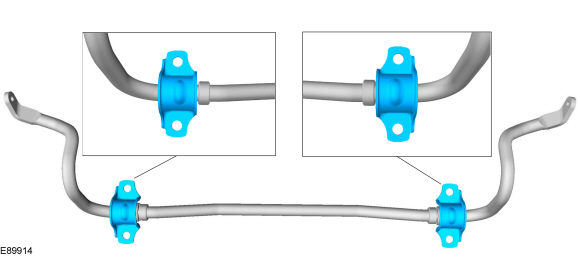

1. NOTE: Make sure that the clamp is installed to the same orientation as when removed.

   On both sides.


1. To install, reverse the removal procedure.
