electrical wiring diagram 2005 tacuma-rezzo 7. FULL AUTOMATIC TEMPERATURE CONTROL (FATC)
7. FULL AUTOMATIC TEMPERATURE CONTROL (FATC)
1) motor (intake, mode & blower) & power tr circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C204 (12 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C205 (14 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C206 (3 Pin, Brown) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C212 (18 Pin, Blue) | Front – IP | Left Upper the Driver Leg Room |
| C213 (7 Pin, Gray) | Front – IP | Left Upper the Driver Leg Room |
| C219 (15 Pin, White) | IP – FATC | Upper the Evaporator Housing |
| S101 (White) | Front | Inside the Engine Fuse Block |
| S206 (Violet) | IP | Rear Left Instrument Panel |
| G102 | Front | Behind the Left Headlamp |
| G203 | IP | Under Right Ashtray |

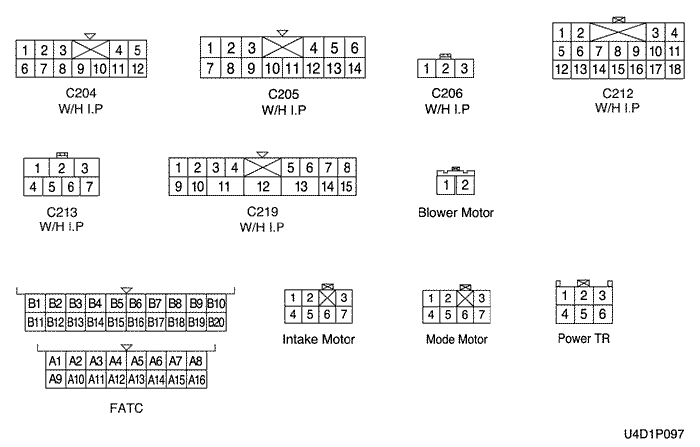

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s101
s206
2) air mix door motor, a/c comp. & SENSOR (AMBIENT, SUN, WATER & INCAR) CIRCUIT (MR-140, SIRIUS D4)
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C101 (15 Pin, Black) | Engine – Front | Behind the Left Headlamp |
| C102 (16 Pin, Black) | Engine – Front | Behind the Left Headlamp |
| C203 (22 Pin, White) | I/P Fuse Block - IP | Front the I/P Fuse Block |
| C205 (14 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C207 (22 Pin, White) | I/P Fuse Block - Front | Behind the I/P Fuse Block |
| C209 (1 Pin, Colorless) | I/P Fuse Block – Front | Behind the I/P Fuse Block |
| C212 (18 Pin, Blue) | Front – IP | Left Upper the Driver Leg Room |
| C214 (26 Pin, Yellow) | Front – IP | Left Upper the Driver Leg Room |
| C217 (22 Pin, White) | IP – TCM | Center Upper the Driver Leg Room |
| C219 (15 Pin, White) | IP – FATC | Upper the Evaporator Housing |
| S206 (Violet) | IP | Rear Left Instrument Panel |

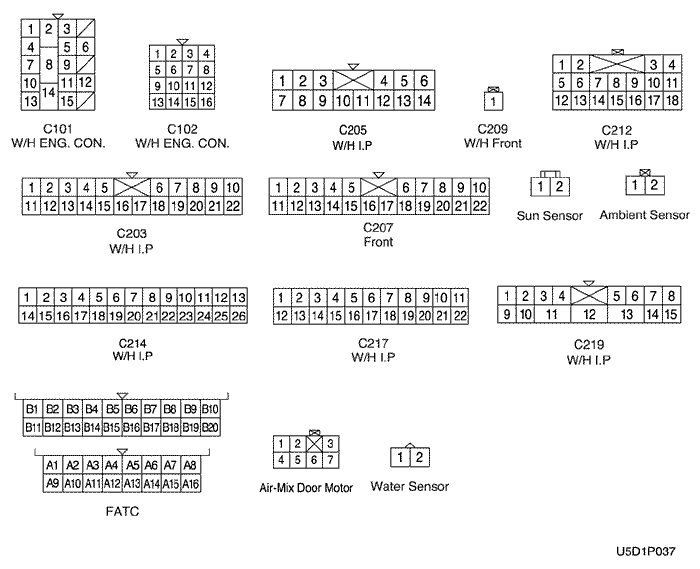

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s206
3) air mix door motor, a/c comp. & SENSOR (AMBIENT, SUN, WATER & INCAR) CIRCUIT (ITMS-6F)
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C101 (15 Pin, Black) | Engine – Front | Behind the Left Headlamp |
| C106 (16 Pin, Black) | Engine - ECM | Right Upper The Driver Leg Room |
| C107 (16 Pin, Black) | Engine - ECM | Right Upper The Driver Leg Room |
| C205 (14 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C209 (1 Pin, Colorless) | I/P Fuse Block – Front | Behind the I/P Fuse Block |
| C212 (18 Pin, Blue) | Front – IP | Left Upper the Driver Leg Room |
| C214 (26 Pin, Yellow) | Front – IP | Left Upper the Driver Leg Room |
| C217 (22 Pin, White) | IP – TCM | Center Upper the Driver Leg Room |
| C219 (15 Pin, White) | IP – FATC | Upper the Evaporator Housing |
| C225 (8 Pin, White) | IP – ECM | Center Upper The Driver Leg Room |
| S206 (Violet) | IP | Rear Left Instrument Panel |

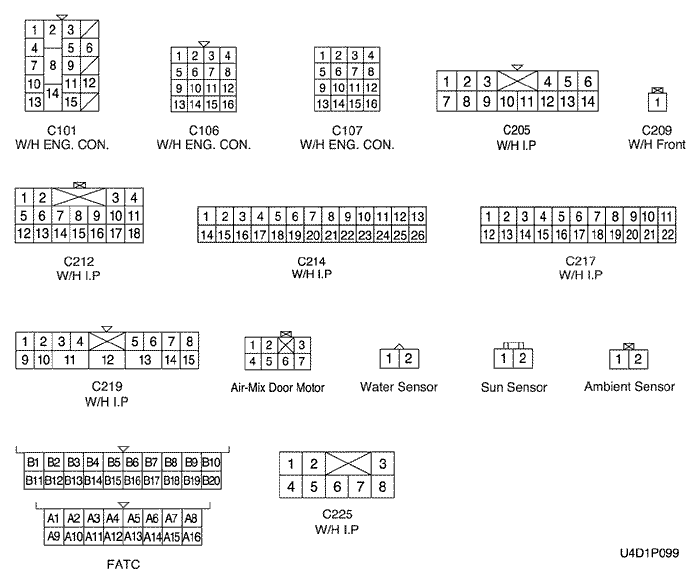

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s206
