4. ECM (ENGINE CONTROL MODULE) - 2.0D (ITMS-6F)

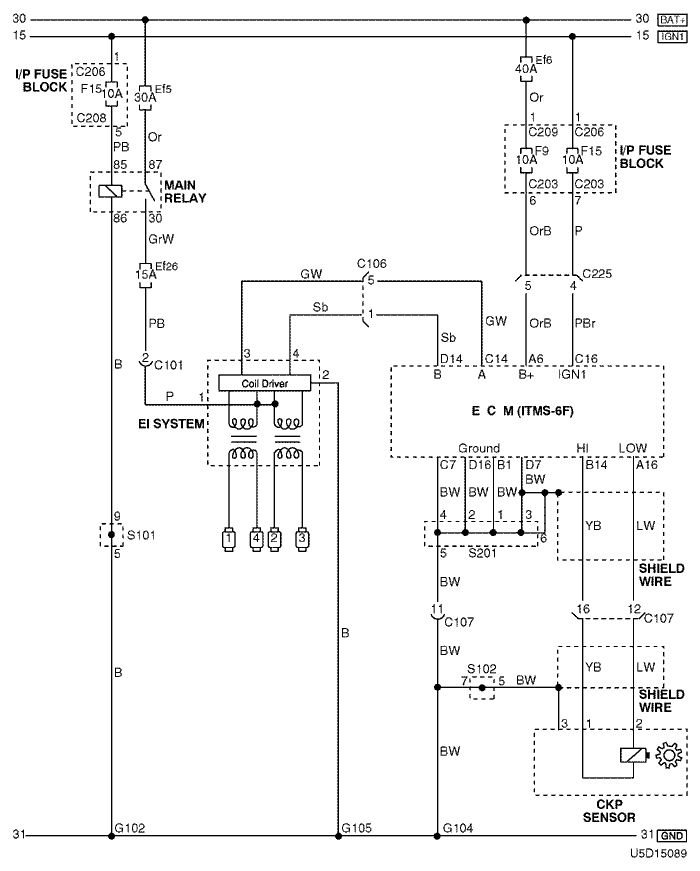

1) battery power supply, ground, ei system & ckp sensor circuit

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C106 (16 pin, Black) Engine - ECM Right Upper The Driver Leg Room
C107 (16 pin, Black) Engine - ECM Right Upper The Driver Leg Room
C203 (22 pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C209 (1 Pin, Colorless) I/P Fuse Block – Front Behind the I/P Fuse Block
C225 (8 Pin, White) I/P - ECM Center Upper the Driver Leg Room
S101 (White) Front Inside the Engine Fuse Block
S102 (Black) Engine Rear Intake Manifold
S201 (Colorless) ECM Left Upper the Driver Leg Room
G102 Front Behind the Left Headlamp
G104 Engine Under the Intake Manifold
G105 Engine Left the Starter Motor Behind Engine Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


d. SPLICE PACK

s101

Display graphicTranslations of text in graphics


s102 (itms-6f)

Display graphicTranslations of text in graphics


s201 (itms-6f)

Display graphicTranslations of text in graphics

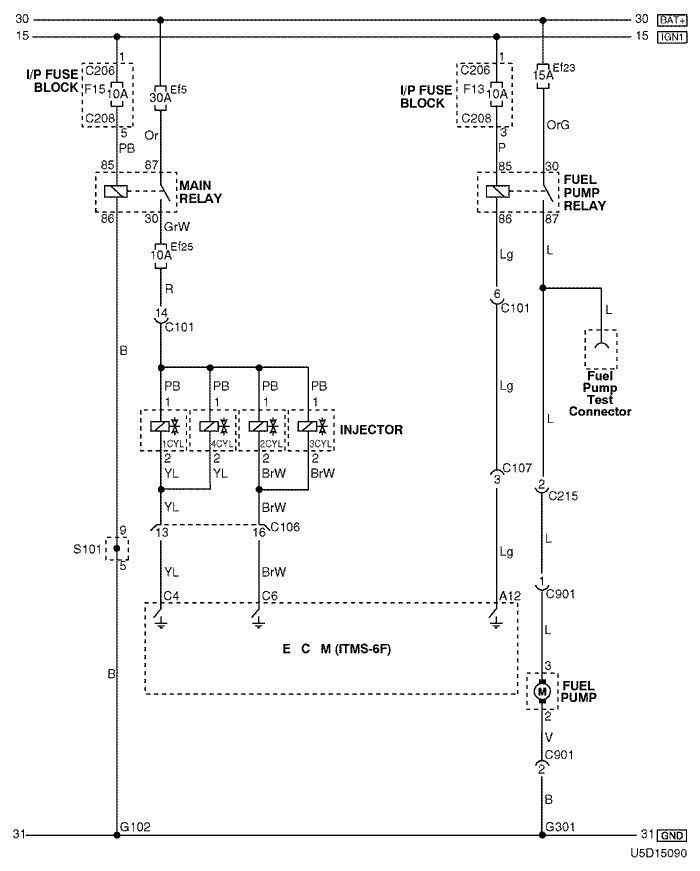

2) fuel pump & injector circuit

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C106 (16 pin, Black) Engine - ECM Right Upper The Driver Leg Room
C107 (16 pin, Black) Engine - ECM Right Upper The Driver Leg Room
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C215 (16 Pin, White) Floor – Front Under the I/P Fuse Block
C901 (6 Pin, Black) Fuel Tank – Floor Behind the Fuel Tank
S101 (White) Front Inside the Engine Fuse Block
G102 Front Behind the Left Headlamp
G301 Floor Under the Driver Room Floor

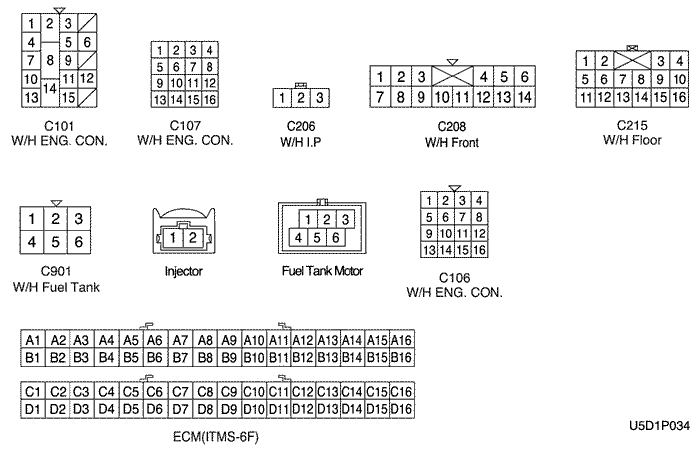

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

s101

Display graphicTranslations of text in graphics

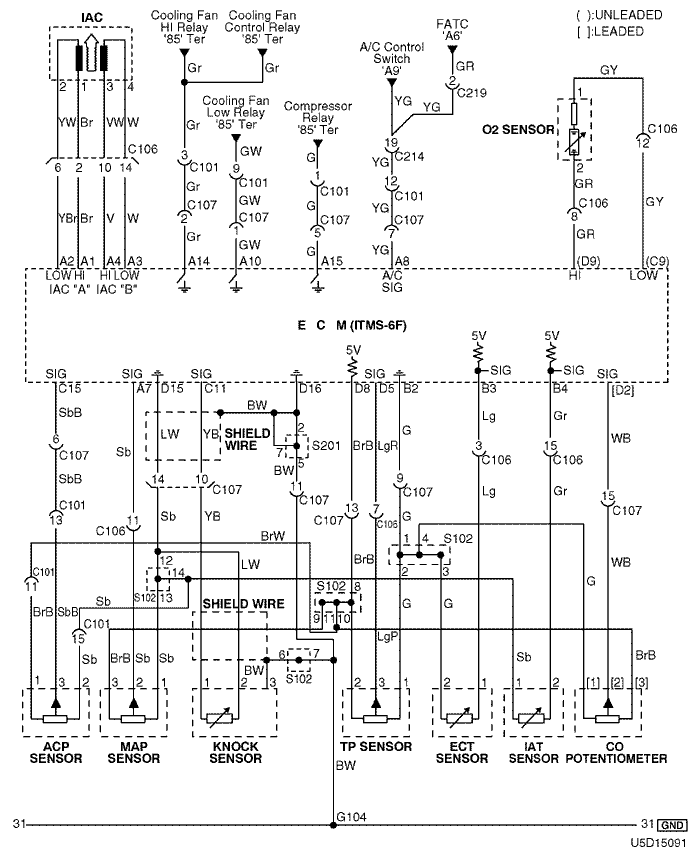

3) sensor (iac, acp, tp, ect, iat, co potentiometer & ks) circuit

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C106 (16 pin, Black) Engine - ECM Right Upper The Driver Leg Room
C107 (16 pin, Black) Engine - ECM Right Upper The Driver Leg Room
C214 (26 pin, Yellow) Front – IP Left Upper the Driver Leg Room
C219 (15 Pin, White) IP – FATC Upper the Evaporator Housing
S102 (Black) Engine Rear Intake Manifold
S201 (Colorless) ECM Left Upper the Driver Leg Room
G104 Engine Under the Intake Manifold

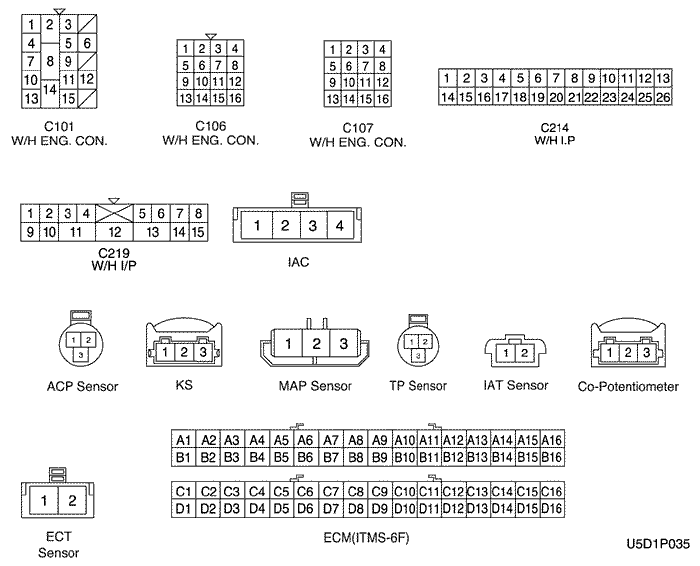

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


d. SPLICE PACK

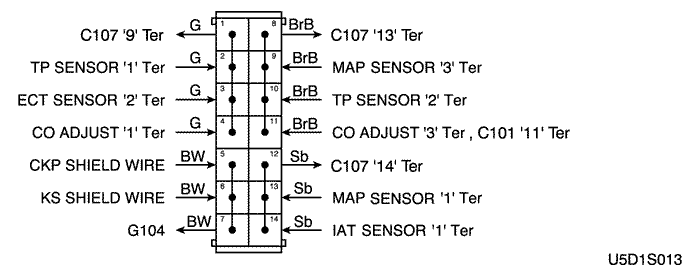

s102 (itms-6f)

Display graphicTranslations of text in graphics


s201 (itms-6f)

Display graphicTranslations of text in graphics

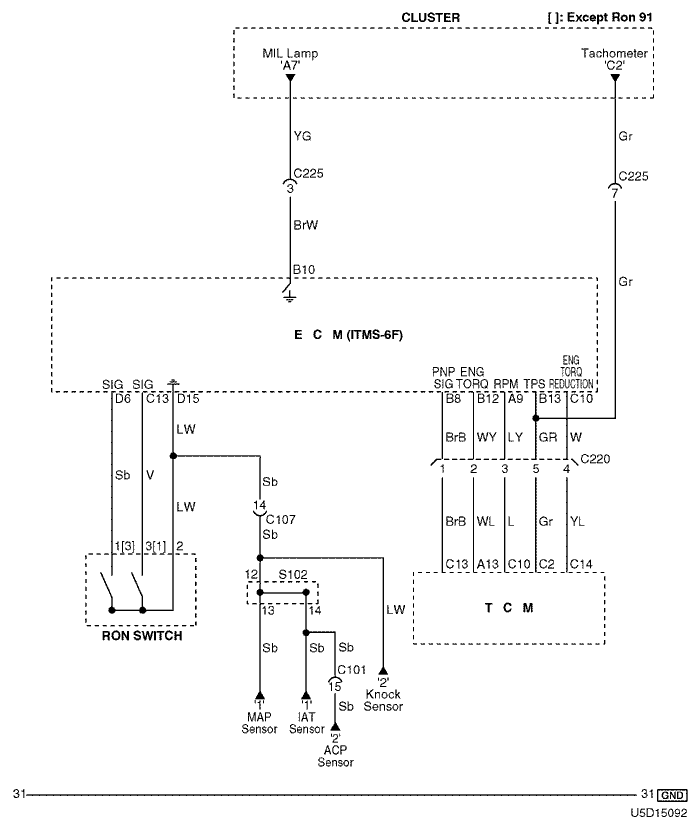

4) indicator (mil lamp & tachometer), ron switch & tcm circuit

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C107 (16 pin, Black) Engine - ECM Right Upper The Driver Leg Room
C220 (6 pin, White) ECM – TCM Right Center the Driver Leg Room
C225 (8 pin, White) IP – ECM Center Upper The Driver Leg Room
S102 (Black) Engine Rear Intake Manifold

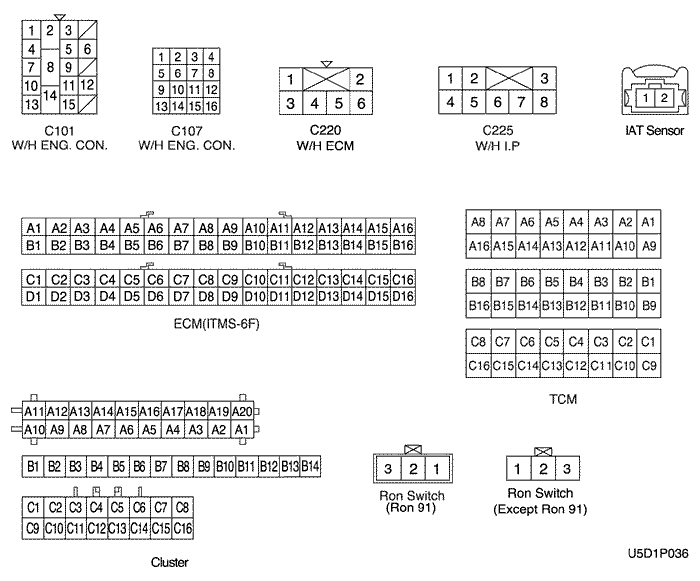

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

s102 (itms-6f)

Display graphicTranslations of text in graphics

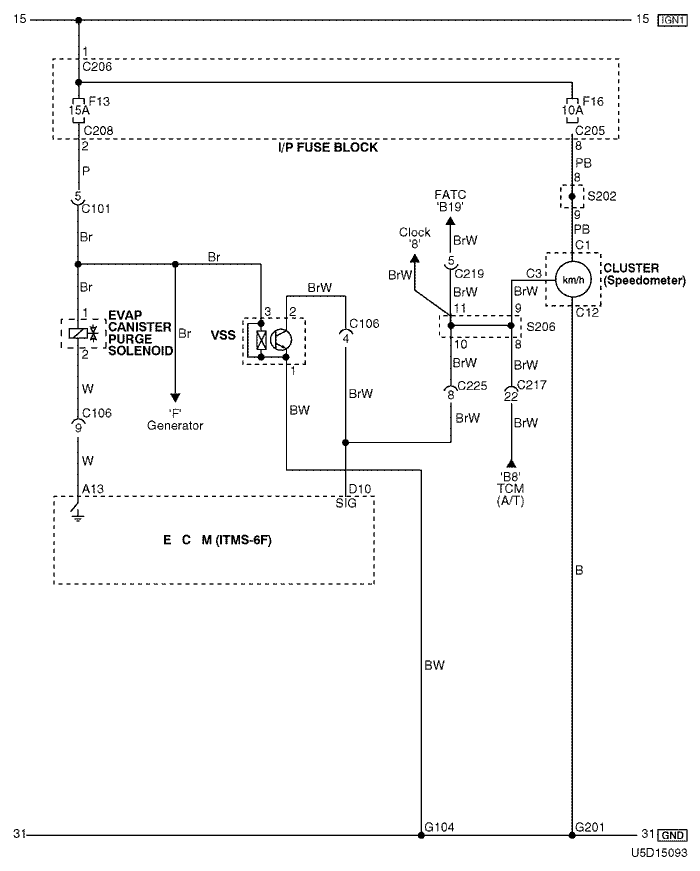

5) evap canister purge solenoid & vss circuit

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C101(15 Pin, Black) Engine – Front Behind the Left Headlamp
C106 (16 pin, Black) Engine - ECM Right Upper The Driver Leg Room
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C214 (26 pin, Yellow) Front – IP Left Upper the Driver Leg Room
C217 (22 Pin, White) IP – TCM Center Upper the Driver Leg Room
C219 (15 Pin, White) IP – FATC Upper the Evaporator Housing
C225 (8 pin, White) IP – ECM Center Upper The Driver Leg Room
S202 (Orange) IP Rear Right Instrument Panel
S206 (Violet) IP Rear Left Instrument Panel
G104 Engine Under the Intake Manifold
G201 IP Rear Right Instrument Panel

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

s202

Display graphicTranslations of text in graphics


s206

Display graphicTranslations of text in graphics

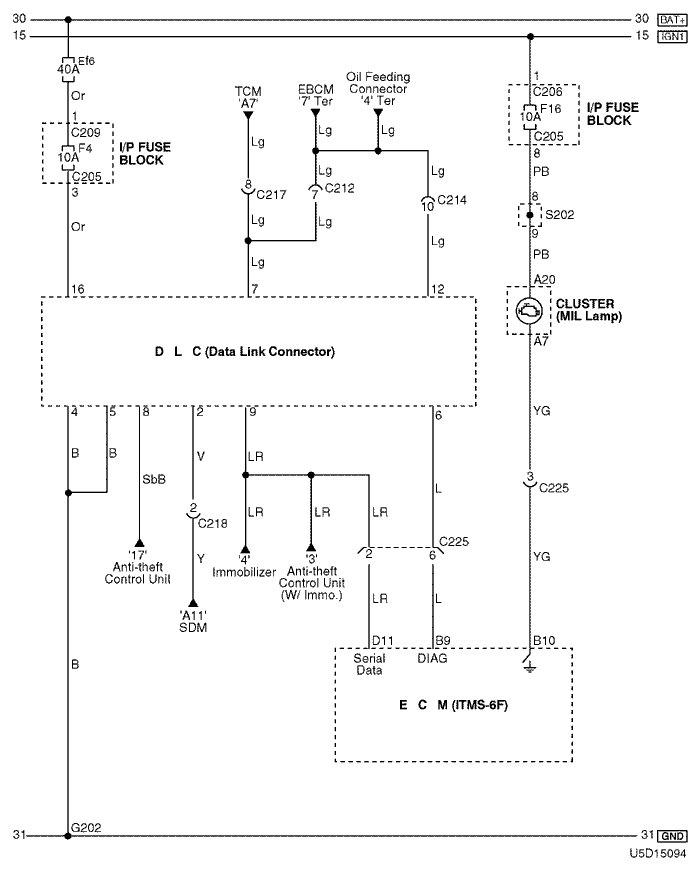

6) dlc (data link connector) circuit

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C209 (1 Pin, Colorless) I/P Fuse Block – Front Behind the I/P Fuse Block
C214 (26 pin, Yellow) Front – IP Left Upper the Driver Leg Room
C217 (22 Pin, White) IP – TCM Center Upper the Driver Leg Room
C218 (4 Pin, White) Air Bag – IP Right Upper the Driver Leg Room
C225 (8 pin, White) IP – ECM Center Upper The Driver Leg Room
S202 (Orange) IP Rear Right Instrument Panel
G202 IP Rear Right Ashtray

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

s202

Display graphicTranslations of text in graphics


sm
