electrical wiring diagram 2005 tacuma-rezzo 29. HEATING MAT CIRCUIT

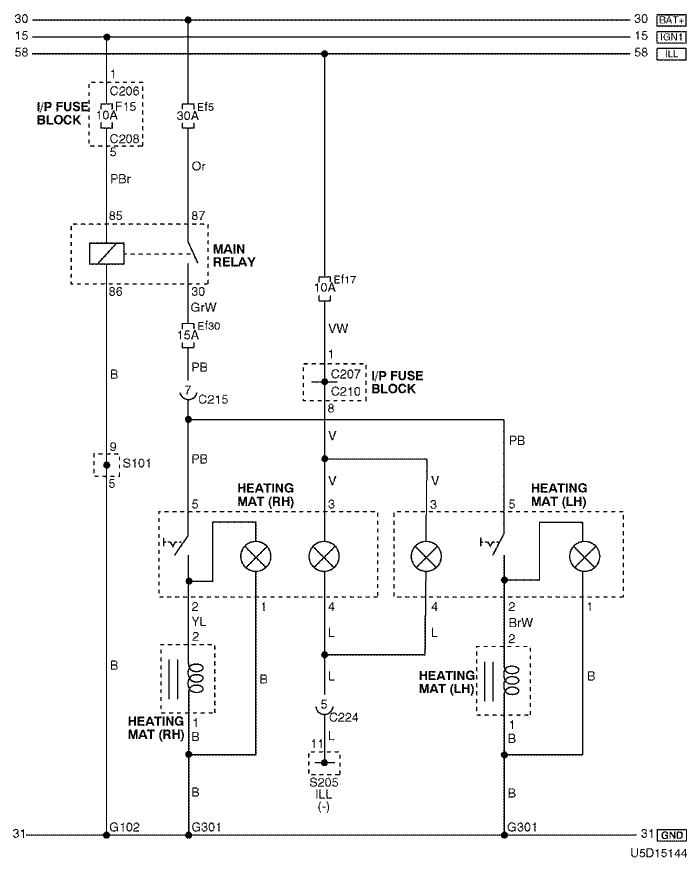

29. HEATING MAT CIRCUIT
1) mr-140 & itms-6f
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C206 (3 Pin, Brown) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C207 (22 Pin, White) | I/P Fuse Block – Front | Behind the I/P Fuse Block |
| C208 (14 Pin, White) | I/P Fuse Block – Front | Behind the I/P Fuse Block |
| C210 (18 Pin, White) | I/P Fuse Block – Floor | Behind the I/P Fuse Block |
| C215 (16 Pin, White) | Floor – Front | Under the I/P Fuse Block |
| C224 (14 Pin, White) | IP – Floor | Under the Door Lock Unit |
| S101 (White) | Front | Inside the Engine Fuse Block |
| S205 (Orange) | IP | Rear Center Instrument Panel |
| G102 | Front | Behind the Left Headlamp |
| G301 | Floor | Under the Driver Room Floor |

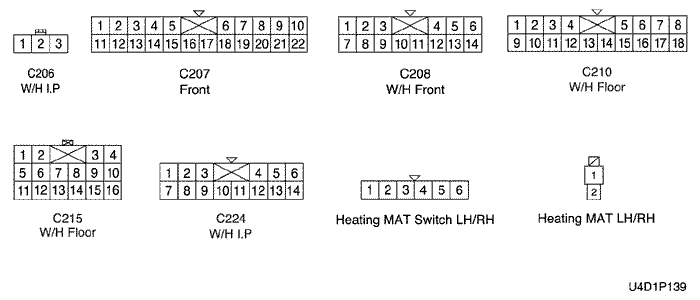

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s101
s205
2) sirius d4
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C102 (16 Pin, Black) | Engine – Front | Behind the Left Headlamp |
| C207 (22 Pin, White) | I/P Fuse Block – Front | Behind the I/P Fuse Block |
| C210 (18 Pin, White) | I/P Fuse Block – Floor | Behind the I/P Fuse Block |
| C215 (16 Pin, White) | Floor – Front | Under the I/P Fuse Block |
| C224 (14 Pin, White) | IP – Floor | Under the Door Lock Unit |
| S205 (Orange) | IP | Rear Center Instrument Panel |
| G301 | Floor | Under the Driver Room Floor |

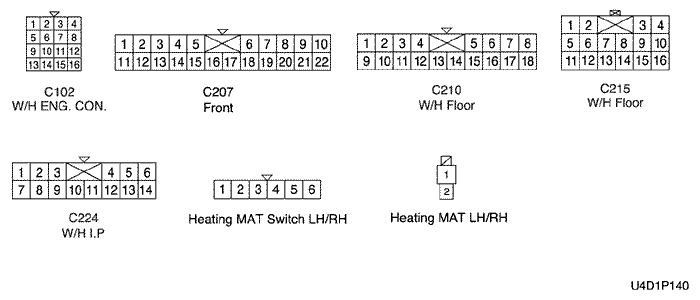

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s205
sm
