28. ANTI-THEFT CONTROL SYSTEM CIRCUIT

1) only anti-theft

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C203 (22 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C204 (12 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C209 (1 Pin, Colorless) I/P Fuse Block – Front Behind the I/P Fuse Block
C212 (18 Pin, Blue) Front – IP Left Upper the Driver Leg Room
C214 (26 Pin, Yellow) Front – IP Left Upper the Driver Leg Room
C224 (14 Pin, White) IP – Floor Under the Door Lock Unit
C351 (29 Pin, White) Floor – Co-Driver Door Inside Light 'A' Pillar
C361 (29 Pin, White) Floor – Driver Door Inside Right 'A' Pillar
C401 (10 Pin, White) Tailgate – Floor Behind the Rear Quarter Glass
C404 (8 Pin, White) Tailgate – Tailgate, AUX Left Under Tailgate Behind the Tail Lamp
S101 (White) Front Inside the Engine Fuse Block
S202 (Orange) IP Rear Right Instrument Panel
S205 (Orange) IP Rear Center Instrument Panel
S301 (Black) Floor Under the Driver Crossmember Panel
G102 Front Behind the Left Headlamp
G201 IP Rear Right Instrument Panel
G203 IP Under Right Ashtray
G301 Floor Under the Driver Room Floor
G405 Tailgate, Aux Under the Rear Wiper Motor

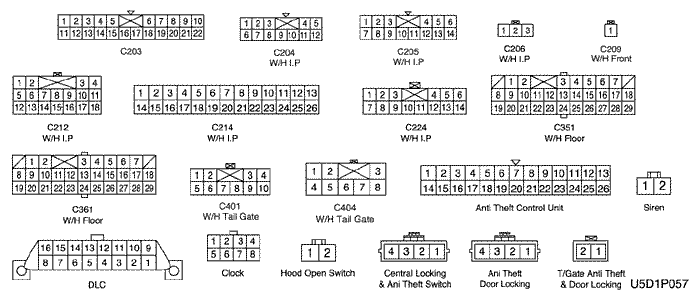

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


d. SPLICE PACK

s101

Display graphicTranslations of text in graphics


s202

Display graphicTranslations of text in graphics


s205

Display graphicTranslations of text in graphics


s301

Display graphicTranslations of text in graphics


2) with immobilizer

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C203 (22 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C204 (12 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C209 (1 Pin, Colorless) I/P Fuse Block – Front Behind the I/P Fuse Block
C212 (18 Pin, Blue) Front – IP Left Upper the Driver Leg Room
C214 (26 Pin, Yellow) Front – IP Left Upper the Driver Leg Room
C224 (14 Pin, White) IP – Floor Under the Door Lock Unit
C225 (8 Pin, White) IP – ECM Center Upper The Driver Leg Room
C351 (29 Pin, White) Floor – Co-Driver Door Inside Light 'A' Pillar
C361 (29 Pin, White) Floor – Driver Door Inside Right 'A' Pillar
C401 (10 Pin, White) Tailgate – Floor Behind the Rear Quarter Glass
C404 (8 Pin, White) Tailgate – Tailgate, AUX Left Under Tailgate Behind the Tail Lamp
S101 (White) Front Inside the Engine Fuse Block
S202 (Orange) IP Rear Right Instrument Panel
S205 (Orange) IP Rear Center Instrument Panel
S301 (Black) Floor Under the Driver Crossmember Panel
G102 Front Behind the Left Headlamp
G201 IP Rear Right Instrument Panel
G301 Floor Under the Driver Room Floor
G405 Tailgate, Aux Under the Rear Wiper Motor

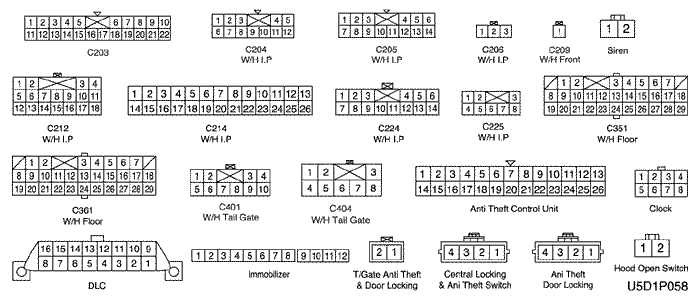

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


d. SPLICE PACK

s101

Display graphicTranslations of text in graphics


s202

Display graphicTranslations of text in graphics


s301

Display graphicTranslations of text in graphics


sm
