22. AUDIO CIRCUIT

1) w/o rds

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C202 (6 Pin, White) I/P Fuse Block – Roof Front the I/P Fuse Block
C203 (22 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C204 (12 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C209 (1 Pin, Colorless) I/P Fuse Block – Front Behind the I/P Fuse Block
C223 (10 Pin, White) Floor – IP Under the I/P Fuse Block
C351 (29 pin, White) Floor – Co-Driver Door Inside Light 'A' Pillar
C361 (29 Pin, White) Floor – Driver Door Inside Right 'A' Pillar
S206 (Violet) IP Rear Left Instrument Panel
G202 IP Rear Right Ashtray

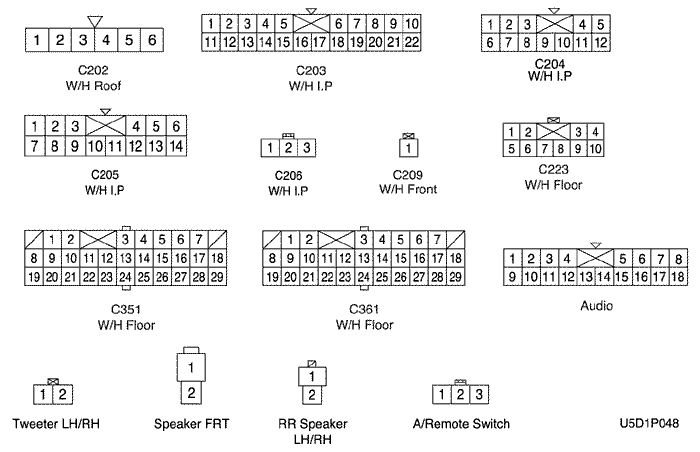

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

s206

Display graphicTranslations of text in graphics


2) w/ rds

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C202 (6 Pin, White) I/P Fuse Block – Roof Front the I/P Fuse Block
C203 (22 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C204 (12 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C205 (14 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C206 (3 Pin, Brown) I/P Fuse Block – IP Front the I/P Fuse Block
C209 (1 Pin, Colorless) I/P Fuse Block – Front Behind the I/P Fuse Block
C223 (10 Pin, White) Floor – IP Under the I/P Fuse Block
C351 (29 pin, White) Floor – Co-Driver Door Inside Light 'A' Pillar
C361 (29 Pin, White) Floor – Driver Door Inside Right 'A' Pillar
S206 (Violet) IP Rear Left Instrument Panel
G202 IP Rear Right Ashtray

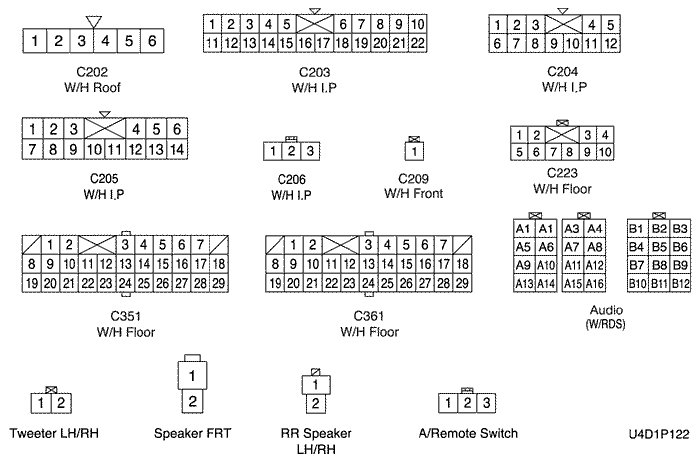

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

s206

Display graphicTranslations of text in graphics
