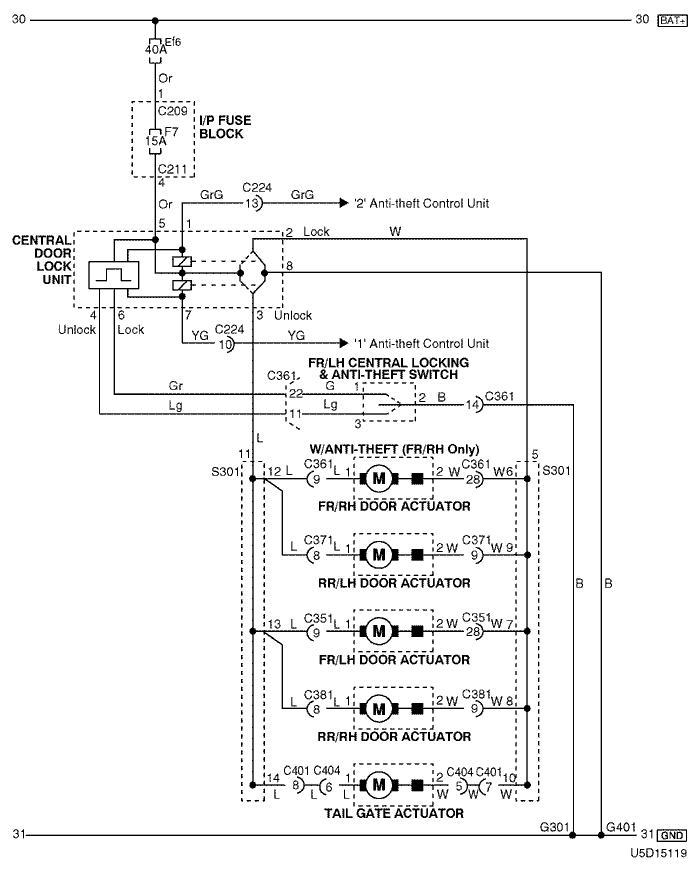

electrical wiring diagram 2005 tacuma-rezzo 17. CENTRAL DOOR LOCKING SYSTEM CIRCUIT
17. CENTRAL DOOR LOCKING SYSTEM CIRCUIT
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C209 (1 Pin, Colorless) | I/P Fuse Block – Front | Behind the I/P Fuse Block |
| C211 (12 Pin, White) | I/P Fuse Block – Floor | Behind the I/P Fuse Block |
| C215 (16 Pin, White) | Floor – Front | Under the I/P Fuse Block |
| C224 (14 Pin, White) | IP – Floor | Under the Door Lock Unit |
| C351 (29 Pin, White) | Floor – Co-Driver Door | Inside Light 'A' Pillar |
| C361 (29 Pin, White) | Floor – Driver Door | Inside Right 'A' Pillar |
| C371 (11 Pin, White) | Floor – Rear Light Door | Inside Light 'B' Pillar |
| C381 (11 Pin, White) | Floor – Rear Right Door | Inside Right 'B' Pillar |
| C401 (10 Pin, White) | Tailgate – Floor | Behind the Rear Quarter Glass |
| C404 (8 Pin, White) | Tailgate – Tailgate, AUX | Left Under Tailgate Behind the Tail Lamp |
| S301 (Black) | Floor | Under the Driver Crossmember Panel |
| G301 | Floor | Under the Driver Room Floor |
| G401 | Floor | Left the Trunk Room Under the Tail Lamp |

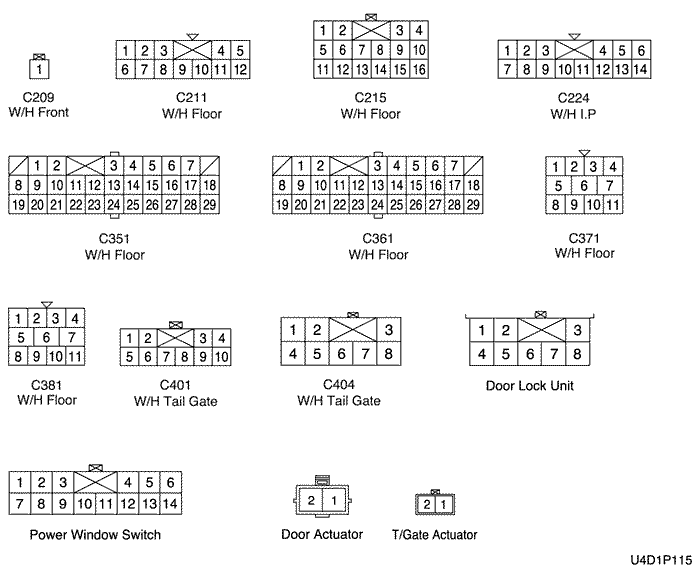

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s301
sm
