electrical wiring diagram 2005 tacuma-rezzo 16. HORN & MIRROR HEATING SYSTEM CIRCUIT

Tacuma-Rezzo

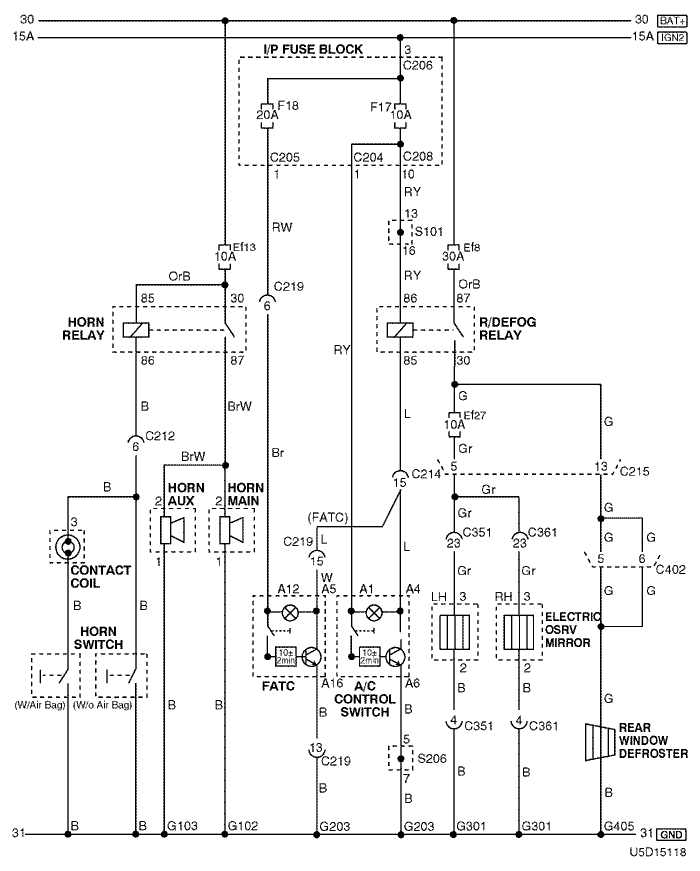

16. HORN & MIRROR HEATING SYSTEM CIRCUIT

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C204 (12 Pin, White)	I/P Fuse Block – IP	Front the I/P Fuse Block
C205 (14 Pin, White)	I/P Fuse Block – IP	Front the I/P Fuse Block
C206 (3 Pin, Brown)	I/P Fuse Block – IP	Front the I/P Fuse Block
C208 (14 Pin, White)	I/P Fuse Block – Front	Behind the I/P Fuse Block
C212 (18 Pin, Blue)	Front – IP	Left Upper the Driver Leg Room
C214 (26 Pin, Yellow)	Front – IP	Left Upper the Driver Leg Room
C215 (16 Pin, White)	Floor – Front	Under the I/P Fuse Block
C219 (15 Pin, White)	IP – FATC	Upper the Evaporator Housing
C351 (29 pin, White)	Floor – Co-Driver Door	Inside Light 'A' Pillar
C361 (29 pin, White)	Floor – Driver Door	Inside Right 'A' Pillar
C402 (6 Pin, White)	Tailgate – Floor	Behind the Rear Quarter Glass
S101 (White)	Front	Inside the Engine Fuse Block
S206 (Violet)	IP	Rear Left Instrument Panel
G102	Front	Behind the Left Headlamp
G103	Front	Behind the Right Headlamp
G203	IP	Under Right Ashtray
G301	Floor	Under the Driver Room Floor
G405	Tailgate, Aux	Under the Rear Wiper Motor

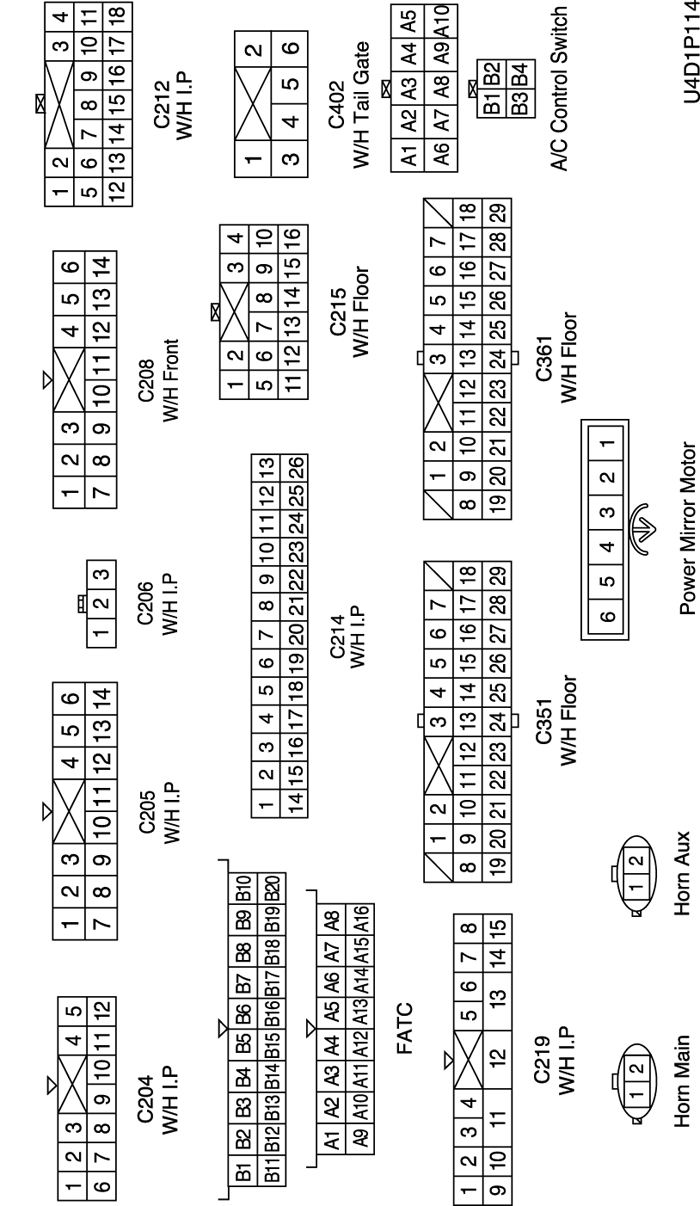

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

d. SPLICE PACK

s101

s206
