15. LAMP (ROOM & TRUNK ROOM), TAIL GATE OPEN SWITCH & DOOR WARNING LAMP CIRCUIT
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C202 (6 Pin, White) | I/P Fuse Block – Roof | Front the I/P Fuse Block |
| C203 (22 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C205 (14 Pin, White) | I/P Fuse Block – IP | Front the I/P Fuse Block |
| C209 (1 Pin, Colorless) | I/P Fuse Block – Front | Behind the I/P Fuse Block |
| C210 (18 Pin, White) | I/P Fuse Block – Floor | Behind the I/P Fuse Block |
| C211 (12 Pin, White) | I/P Fuse Block – Floor | Behind the I/P Fuse Block |
| C401 (10 Pin, White) | Tailgate – Floor | Behind the Rear Quarter Glass |
| C404 (8 Pin, White) | Tailgate – Tailgate, AUX | Left Under Tailgate Behind the Tail Lamp |
| G204 | Roof | Left Upper 'A' Pillar |
| G405 | Tailgate, Aux | Under the Rear Wiper Motor |

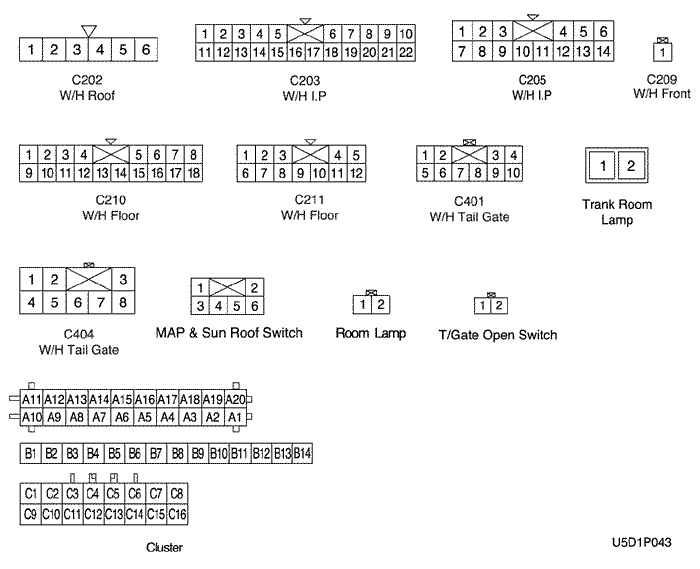

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
