electrical wiring diagram 2005 tacuma-rezzo 14. ILLUMINATION(ASHTRAY & CIGARETTE LIGHTER), GLOVE BOX LAMP & CLOCK CIRCUIT

Tacuma-Rezzo

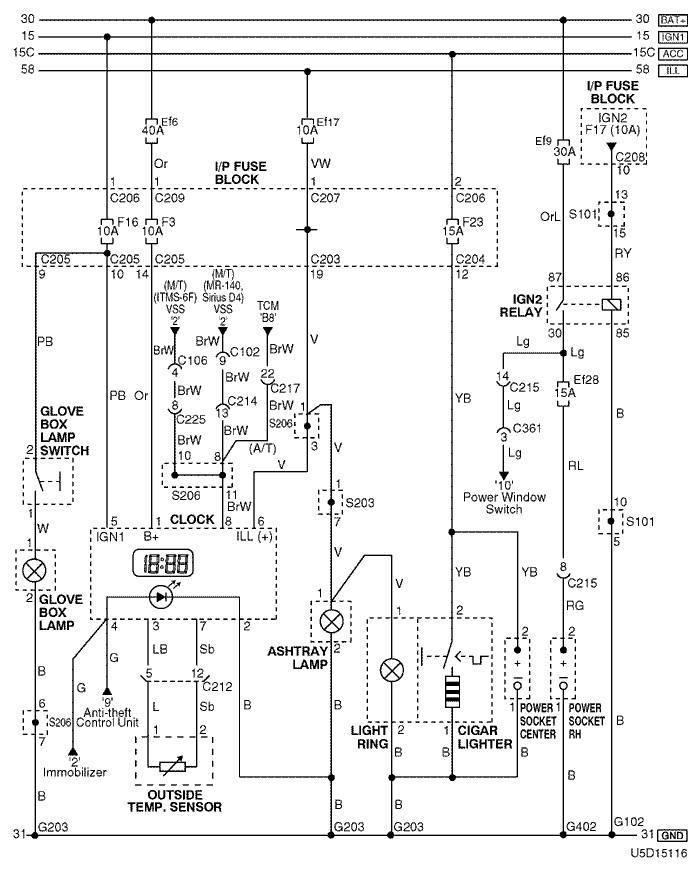

14. ILLUMINATION(ASHTRAY & CIGARETTE LIGHTER), GLOVE BOX LAMP & CLOCK CIRCUIT

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C102 (16 Pin, Black)	Engine – Front	Behind the Left Headlamp (MR-140, Sirius D4)
C106 (16 pin, Black)	Engine - ECM	Right Upper The Driver Leg Room
C203 (22 Pin, White)	I/P Fuse Block – IP	Front the I/P Fuse Block
C204 (12 Pin, White)	I/P Fuse Block – IP	Front the I/P Fuse Block
C205 (14 Pin, White)	I/P Fuse Block – IP	Front the I/P Fuse Block
C206 (3 Pin, Brown)	I/P Fuse Block – IP	Front the I/P Fuse Block
C207 (22 Pin, White)	I/P Fuse Block – Front	Behind the I/P Fuse Block
C208 (14 Pin, White)	I/P Fuse Block – Front	Behind the I/P Fuse Block
C209 (1 Pin, Colorless)	I/P Fuse Block – Front	Behind the I/P Fuse Block
C212 (18 Pin, Blue)	Front – IP	Left Upper the Driver Leg Room
C214 (26 Pin, Yellow)	Front – IP	Left Upper the Driver Leg Room
C215 (16 Pin, White)	Floor – Front	Under the I/P Fuse Block
C217 (22 Pin, White)	IP – TCM	Center Upper the Driver Leg Room
C225 (8 Pin, White)	IP – ECM	Center Upper The Driver Leg Room
C361 (29 Pin, White)	Floor – Driver Door	Inside Right 'A' Pillar
S101 (White)	Front	Inside the Engine Fuse Block
S203 (Orange)	IP	Rear Center Instrument Panel
S206 (Violet)	IP	Rear Left Glove Box
G102	Front	Behind the Left Headlamp
G203	IP	Under Right Ashtray
G402	Floor	Right the Trunk Room Under the Tail Lamp

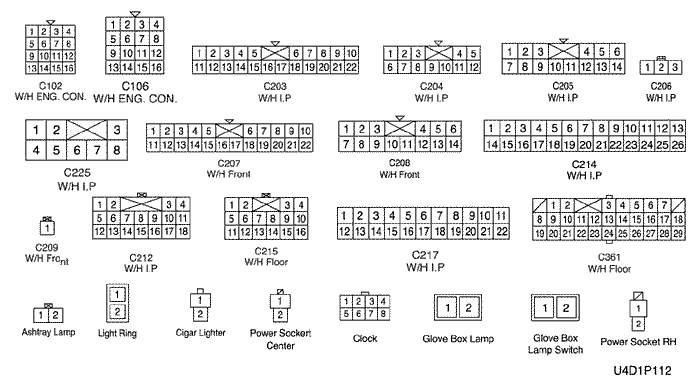

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

d. SPLICE PACK

s101

s203

s206
